P
RODUCT OVERVIEW

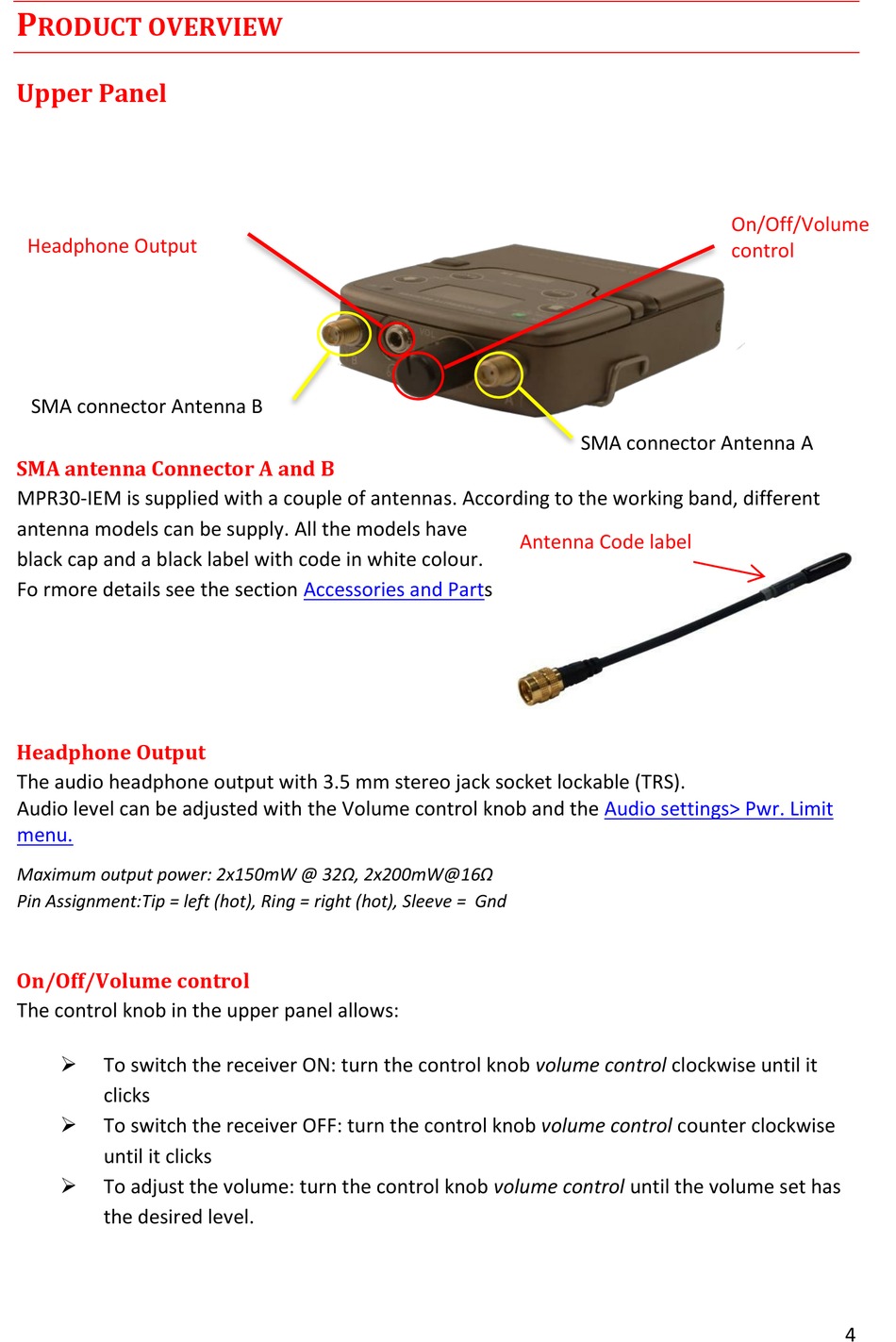

Upper Panel

Headphone Output
SMA connector Antenna B
SMA antenna Connector A and B
MPR30-IEM is supplied with a couple of antennas. According to the working band, different
antenna models can be supply. All the models have
black cap and a black label with code in white colour.
Fo rmore details see the section
Headphone Output
The audio headphone output with 3.5 mm stereo jack socket lockable (TRS).
Audio level can be adjusted with the Volume control knob and the
menu.
Maximum output power: 2x150mW @ 32Ω, 2x200mW@16Ω
Pin Assignment:Tip = left (hot), Ring = right (hot), Sleeve = Gnd
On/Off/Volume control
The control knob in the upper panel allows:

To switch the receiver ON: turn the control knob volume control clockwise until it
clicks

To switch the receiver OFF: turn the control knob volume control counter clockwise
until it clicks

To adjust the volume: turn the control knob volume control until the volume set has
the desired level.
Accessories and Parts
SMA connector Antenna A
Antenna Code label
Audio settings> Pwr. Limit
On/Off/Volume
control
4
