MPR50 is a compact true diversity receiver designed for professional in-ear monitoring
applications. This receiver features a real TRUE DIVERSITY configuration along with a unique
wideband tuning range up to 232 MHz. Audio processing can be Stereo MPX with mix-mode
function or mono FM IFB mode.
The output audio stage is especially design to have maximum audio peak-dynamic of 200 mW.
MPR50-IEM is designed to be:

"easy & quick to use" thanks to
o
automatic setup functions (i.e. frequencies, scan for best channels),
o
remote configuration utilities (thru infrared or micro-USB interface) using
Wisycom Manager application
o
OLED display with intuitive context menu navigation

"extremely flexible", with an incredible frequency agility up to 232MHz
o
MPR50-IEM-N: 470/700 MHz (TV ch 21/49)
o
MPR50-IEM-M:566/798 MHz (TV ch 33/61)

"best in class performances", thanks to the latest Wisycom technology the unit has
extreme RF sensitivity and immunity and superb audio quality

"a light, robust and ergonomic design"

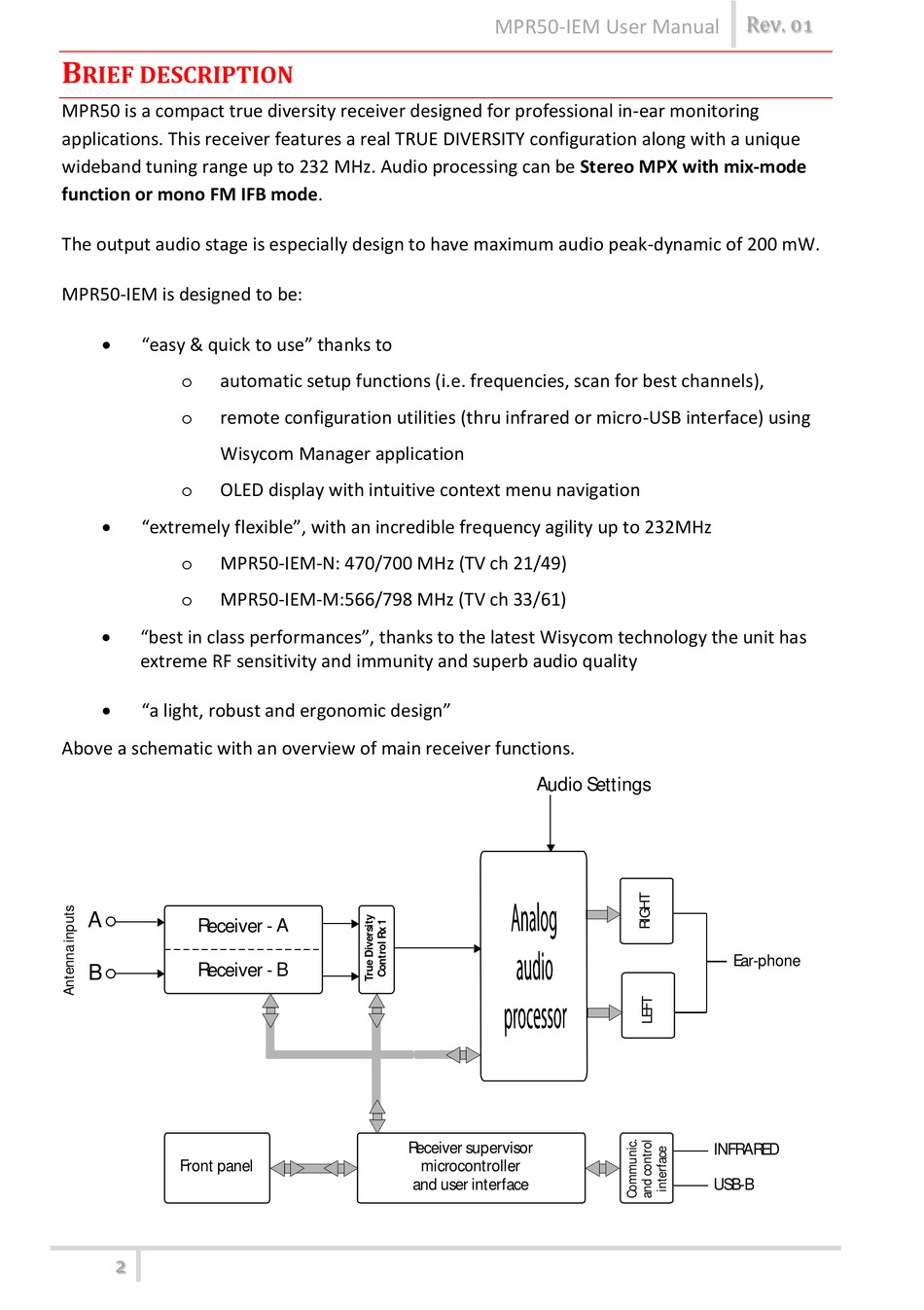

Above a schematic with an overview of main receiver functions.
A
Receiver - A
Receiver - B
B
Front panel
2
MPR50-IEM User Manual
Audio Settings
Receiver supervisor
microcontroller
and user interface
Rev. 01
Ear-phone
INFRARED
USB-B
