SFP Ports

The IE-MultiWay SFP ports support gigabit fiber SFPs and 100Mbps fiber SFPs, with

or without Digital Diagnostics Monitoring Information (DDMI) as well as copper SFPs

available in 10/100/1000Mbps and 1000Mbps. DDMI statistics provide real-time

access to transceiver operating parameters such as voltage, temperature, laser bias

current, and both transmitter and receive optical power. This information can be

accessed through the management system. The SFPs must be MSA-compliant, and

can be purchased from IMC Networks or other suppliers.

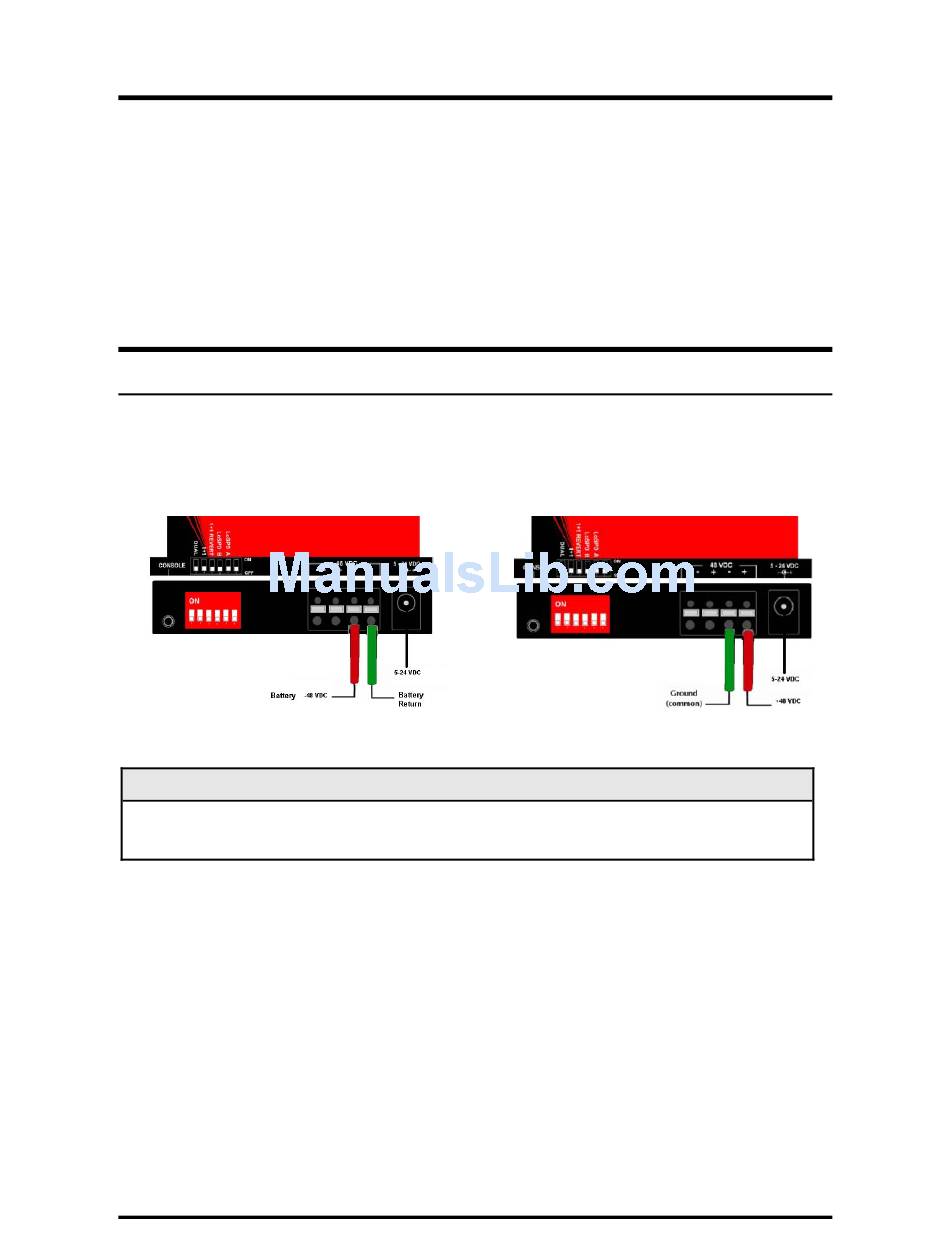

The IE-MultiWay can also be powered with the DC terminal block. From a power

source, connect to any one positive and any one negative terminal on the IE-

MultiWay.

TELCO (-48)

When using stranded wire, the leads should be tinned. The DC terminal block is

protected against polarity mis-wiring. AWG24 is recommended.

NOTE
