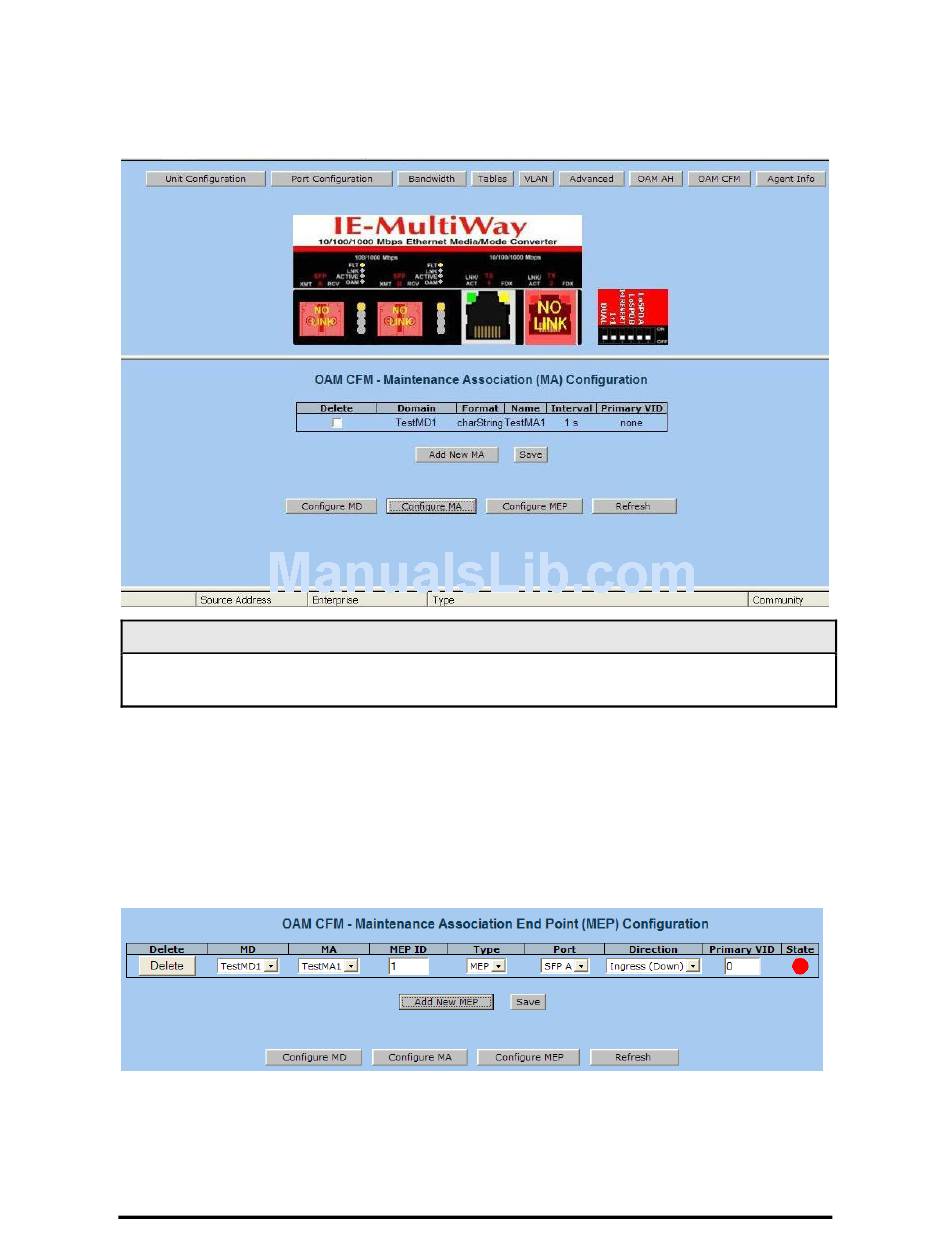

For the first configuration, create an MA after the MD. Select "Configure MA" to
display the OAM CFM Maintenance Association Configuration screen as shown
below:
2
iView will automatically display this page if there is no MA yet defined when the user attempts
to access any other menu control.
Select the Domain and Format, and enter the MA name in the Name field. Use
Interval to select the interval for continuity check messaging, and choose Primary
VID, if applicable. To cancel the MA without saving, select Delete. To store the MA,
select Save and the screen is refreshed.
For a first time configuration, the next step is to create a MEP. Select Add New MEP
to display the OAM CFM MEP configuration page as shown below:
Select the MD, MA, enter the MEP ID, select the appropriate type, port and
direction, and select the Primary VID, if applicable. To cancel the MEP without
saving, select Delete. To store the MEP, select Save and the screen is refreshed.
NOTE
