IE-MiniFiberLinX-II
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IE-MiniFiberLinX-II and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IMC Networks IE-MiniFiberLinX-II

Summary of Contents for IMC Networks IE-MiniFiberLinX-II

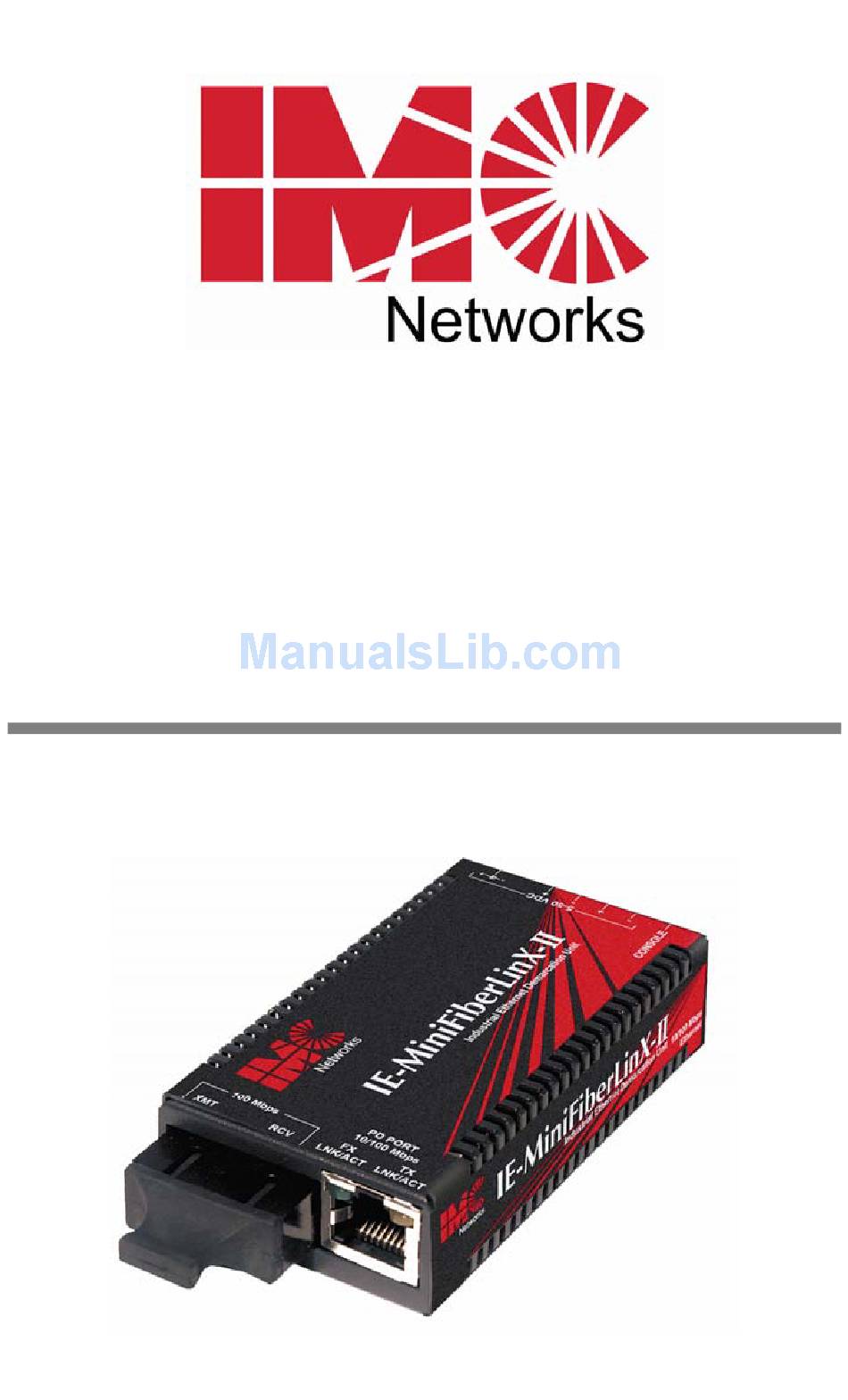

  • Page 1 IE-MiniFiberLinX-II Operation Manual...

  • Page 2: Fcc Radio Frequency Interference Statement

    At its option, IMC Networks will repair or replace at no charge the product which proves to be defective within such warranty period. This limited warranty shall not apply if the IMC Networks product has been damaged by unreasonable use, accident, negligence, service or modification by anyone other than an authorized IMC Networks Service Technician or by any other causes unrelated to defective materials or workmanship.

  • Page 3: Table Of Contents

    Table of Contents FCC Radio Frequency Interference Statement ............ii Warranty........................ii About the IE-MiniFiberLinX-II..................4 About iView²......................4 About Features and Configuration ................5 LED Operation......................5 Powering Options .....................6 Product Applications ....................7 Modes of Operation....................8 Installation ......................11 Troubleshooting ......................11 Configuration ......................12 Auto-Cross Feature for Twisted Pair Connection............12 Mini-Serial Port .......................12...

  • Page 4: About The Ie-Minifiberlinx-Ii

    The IE-MiniFiberLinX-II includes one 100 Mbps fiber port (OPTICS), one 10/100 twisted pair data port (DATA), and one auxiliary port for serial configuration (with the included adapter). The twisted pair port can auto-negotiate or be set manually for 10 or 100 Mbps, and half or full-duplex.

  • Page 5: About Features And Configuration

    ABOUT ICONFIG iConfig is an in-band utility created by IMC Networks, used for SNMP configuration for IMC Networks’ SNMP-manageable devices. The iConfig feature allows you to perform the following: • Set an IP address, subnet mask and default gateway •...

  • Page 6: Powering Options

    Powering Options The IE-MiniFiberLinX-II powering options include AC and DC power as well as Power over Ethernet, functioning as a PD compliant with 802.3af. The DC Terminal block allows you to daisy-chain one IE-MiniFiberLinX-II to another. To use the DC terminal block, connect to any one positive and any one negative terminal from a power source.

  • Page 7: Product Applications

    Product Applications The IE-MiniFiberLinX-II comes with a variety of features for different network environments. When used with different types of IMC Products, some features can be enabled, such as extra tagging or “Q-in-Q”, and different network setups come with different requirements. The network setup example below shows one deployment scenario with a full range of management options.

  • Page 8: Modes Of Operation

    Modes of Operation The following are application examples of Operation Modes for the IE-MiniFiberLinX-II. There are six modes of operation that can be configured through the Serial/Telnet session. All modes of operation block management traffic from the user network on the Data port.
  • Page 9 Mode Three - Transparency with Tagged Management This mode will pass all tagged and untagged customer traffic. Management traffic must be tagged. It does not add or remove tags. Mode Four - Transparency with Extra Tagging (or Q-in-Q) This mode is designed to either pass all customer traffic with the defined extra tag (Q- in-Q) or add and remove the defined extra tag (Q-in-Q) on all customer traffic.
  • Page 10 Mode Five - VLAN Filter This mode is designed to only pass traffic with any of the 32 tags that have been identified in the user-defined table. No untagged traffic can pass and management traffic must be tagged. No tags are added or removed from the traffic. NOTE VLAN IDs can be any number between 1 and 4,094.

  • Page 11: Installation

    [40 km]). Troubleshooting If a fiber connection cannot be established, perform the following to make sure that the fiber transceivers on the IE-MiniFiberLinX-II are not over/under driving the fiber receivers: • Make sure the fiber wavelength on both connected devices match (i.e. both are 1310 nm single-mode fiber).

  • Page 12: Configuration

    Auto-Cross Feature for Twisted Pair Connection The twisted pair ports on the IE-MiniFiberLinX-II includes Auto-Cross, a feature that automatically selects between a crossover workstation or straight-through connection depending on the connected device.

  • Page 13: Software Configuration

    Software Configuration The following table presents port options configurable from iView² or from a serial/Telnet session. Refer to the iView² section later in this chapter or the iView² Help file for more information. For information on configuring VLANs, refer to the Serial Configuration/Telnet Session section in this chapter.

  • Page 14: Bandwidth Control

    In this mode, the port automatically negotiates for speed and duplex. The twisted pair port on the IE-MiniFiberLinX-II can also be manually set for 10 Mbps or 100 Mbps operation and for Half- or Full-Duplex (i.e. 10 Mbps Full-Duplex, 10 Mbps Half-Duplex, 100 Mbps Full-Duplex or 100 Mbps Half-Duplex).

  • Page 15: Serial Configuration/Telnet Session

    FiberAlert minimizes the problems associated with the loss of one strand of fiber. If a “receive” strand is unavailable, the IE-MiniFiberLinX-II notes the lost link and will stop transmitting data and the link signal on the fiber-optic link until a signal or link pulse is received.

  • Page 16: Main Configuration Screen

    Assign the IE-MiniFiberLinX-II an IP address before using a Telnet session (the default IP address is 10.10.10.10). All configurations performed using the serial port can also be performed using Telnet. Multiple accounts can be assigned with individual names and passwords.

  • Page 17: Command List

    NOTE Reboot the IE-MiniFiberLinX-II for changes to take effect. To reboot, type reboot at the prompt on the main configuration screen, or power cycle the chassis. If a Delete key is not available, use the F2 key. Any changes to the configuration may result in a momentary loss of connection.

  • Page 18: Password Protection For Serial Port Connections

    Password Protection for Serial Port Connections Password protection is provided for the serial configuration process by pressing P on the main configuration screen. Enter a password, keeping in mind that passwords are case-sensitive and must not exceed eight characters or include spaces, and press Enter.

  • Page 19: Deleting Community Strings

    Be sure to press E to end a serial port or Telnet/Hyperterminal session, before disconnecting the cable. This will stop the continuous stream of data to the serial port. Rebooting the Unit To reboot the IE-MiniFiberLinX-II, type reboot. Enabling/Disabling DHCP To toggle DHCP on the IE-MiniFiberLinX-II between enable and disable, press D.
  • Page 20 Additional Device-Specific Commands The IE-MiniFiberLinX-II also includes the following device-specific options. To access these options, perform the following: Press the space bar when in the Command List section of the Main Configuration screen (serial configuration/Telnet session). Type the name of the action (shown below) and press Enter.

  • Page 21: Port Configuration

    Port Configuration Serial/Telnet sessions display port status as well as allowing configuration of some port features. Type port and press Enter to be taken to the Port screen. From this screen, view the port speed, duplex and link status. --------------------- Port Status Values ------------------------- Optics Data Link Status Up Down Link Lost Cntr 0 0...
  • Page 22 Unit Control Settings Serial/Telnet sessions display unit status as well as allowing configuration of some of the IE-MiniFiberLinX-II features. Type unit and press Enter to be taken to the Unit screen. From this screen, view the settings for Flow Control, FiberAlert, LoopBack, Maximum Frame Size, and 802.1p Base Priority.
  • Page 23 Operational Mode Configuration As referenced in Product Applications, there are six modes of operation that can be configured through the Serial/Telnet session. All of the modes of operation will block management traffic on the Data port. The configuration screen is accessed by typing config and pressing Enter from the Additional Commands screen.
  • Page 24 Select Y on the initial config screen. Then, select Y when asked to select Extra Tags. When setting this operation mode, the question “Are Extra Tags left on the Data Port” should be answered NO for the remote IE-MiniFiberLinX-II and YES for the host connection.
  • Page 25 Optics and Data Ports. Management Vlan SNMP [111 ] [111 ] The table below displays how the settings are entered. VLAN Priority Tags Optical Data Tag2 Mgmt Tag1 (SNMP) Reboot Entering reboot will save settings and reboot the IE-MiniFiberLinX-II.
  • Page 26 IP and VLAN settings. Viewing Port Statistics To view port statistics on the IE-MiniFiberLinX-II, enter ifstats. This will open a screen displaying information on packets received and transmitted as defined by MIB-II standard RFC 1213.

  • Page 27: Downloading Files

    Press Enter to start downloading the file. Changing the System Name To change the MIB name of the IE-MiniFiberLinX-II as it appears on the network, type sysname and press Enter. Enter a new name, not exceeding 16 characters in length.

  • Page 28: About Dhcp

    User rights only allow viewing of status/settings but not changing of settings. About DHCP A DHCP client is built into the IE-MiniFiberLinX-II and disabled by default. If a DHCP server is present on the network, enable the DHCP client to initiate a dialogue with the server during the boot up sequence.
  • Page 29 The left side of the iView² screen will display the IMC Networks products on the network. Click the connection for the IE-MiniFiberLinX-II to open its iView² screen. The example shows a connection to a FiberLinX but this could vary depending on the connection.
  • Page 30 • Refresh - To refresh the iView² settings on any screen, click this button. The Configuration/Remote Screen Depending on whether the IE-MiniFiberLinX-II is being set up as a standalone or in a Host/Remote connection, the Configuration or Remote buttons will show a screen for...
  • Page 31 In addition to allowing setting changes on the IE-MiniFiberLinX-II, settings on the ports can also be changed from the Configuration/Remote screen.
  • Page 32 The Agent Info Screen Information about the SNMP Agent software managing the IE-MiniFiberLinX-II is contained on this screen.

  • Page 33: Specifications

    Electrical Equipment Designed for use within Certain Voltage Limits (73/23/EEC). Certified to Safety of Information Technology Equipment, Including Electrical Business Equipment. For further details, contact IMC Networks. Class 1 Laser product, Luokan 1 Laserlaite, Laser Klasse 1, Appareil A’Laser de Classe 1...
  • Page 34 European Directive 2002/96/EC (WEEE) requires that any equipment that bears this symbol on product or packaging must not be disposed of with unsorted municipal waste. This symbol indicates that the equipment should be disposed of separately from regular household waste. It is the consumer’s responsibility to dispose of this and all equipment so marked through designated collection facilities appointed by government or local authorities.
  • Page 35 The information in this document is subject to change without notice. IMC Networks assumes no responsibility for any errors that may appear in this document. IE-MiniFiberLinX-II is a trademark of IMC Networks. Other brands or product names may be trademarks and are the property of their respective companies.
