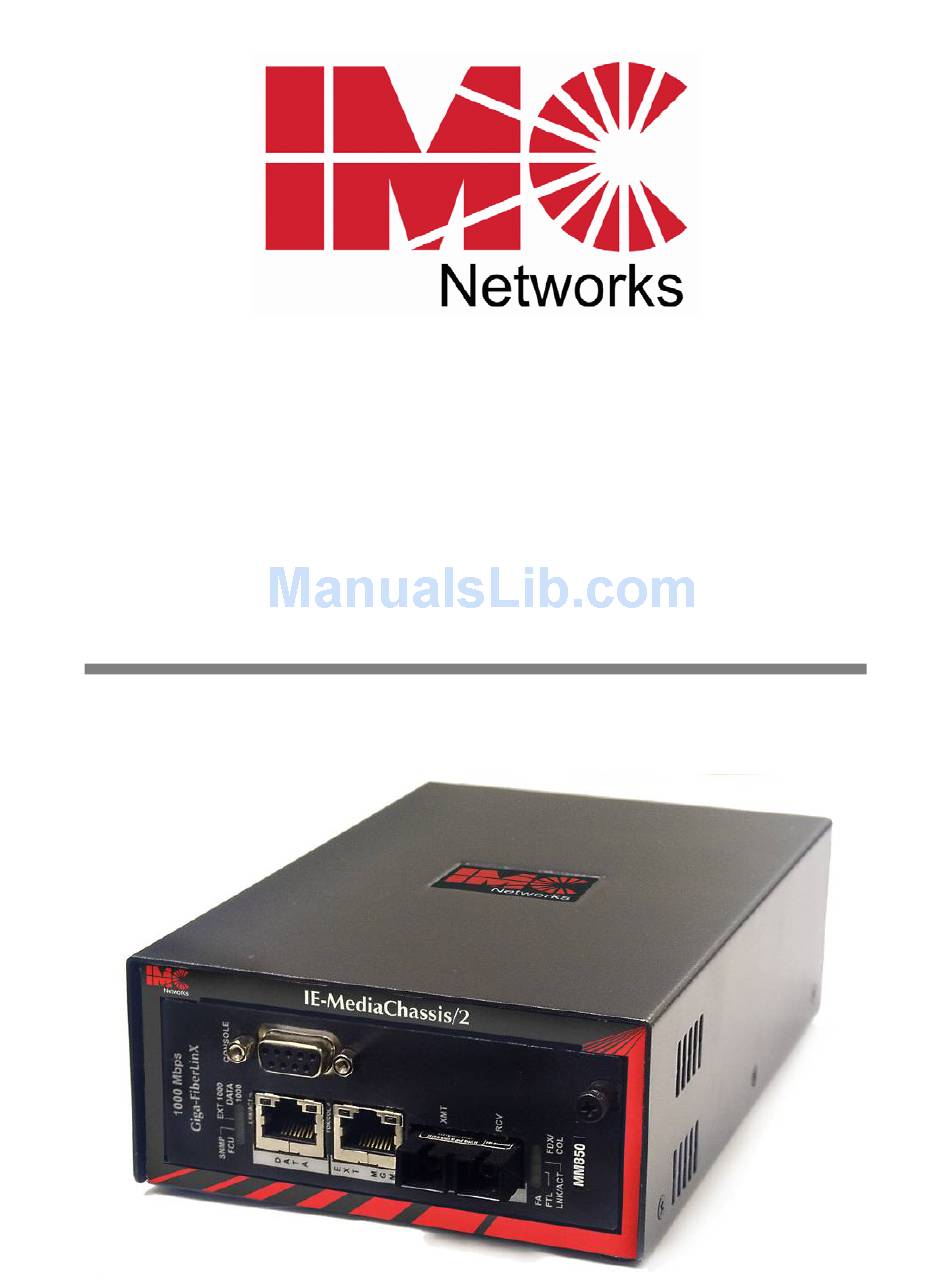

- Page 1 IE-MediaChassis/2 (DC) Operation Manual...
-
Page 2: Fcc Radio Frequency Interference Statement
At its option, IMC Networks will repair or replace at no charge the product which proves to be defective within such warranty period. This limited warranty shall not apply if the IMC Networks product has been damaged by unreasonable use, accident, negligence, service or modification by anyone other than an authorized IMC Networks Service Technician or by any other causes unrelated to defective materials or workmanship. -
Page 3: Table Of Contents
Table of Contents FCC Radio Frequency Interference Statement ... ii Warranty... ii About the IE-MediaChassis/2 (DC)...1 Installing the IE-MediaChassis/2 (DC)...1 Configuring and Installing Modules...2 DC Power Supply Wiring Instructions...3 Rackmount Precautions...4 DC Power Supply Precautions...5 IMC Networks Technical Support...6 Specifications ...6 Electrostatic Discharge Precautions...7... -
Page 4: About The Ie-Mediachassis/2 (Dc)

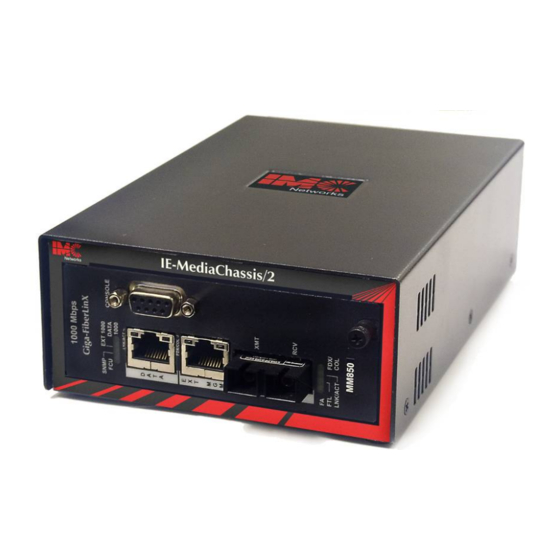

About the IE-MediaChassis/2 (DC) The IE-MediaChassis/2 (DC) is a stand-alone chassis for use with iMcV modules. As an unmanaged chassis, the IE-MediaChassis/2 (DC) supports two single-wide or one dual-wide iMcV module. All iMcV modules, with the exception of the SNMP management card, will function properly in this chassis. -
Page 5: Configuring And Installing Modules
Configuring and Installing Modules IMC Networks recommends turning the chassis power off before proceeding. To install an iMcV module, slide the module into the chassis until the module is firmly seated in the backplane. -
Page 6: Dc Power Supply Wiring Instructions
Alternatively, the chassis grounding jumper can be eliminated and the chassis ground connected at the power source. Incorrect wiring will result in chassis malfunction. The IE-MediaChassis/2 (DC) is compliant with Isolated Grounding Plane practices. The POSITIVE and NEGATIVE terminals are isolated from chassis ground and must have a ground reference at the power-sourcing equipment. -
Page 7: Rackmount Precautions
The DC supply source shall be located within the same premises as this equipment. Switching or disconnecting devices shall not be in the grounded circuit conductor between the DC source and the point of connection of the grounding electrode conductor. Rackmount Precautions Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may... -
Page 8: Dc Power Supply Precautions
DC Power Supply Precautions The following precautions must be observed when installing the chassis model with an internal DC power supply. Check nameplate ratings to ensure there is no overloading of supply circuits that could effect over current protection and supply wiring. In addition, the following must be observed: Connect the equipment to a 35 to 75 VDC power source that is electrically isolated from the alternating current source. -
Page 9: Imc Networks Technical Support
IMC Networks Technical Support Tel: (949) 465-3000 or (800) 624-1070 (in the U.S. and Canada); +32-16-550880 (Europe) Fax: (949) 465-3020 E-Mail: techsupport@imcnetworks.com Web: www.imcnetworks.com Specifications Environmental Operating Temperature: -31° F to 176° F (-35° C to 80° C) Storage Temperature: -67° F to 257° F (-55° C to 125° C) -
Page 10: Electrostatic Discharge Precautions
Electrostatic Discharge Precautions Electrostatic discharge (ESD) can cause damage to your add-in modules. Always observe the following precautions when installing or handling an add-in module or any board assembly. Do not remove unit from its protective packaging until you’re ready to install it. Wear an ESD wrist grounding strap before handling any module or component. -
Page 11: Safety Certifications
Voltage Limits (2006/95/EC). Certified to Safety of Information Technology Equipment, Including Electrical Business Equipment. For further details, contact IMC Networks. European Directive 2002/96/EC (WEEE) requires that any equipment that bears this symbol on product or packaging must not be disposed of with unsorted municipal waste. - Page 12 The information in this document is subject to change without notice. IMC Networks assumes no responsibility for any errors that may appear in this document. IE-MediaChassis/2 is a trademark of IMC Networks. Other brands or product names may be trademarks and are the property of their respective companies.
