Summary of Contents for IMC Networks IE–ModeConverter

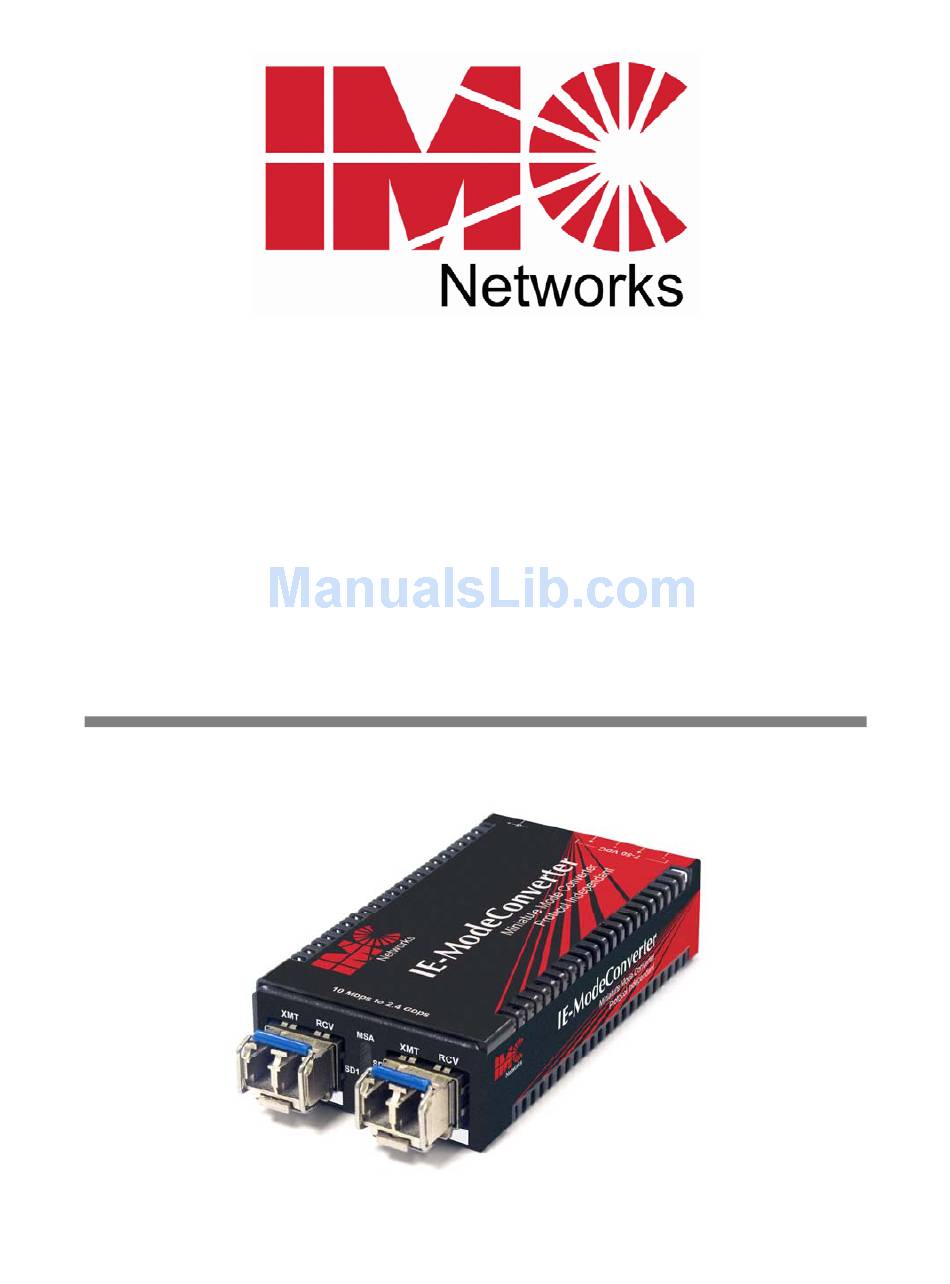

- Page 1 IE–ModeConverter Operation Manual...
-
Page 2: Warranty
IMC Networks' instructions and directions for a period of six (6) years after the original date of purchase. IMC Networks warrants to the original end- user purchaser that all SFPs shall be free from defects in materials and workmanship under normal and proper use in accordance with IMC Networks' instructions and directions for a period of one (1) year after the original date of purchase. -
Page 3: Table Of Contents
SFP Port Requirements..................2 DIN Rail Mounting.....................2 Powering the IE-ModeConverter ................3 DC Terminal Block Option.................3 Cascading DC Power ..................4 LED Operation....................4 DC Power Supply Precautions................5 IMC Networks Technical Support...............6 Specifications .....................6 Standards/Compliance ..................6 Fiber Optic Cleaning Guidelines.................7 Electrostatic Discharge Precautions..............7 Safety Certifications....................8... -

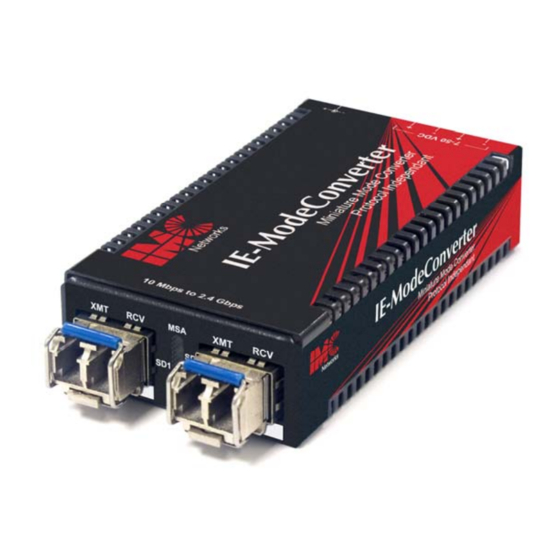

Page 4: About Ie-Modeconverter
The IE-ModeConverter provides the ability to change optical transport characteristics using easy-to-install SFP devices. This mix-and-match functionality is only limited by the available IMC Networks’ SFP units. For more information about SFPs, visit https://www.imcnetworks.com/Products/Small_Form_Factor_Pluggable.cfm The key features of the IE-ModeConverter are •... -
Page 5: Installing The Ie-Modeconverter
Installing the IE-ModeConverter The IE-ModeConverter installs anywhere as a standalone, table-top device or on a DIN rail. As a standalone device, install it in locations with limited space. If multiple connections are required, use an IE-PowerTray/18 enclosure, (sold separately). The tray allows for 18 conversions in a 1.5 rack unit of space. The units can also be powered by daisy-chaining DC power (refer to Cascading DC Power page 4). -
Page 6: Powering The Ie-Modeconverter
Powering the IE-ModeConverter The IE-ModeConverter requires an external DC power source and has three powering options: • Universal AC power adapter with country specific clip (not included with module only version). • User supplied LPS DC power via a four-position DC power block. •... -
Page 7: Cascading Dc Power
One or both SFPs are One or both SFPs Both SFPs are installed with not installed or not are not an IMC IMC Networks’ devices at detected. The TX Networks’ device. the same speed setting. inhibit must not be The may still... -
Page 8: Dc Power Supply Precautions
DC Power Supply Precautions The following precautions must be observed when installing the chassis model with an internal DC power supply. Check nameplate ratings to ensure there is no overloading of supply circuits that could effect overcurrent protection and supply wiring. In addition, the following must be observed: Connect the equipment to a 35 to 50 VDC power source that is electrically isolated from the alternating current source. -
Page 9: Imc Networks Technical Support
IMC Networks Technical Support Tel: (949) 465-3000 or (800) 624-1070 (in the U.S. and Canada); +32-16-550880 (Europe) Fax: (949) 465-3020 E-Mail: techsupport@imcnetworks.com Web: www.imcnetworks.com Specifications Operating Temperature: -31° to 158° F (-35° to 70° C) Storage Temperature: -49° to 185° F (-45° to 85° C) Shipping Weight: 0.25 lbs (0.11 kg) -
Page 10: Fiber Optic Cleaning Guidelines
Dust caps are installed at IMC Networks to ensure factory-clean optical devices. These protective caps should not be removed until the moment of connecting the fiber cable to the device. Should it be necessary to disconnect the fiber device, reinstall the protective dust caps. -
Page 11: Safety Certifications
Electrical Equipment Designed for use within Certain Voltage Limits (73/23/EEC). Certified to Safety of Information Technology Equipment, Including Electrical Business Equipment. For further details, contact IMC Networks. Class 1 Laser product, Luokan 1 Laserlaite, Laser Klasse 1, Appareil A’Laser de Classe 1... - Page 12 © 2008 IMC Networks. All rights reserved. The information in this document is subject to change without notice. IMC Networks assumes no responsibility for any errors that may appear in this document. IE-ModeConverter is a trademark of IMC Networks. Other brands or product names may be trademarks and are the property of their respective companies.
