IE-MiniMc
Operation Manual

Advertisement

Table of Contents
loading

Related Manuals for IMC Networks IE-MiniMc

Summary of Contents for IMC Networks IE-MiniMc

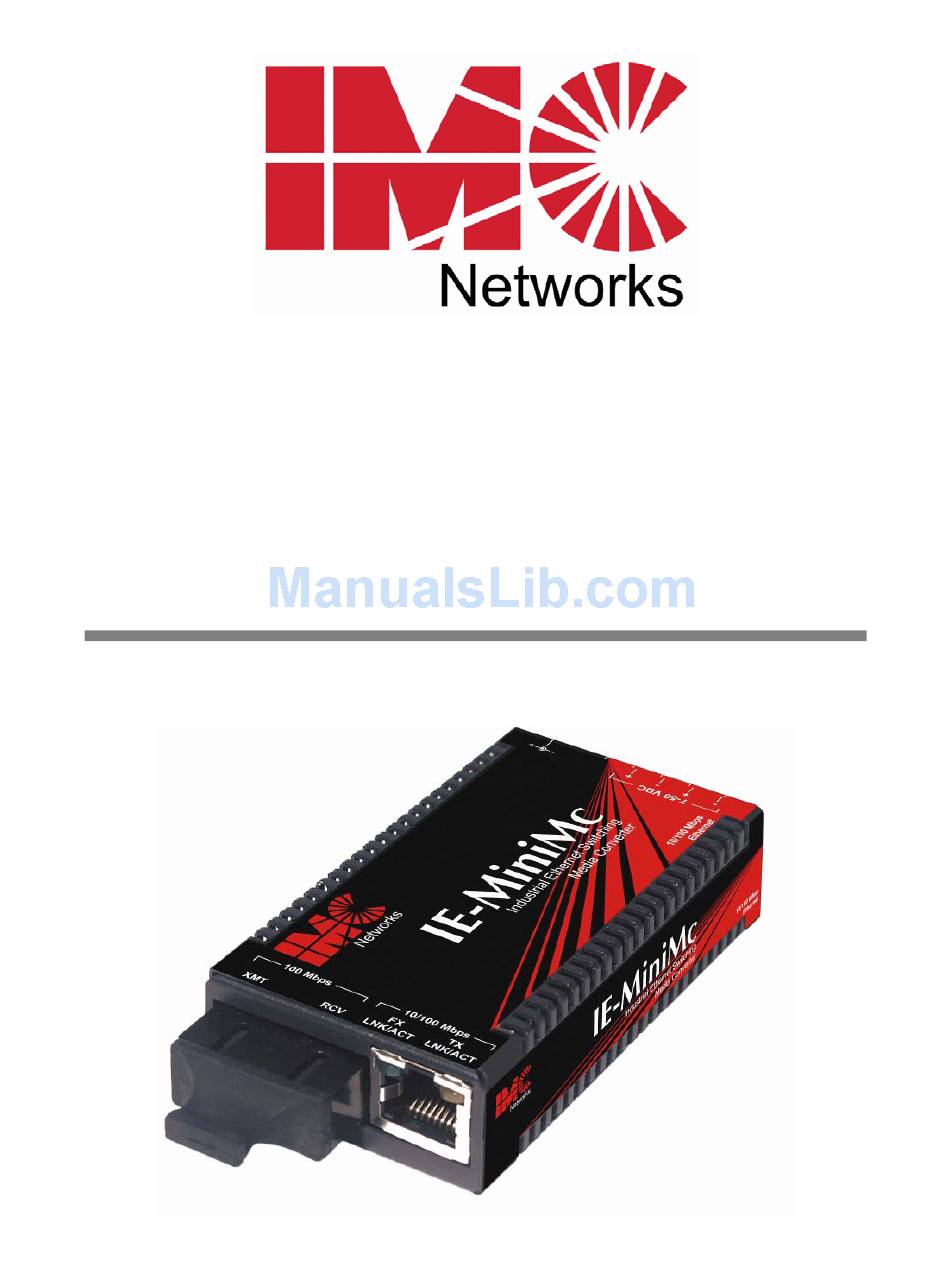

  • Page 1 IE-MiniMc Operation Manual...

  • Page 2: Fcc Radio Frequency Interference Statement

    FCC Radio Frequency Interference Statement Class A (using DC terminal power or Power Over Ethernet (POE)) This equipment has been tested and found to comply with the limits for a Class A computing device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 3: Warranty

    At its option, IMC Networks will repair or replace at no charge the product which proves to be defective within such warranty period. This limited warranty shall not apply if the IMC Networks product has been damaged by unreasonable use, accident, negligence, service or modification by anyone other than an authorized IMC Networks Service Technician or by any other causes unrelated to defective materials or workmanship.

  • Page 4: Table Of Contents

    FCC Radio Frequency Interference Statement .............i Warranty......................ii About the IE-MiniMc..................1 Installing the IE-MiniMc..................1 Hardware Mounting Options ................1 Powering the IE-MiniMc..................2 About Power Over Ethernet (PoE) and IE-MiniMc..........2 LED Operation....................2 DC Terminal Block Wiring Instructions...............3 Cascading DC Power ..................3 IMC Networks Technical Support...............4 Specifications .....................4 Fiber Optic Cleaning Guidelines.................5...

  • Page 5: About The Ie-Minimc

    • A PowerTray/18 for high density applications Hardware Mounting Options The IE-MiniMc can be mounted on a DIN rail or using wall mount brackets (shown below). DIN rail clips (part number 806-39105) and wall mount brackets (part number 895- 39229) are available for purchase through an IMC Networks Distributor.

  • Page 6: Powering The Ie-Minimc

    IE-PowerTray/18 for Rack Mounting About Power Over Ethernet (PoE) and IE-MiniMc Power Over Ethernet technology allows the IE-MiniMc to be a Powered Device (PD) and draw power when connected to Power Sourcing Equipment (PSE). Power Sourcing Equipment distributes an electrical current across existing copper data cabling.

  • Page 7: Dc Terminal Block Wiring Instructions

    Cascading DC Power When installing multiple IE-MiniMc units on a DIN rail, the end user can connect to one DC input source, and then cascade from one DC block to the next, until reaching the maximum current available.

  • Page 8: Imc Networks Technical Support

    7 to 50 VDC, 1 to 0.1A DC jack 5 VDC When IE-MiniMc uses PoE technology to be a PD, the maximum supply voltage is 50V AC Wall Adapter 100 to 240 ±10% VAC input, 5 VDC output, 2A max.

  • Page 9: Fiber Optic Cleaning Guidelines

    Dust caps are installed at IMC Networks to ensure factory-clean optical devices. These protective caps should not be removed until the moment of connecting the fiber cable to the device. Should it be necessary to disconnect the fiber device, reinstall the protective dust caps.

  • Page 10: Electrostatic Discharge Precautions

    Electrostatic Discharge Precautions Electrostatic discharge (ESD) can cause damage to any product, add-in modules or stand alone units, containing electronic components. Always observe the following precautions when installing or handling these kinds of products Do not remove unit from its protective packaging until ready to install. Wear an ESD wrist grounding strap before handling any module or component.

  • Page 11: Safety Certifications

    Directive on Electrical Equipment Designed for use within Certain Voltage Limits (2006/95/EC). Certified to Safety of Information Technology Equipment, Including Electrical Business Equipment. For further details, contact IMC Networks. Class 1 Laser product, Luokan 1 Laserlaite, Laser Klasse 1, Appareil A’Laser de Classe 1...
  • Page 12 The information in this document is subject to change without notice. IMC Networks assumes no responsibility for any errors that may appear in this document. IE-MiniMc is a trademark of IMC Networks. Other brands or product names may be trademarks and are the property of their respective companies.
