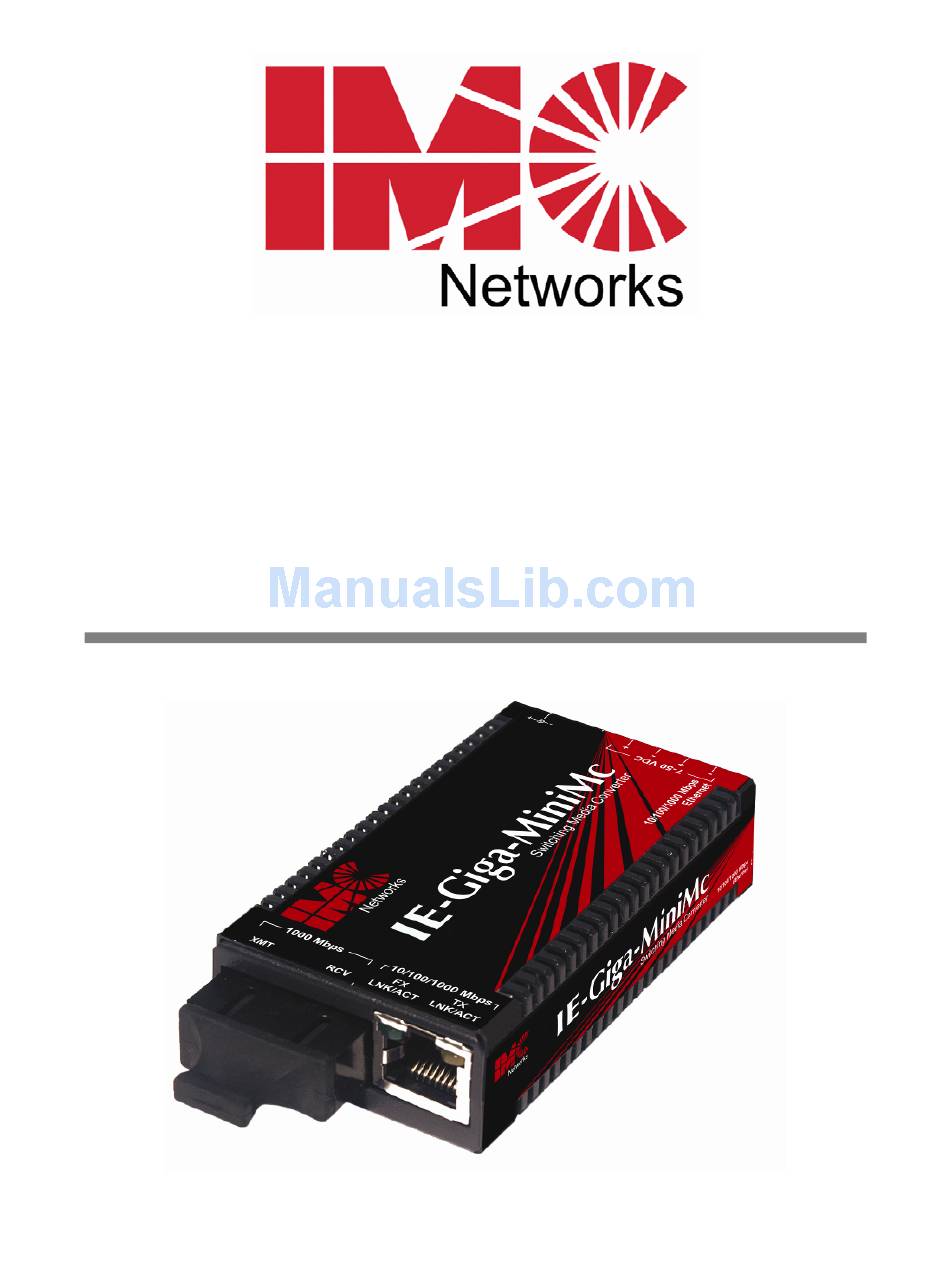

- Page 1 IE-Giga-MiniMc Operation Manual...
-
Page 2: Fcc Radio Frequency Interference Statement
At its option, IMC Networks will repair or replace at no charge the product which proves to be defective within such warranty period. This limited warranty shall not apply if the IMC Networks product has been damaged by unreasonable use, accident, negligence, service or modification by anyone other than an authorized IMC Networks Service Technician or by any other causes unrelated to defective materials or workmanship. -
Page 3: Table Of Contents
Table of Contents FCC Radio Frequency Interference Statement ............ii Warranty......................ii About the IE-Giga-MiniMc .................1 Led Operation ....................2 DC Power Supply Precautions................4 Specifications .....................5 IMC Networks Technical Support...............6 Fiber Optic Cleaning Guidelines.................7 Electrostatic Discharge Precautions..............7 Safety Certifications....................8... -
Page 4: About The Ie-Giga-Minimc
Installing the IE-Giga-MiniMc IE-Giga-MiniMc installs virtually anywhere: as a standalone, table-top device, on a DIN rail, or an IMC Networks PowerTray/18. As a standalone device, the end user can install IE-Giga-MiniMc in locations with extremely limited space. Also included are Velcro strips to attach the device to most surfaces. -
Page 5: Led Operation
The 4-terminal DC power block • IE-PowerTray/18 DC Terminal Block Wiring Instructions The IE-Giga-MiniMc can be powered via the DC terminal block. From a power source, connect to any one positive and any one negative terminal on IE-Giga- MiniMc. Connected to Chassis... -
Page 6: Din Rail Mounting
When using stranded wire, the leads must be tinned, and equivalent to a 16 AWG solid conductor. The IE-Giga-MiniMc is protected against mis-wiring; if mis-wired the IE-Giga- MiniMc will not function. The IE-Giga-MiniMc is internally connected to the negative DC power terminals. -
Page 7: Dc Power Supply Precautions
DC Power Supply Precautions The following precautions should be observed when installing chassis with DC power supplies. Check nameplate ratings to assure there is no overloading of supply circuits that could have an effect on overcurrent protection and supply wiring. When installing 7 –... -
Page 8: Specifications
Specifications Fiber Connections Multi-mode 1300nm Dual Fiber Single-mode 1310nm 1550nm Dual Fiber Single-mode 1310nm 1490nm Single-Strand Fiber Single-mode 1310nm 1550nm Single-Strand Fiber Ethernet Connections • 10/100/1000 BaseT • Auto Negotiation • AutoCross • Flow Control • 1632 MTU • Full Line-Rate Forwarding DC Input Voltage 7 to 50 V DC on DC terminal block 5 V DC on DC jack... -
Page 9: Imc Networks Technical Support
IMC Networks Technical Support Tel: (949) 465-3000 or (800) 624-1070 (in the U.S. and Canada); +32-16-550880 (Europe) Fax: (949) 465-3020 E-Mail: techsupport@imcnetworks.com Web: www.imcnetworks.com... -
Page 10: Fiber Optic Cleaning Guidelines
Dust caps are installed at IMC Networks to ensure factory-clean optical devices. These protective caps should not be removed until the moment of connecting the fiber cable to the device. Should it be necessary to disconnect the fiber device, reinstall the protective dust caps. -
Page 11: Safety Certifications
Directive on Electrical Equipment Designed for use within Certain Voltage Limits (2006/95/EC). Certified to Safety of Information Technology Equipment, Including Electrical Business Equipment. For further details, contact IMC Networks. Class 1 Laser product, Luokan 1 Laserlaite, Laser Klasse 1, Appareil A’Laser de Classe 1... - Page 12 The information in this document is subject to change without notice. IMC Networks assumes no responsibility for any errors that may appear in this document. IE-Giga-MiniMc is a trademark of IMC Networks. Other brands or product names may be trademarks and are the property of their respective companies.
