IE-MediaChassis/1-DC
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IE-MediaChassis/1-DC and is the answer not in the manual?

Questions and answers

Related Manuals for IMC Networks IE-MediaChassis/1-DC

Summary of Contents for IMC Networks IE-MediaChassis/1-DC

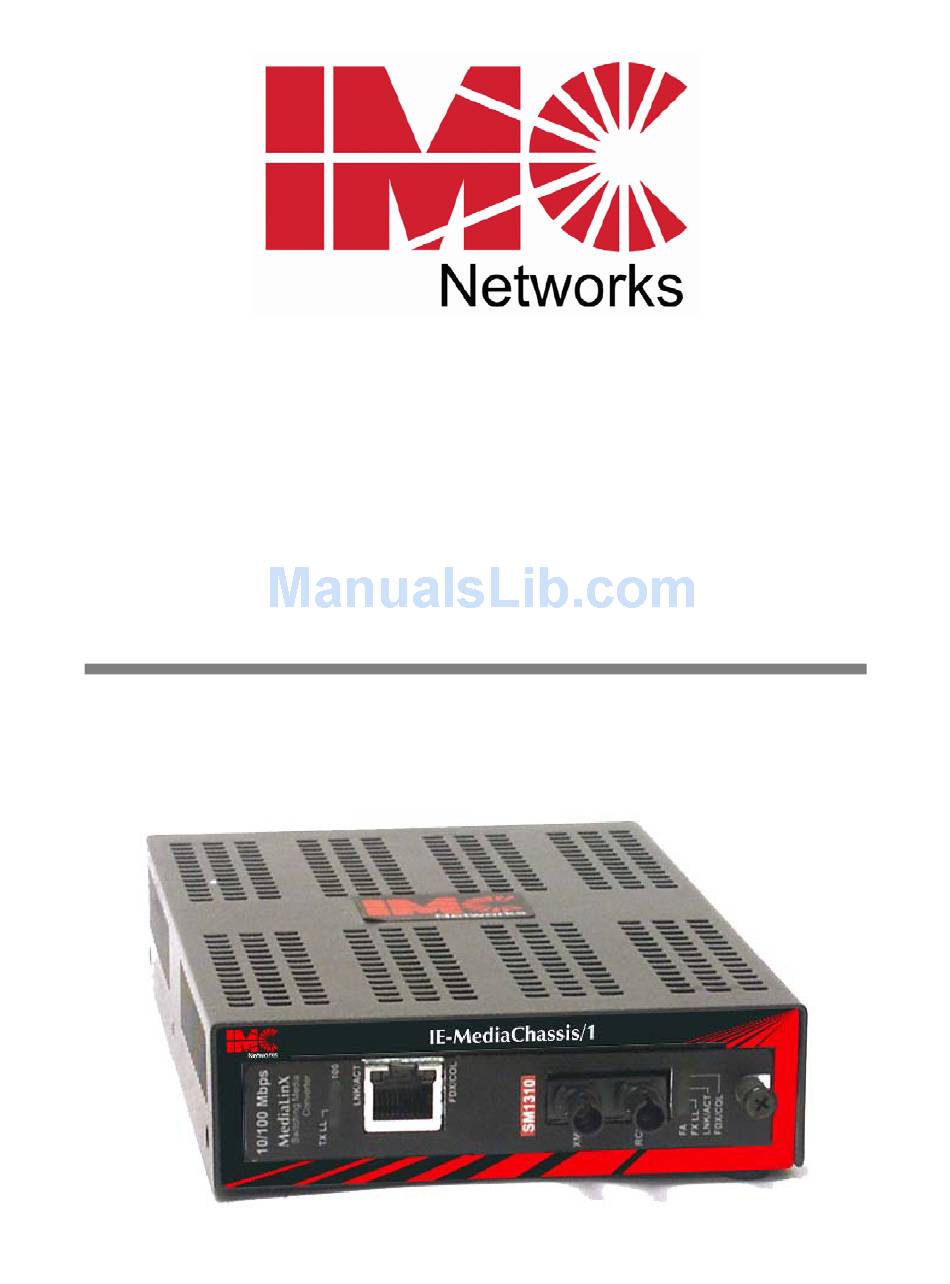

  • Page 1 IE-MediaChassis/1-DC Operation Manual...

  • Page 2: Fcc Radio Frequency Interference Statement

    At its option, IMC Networks will repair or replace at no charge the product which proves to be defective within such warranty period. This limited warranty shall not apply if the IMC Networks product has been damaged by unreasonable use, accident, negligence, service or modification by anyone other than an authorized IMC Networks Service Technician or by any other causes unrelated to defective materials or workmanship.

  • Page 3: Table Of Contents

    Table of Contents FCC Radio Frequency Interference Statement ... ii Warranty... ii About the IE-MediaChassis/1-DC ...1 Installing the IE-MediaChassis/1-DC ...1 Rackmount Precautions...2 Configuring and Installing Modules...3 DC Power Supply Wiring Instructions...3 DC Power Supply Precautions...5 IMC Networks Technical Support...6 Specifications ...6 Electrostatic Discharge Precautions...7...

  • Page 4: About The Ie-Mediachassis/1-Dc

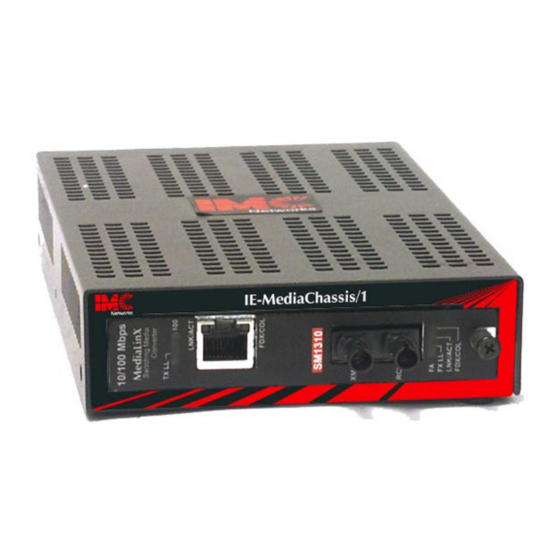

    About the IE-MediaChassis/1-DC The IE-MediaChassis/1-DC is a stand-alone chassis for use with iMcV modules. As an unmanaged chassis, the IE-MediaChassis/1-DC supports a single-wide iMcV module. All iMcV modules, with the exception of the SNMP management card, will function properly in this chassis.

  • Page 5: Rackmount Precautions

    Rackmount Precautions Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient. Therefore, consideration should be given to installing the equipment in an environment compatible with the maximum ambient temperature (Tma) specified by the manufacturer.

  • Page 6: Configuring And Installing Modules

    Alternatively, the chassis grounding jumper can be eliminated and the chassis ground connected at the power source. Incorrect wiring will result in chassis malfunction. The IE-MediaChassis/1-DC is compliant with Isolated Grounding Plane practices. The POSITIVE and NEGATIVE terminals are isolated from chassis ground and must have a ground reference at the power-sourcing equipment.
  • Page 7 This equipment is designed to permit the connection of the grounded conductor of the DC supply circuit to the grounded conductor at the equipment. If this connection is made, all of the following conditions must be met: This equipment shall be connected directly to the DC supply system grounded electrode conductor or to a bonding jumper from a grounded terminal bar or bus to which the DC supply system grounding electrode conductor is connected.

  • Page 8: Dc Power Supply Precautions

    DC Power Supply Precautions The following precautions must be observed when installing this chassis. Check nameplate ratings to ensure there is no overloading of supply circuits that could effect over current protection and supply wiring. In addition, the following must be observed: Connect the equipment to a 35 to 75 VDC power source that is electrically isolated from the alternating current source.

  • Page 9: Imc Networks Technical Support

    IMC Networks Technical Support Tel: (949) 465-3000 or (800) 624-1070 (in the U.S. and Canada); +32-16-550880 (Europe) Fax: (949) 465-3020 E-Mail: techsupport@imcnetworks.com Web: www.imcnetworks.com Specifications Environmental: Operating Temperature: -31° F to 176° F (-35° C to 80° C) Storage Temperature: -67° F to 257° F (-55° C to 125° C)

  • Page 10: Electrostatic Discharge Precautions

    Electrostatic Discharge Precautions Electrostatic discharge (ESD) can cause damage to your add-in modules. Always observe the following precautions when installing or handling an add-in module or any board assembly. Do not remove unit from its protective packaging until you’re ready to install it. Wear an ESD wrist grounding strap before handling any module or component.

  • Page 11: Safety Certifications

    (73/23/EEC). Certified to Safety of Information Technology Equipment, Including Electrical Business Equipment. For further details, contact IMC Networks. European Directive 2002/96/EC (WEEE) requires that any equipment that bears this symbol on product or packaging must not be disposed of with unsorted municipal waste.
  • Page 12 © 2008 IMC Networks. All rights reserved. The information in this document is subject to change without notice. IMC Networks assumes no responsibility for any errors that may appear in this document. IE-MediaChassis/1-DC is a trademark of IMC Networks. Other brands or product names may be trademarks and are the property of their respective companies.
