iMediaChassis/20
Operation Manual

Advertisement

Table of Contents
loading

Related Manuals for IMC Networks iMediaChassis/20

Summary of Contents for IMC Networks iMediaChassis/20

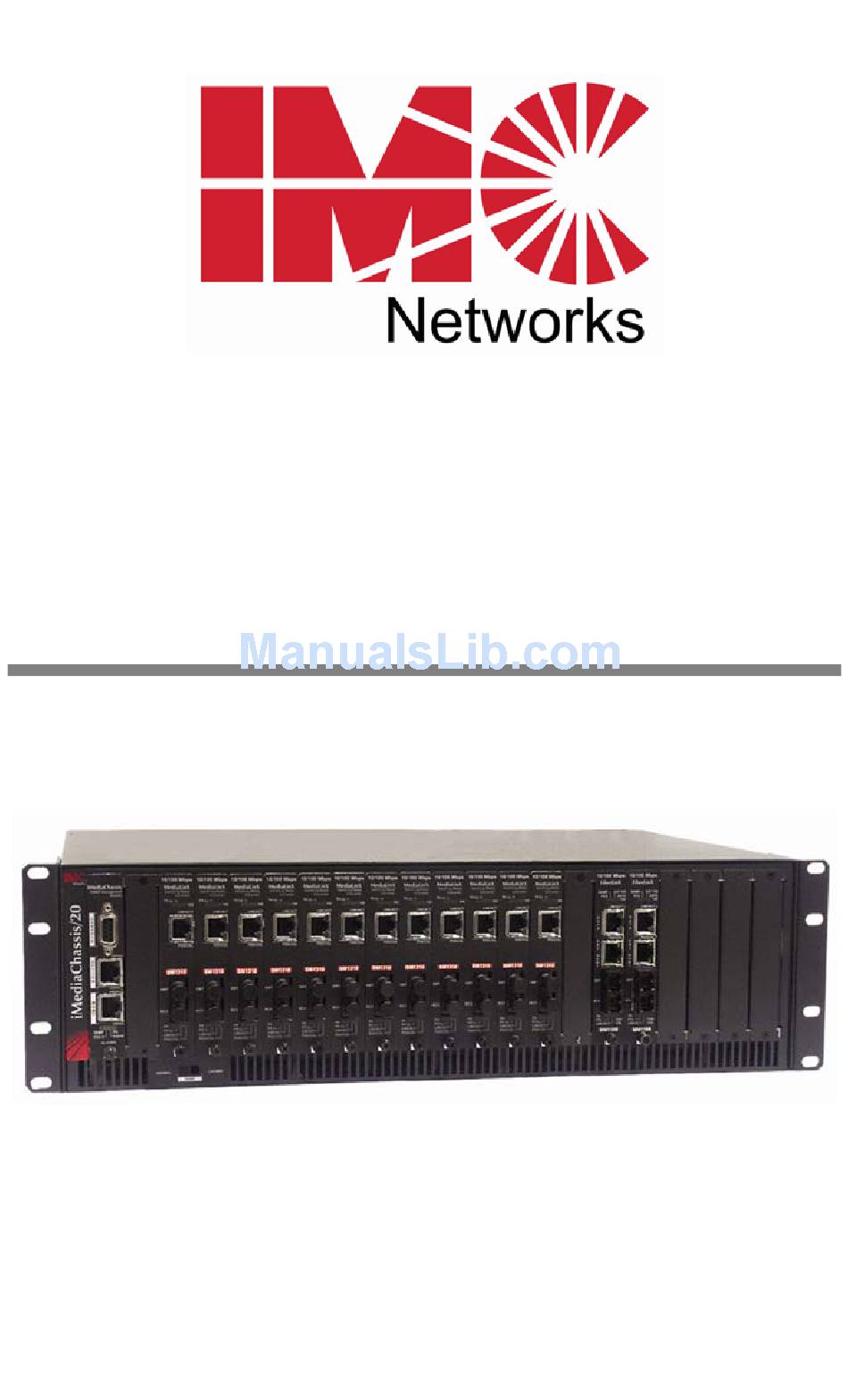

  • Page 1 Operation Manual...

  • Page 2: Fcc Radio Frequency Interference Statement

    At its option, IMC Networks will repair or replace at no charge the product which proves to be defective within such warranty period. This limited warranty shall not apply if the IMC Networks product has been damaged by unreasonable use, accident, negligence, service or modification by anyone other than an authorized IMC Networks Service Technician or by any other causes unrelated to defective materials or workmanship.

  • Page 3: Table Of Contents

    Table of Contents FCC Radio Frequency Interference Statement .............i Warranty......................i About the iMediaChassis/20 ................1 Installing the iMediaChassis/20................1 Installing Modules ....................1 SNMP Management Module LEDs ..............2 Power Supplies, Fans and Temperature Gauge...........3 Connecting Managed Chassis and Modules ............6 Configuring the iMediaChassis/20...............6 About Serial Port Configuration ................9...

  • Page 4: About The Imediachassis/20

    About the iMediaChassis/20 The iMediaChassis/20 is a modular chassis platform designed for use with IMC Networks’ SNMP-manageable series of modules. The iMediaChassis/20 is a 3U high, rack mountable chassis that features 20 slots for installing application series modules plus an additional slot for installing an SNMP management module. Each iMediaChassis/20 includes a redundant AC power supply.

  • Page 5: Snmp Management Module Leds

    Glows yellow when a fan malfunctions. Installing Management Modules In order to manage an iMediaChassis/20, install the SNMP Management Module. SNMP Management Modules install in the first slot, on the far left of the chassis. This slot is ONLY for the management module; do not install Application Modules such as media conversion and mode conversion modules in this slot.

  • Page 6: Power Supplies, Fans And Temperature Gauge

    Remove and replace the power supply immediately. Last Gasp Alarm The iMediaChassis/20 includes a Last Gasp feature, which sends a trap (configured in iView²) when both power supplies malfunction, when both power supplies are powered down, or when the AC line fails.
  • Page 7 User-Replaceable Power Supplies The iMediaChassis/20 is available in one or two power supply configurations. Power supplies are auto-sensing (i.e. either 115 or 230 for AC power supplies) and are also hot-swappable. While power supplies are redundant, failed power supplies should promptly be replaced to maintain network integrity and prevent data loss.

  • Page 8: Temperature Gauge

    Temperature Gauge The iMediaChassis/20 includes a temperature monitoring gauge with a heat sensor on the management module. Users define a threshold for chassis temperature via SNMP. If the chassis’ temperature rises above the specified level, the SNMP agent sends a trap (configured in iView²) to the administrator. There is also an LED indicator on the SNMP Management Module for chassis temperature.

  • Page 9: Connecting Managed Chassis And Modules

    Using DHCP (Dynamic Host Control Protocol); DHCP must be enabled through serial configuration In addition to assigning an IP address and subnet mask, the iMediaChassis/20 also allows creation of community strings, assigning access rights, configuration of traps and more. iConfig offers more options than configuring via the serial port.
  • Page 10 As stated, SNMP management modules can be removed and replaced as necessary. A saved PROM file can be downloaded to the second SNMP module to retain configuration settings. (See the iConfig help file for information.) Make sure the SNMP Write Lock switch is set to the LOCKED position. The PROM file should be saved periodically in case there is a need to replace the SNMP management module.

  • Page 11: Using Telnet

    DHCP is enabled, the DHCP client will initiate a dialogue with the server during the boot up sequence. The server will then issue an IP address to the iMediaChassis/20. Once the new IP address is received, the iMediaChassis/20 will reboot so that the new IP address will take effect.

  • Page 12: About Serial Port Configuration

    About Serial Port Configuration The SNMP management modules used with the iMediaChassis/20 feature a serial port that includes an IBM-compatible DB-9 serial connector. To connect an iMediaChassis/20 to a terminal/computer, use a straight-through (pin-to-pin) cable.

  • Page 13: Command List

    Current Values This section displays values currently in use: • IP Address (IP address of SNMP agent) • Subnet Mask (mask to define IP subnet agent is connected to) • Default Gateway (default router for IP traffic outside subnet) Command List This section displays the commands available: •...

  • Page 14: Deleting Community Strings

    P and instead of entering a password, press Enter. Passwords are a way to make the management of network devices secure. If the password(s) are lost, neither the end user nor IMC Networks can retrieve it. Enabling/Disabling DHCP...
  • Page 15 Device-Specific Options— Downloading Files With the iMediaChassis/20 firmware can be downloaded from a central server via the TFTP protocol. Initiate this download via serial configuration or Telnet session. Make sure the IP Address and the name of the file being downloaded are correct in the Current Values section of the Main Configuration screen.

  • Page 16: Using Iview²

    Using iView² iView² is a network management application for IMC Networks’ intelligent networking devices. It features a graphic user interface (GUI) and gives network managers the ability to monitor and control products from a variety of platforms. iView² can also function as a snap-in module for HP OpenView Network Node Manager.

  • Page 17: Specifications

    -4° to 158° F (-20° to 70° C) Humidity: 5 to 90% (non-condensing) Shipping weight: 31 lbs. (14 kg) IMC Networks Technical Support Tel: (949) 465-3000 or (800) 624-1070 (in the U.S. and Canada); +32-16-550880 (Europe) Fax: (949) 465-3020 E-Mail: techsupport@imcnetworks.com...
  • Page 18 Dimensions: 5.2”H x 19”W x 13.8”D (13.2 cm x 48.3 cm x 35.0 cm) Every reasonable effort has been made to ensure that IMC Networks product manuals and promotional materials accurately describe IMC Networks product specifications and capabilities at the time of publication.

  • Page 19: Safety Certifications

    Electrical Equipment Designed for use within Certain Voltage Limits (73/23/EEC). Certified to Safety of Information Technology Equipment, Including Electrical Business Equipment. For further details, contact IMC Networks. Class 1 Laser product, Luokan 1 Laserlaite, Laser Klasse 1, Appareil A’Laser de Classe 1...
  • Page 20 The information in this document is subject to change without notice. IMC Networks assumes no responsibility for any errors that may appear in this document. iMediaChassis/20 is a trademark of IMC Networks. Other brands or product names may be trademarks and are the property of their respective companies.
