Summary of Contents for IMC Networks IE-MultiWay

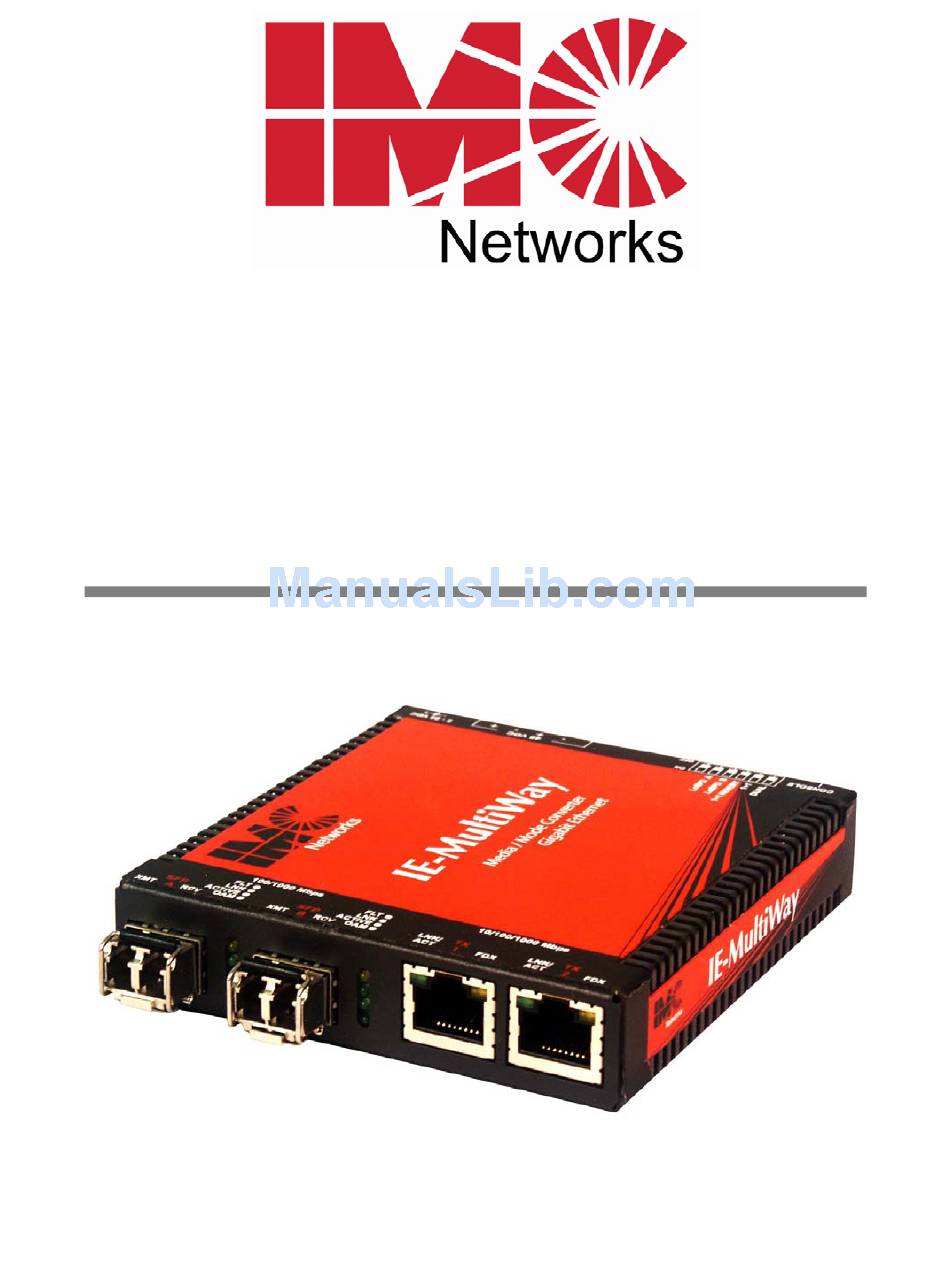

- Page 1 IE-MultiWay Operation Manual...
-
Page 2: Fcc Radio Frequency Interference Statement
This warranty is subject to the limitations set forth below. At its option, IMC Networks will repair or replace at no charge the product which proves to be defective within such warranty period. This limited warranty shall not apply if the IMC Networks product has been damaged by unreasonable use, accident, negligence, service or modification by anyone other than an authorized IMC Networks Service Technician or by any other causes unrelated to defective materials or workmanship. -
Page 3: Table Of Contents
Table of Contents FCC Radio Frequency Interference Statement ............ii Warranty......................ii About the IE-MultiWay..................1 Installing the IE-MultiWay ..................1 Powering the IE-MultiWay..................1 SFP Ports......................2 Configuration Instructions ..................2 Management Features..................3 DIP Switch configuration..................10 LED Operation....................10 DC Terminal Block Wiring Instructions.............11 RJ-45 Data Port Pinout..................12 Specifications ....................13... -

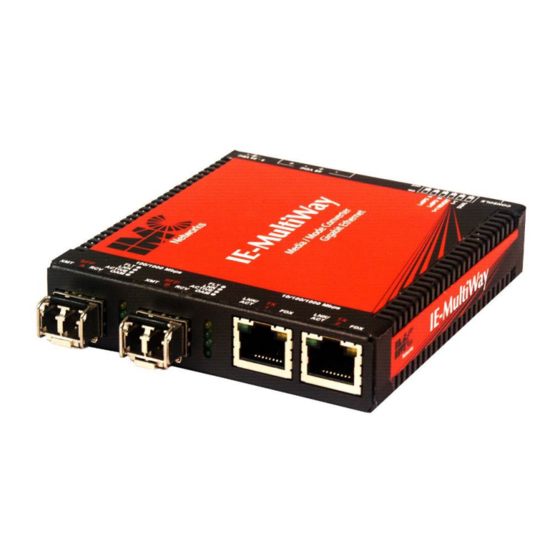

Page 4: About The Ie-Multiway
SFPs are sold separately and meet Class 1 Laser Safety Standard. Installing the IE-MultiWay The IE-MultiWay is a standalone, table-top device with a small form factor making it ideal for installation in locations with limited space, or it can be DIN rail mounted. -
Page 5: Sfp Ports
IE-MultiWay with optional DIN rail mount power supply SFP Ports The IE-MultiWay SFP ports support gigabit fiber SFPs, 100Mbps fiber SFPs, with or without Digital Diagnostics Monitory Interface (DDMI) as well as copper SFPs ports available in 10/100/1000Mbps. DDMI statistics provide real-time access to transceiver operating parameters such as voltage, temperature, laser bias current, and both transmitted and received optical power. -
Page 6: Management Features
VLAN transparency; firmware upgrades can be performed through iConfig. The IE-MultiWay includes an RS-232 Mini Jack for the Console port to allow the end user to launch a serial session and access a list of commands. The serial port on the computer/terminal should be set for: 38.4K baud, 8 data bits, 1 stop bit, no parity, no... -
Page 7: Saved And Current Values
Press Enter to open the main configuration screen. This screens allows the user to set the IP address and the destination IP address for traps with the community string, read/write access and password as usual. Saved Values. (These values will be active after reboot) IP Address - 10.10.10.10 Subnet Mask... -
Page 8: Command List
NOTE It is necessary to reboot the IE-MultiWay after making any modifications to the Saved Values for the changes to take effect. To reboot, type Reboot at the prompt on the Main Configuration screen. -
Page 9: Removing Trap Destinations
Passwords are a way to make the management of the IMC Networks devices secure, but these password lists must be stored and maintained. If a password becomes lost, please contact IMC Networks technical support at 1-800-624-1070 or 1-949-465-3000. Assigning SNMP Trap Destinations Traps are sent by the manageable device to a management PC when a certain event takes place. -
Page 10: Rebooting The Unit
Rebooting the Unit To reboot the IE-MultiWay, type reboot. Enabling/Disabling DHCP To toggle DHCP on the IE-MultiWay between enable and disable, press D. Press the Space Bar once to access additional commands. DHCP Disable (Static IP Addressing) DHCP is disabled in the default configuration. Initially, modules are assigned a Static default IP Address of 10.10.10.10. - Page 11 -> Press RETURN To Go Back To Main Screen. The IE-MultiWay also includes several device-specific options. To access these options, press the Space Bar from the Main Configuration screen, type the name of the action to be performed (as shown below) and press Enter.
- Page 12 OAM (Operation and Administration Management) ----------------------------- OAM Settings ------------------------------- SFP A SFP B LB Ignore RX Process Loopback Process Loopback LB Status NoLoopback NoLoopback OAM Enable Enabled Enabled Oper Status LinkFault LinkFault OAM Mode Passive Passive Sym Per Events Enabled Enabled Frame Events Enabled...
-
Page 13: Dip Switch Configuration
Force SFP "A" for low-speed operation LoSpd B Force SFP "B" for low-speed operation Reserved LED Operation Each IE-MultiWay includes SFP and RJ-45 LEDs. SFP LED functions are as follows: Glows amber when a fault is detected. Glows green with a valid optical link. ACTIVE... -
Page 14: Dc Terminal Block Wiring Instructions
DC Terminal Block Wiring Instructions The IE-MultiWay can also be powered with the DC terminal block. From a power source, connect to any one positive and any one negative terminal on the IE- MultiWay. NOTE When using stranded wire, the leads should be tinned. The DC terminal block is... -
Page 15: Rj-45 Data Port Pinout
RS-232 Serial Console Port The following table lists the pin configuration for the RS-232 3-pin Mini Jack mating connector for the console serial port. The Mini Jack to DB9 connector is available for purchase through IMC Networks (Part number 825-39951). DB9-F Pin#... -
Page 16: Specifications
Specifications Ethernet Connections • SFP 1000 Base-X • Auto-Cross • SFP 100 Base –FX • Flow Control • SFP 10/100/1000 Copper (SGMII) • Up to 10,240 MTU • 10/100/1000 BaseT (Fixed Copper ports) • Full Line-Rate Forwarding • Auto Negotiation Power DC terminal 48 VDC Telco... -
Page 17: Imc Networks Technical Support
Dust caps are installed at IMC Networks to ensure factory-clean optical devices. These protective caps should not be removed until the moment of connecting the fiber cable to the device. Should it be necessary to disconnect the fiber device, reinstall the protective dust caps. -
Page 18: Electrostatic Discharge Precautions
Electrostatic Discharge Precautions Electrostatic discharge (ESD) can cause damage to any product, add-in modules or stand alone units, containing electronic components. Always observe the following precautions when installing or handling these kinds of products Do not remove unit from its protective packaging until ready to install. Wear an ESD wrist grounding strap before handling any module or component. -
Page 19: Safety Certifications
Directive on Electrical Equipment Designed for use within Certain Voltage Limits (2006/95/EC). Certified to Safety of Information Technology Equipment, Including Electrical Business Equipment. For further details, contact IMC Networks. Class 1 Laser product, Luokan 1 Laserlaite, Laser Klasse 1, Appareil A’Laser de Classe 1... - Page 20 The information in this document is subject to change without notice. IMC Networks assumes no responsibility for any errors that may appear in this document. IE-MultiWay is a trademark of IMC Networks. Other brands or product names may be trademarks and are the property of their respective companies.
