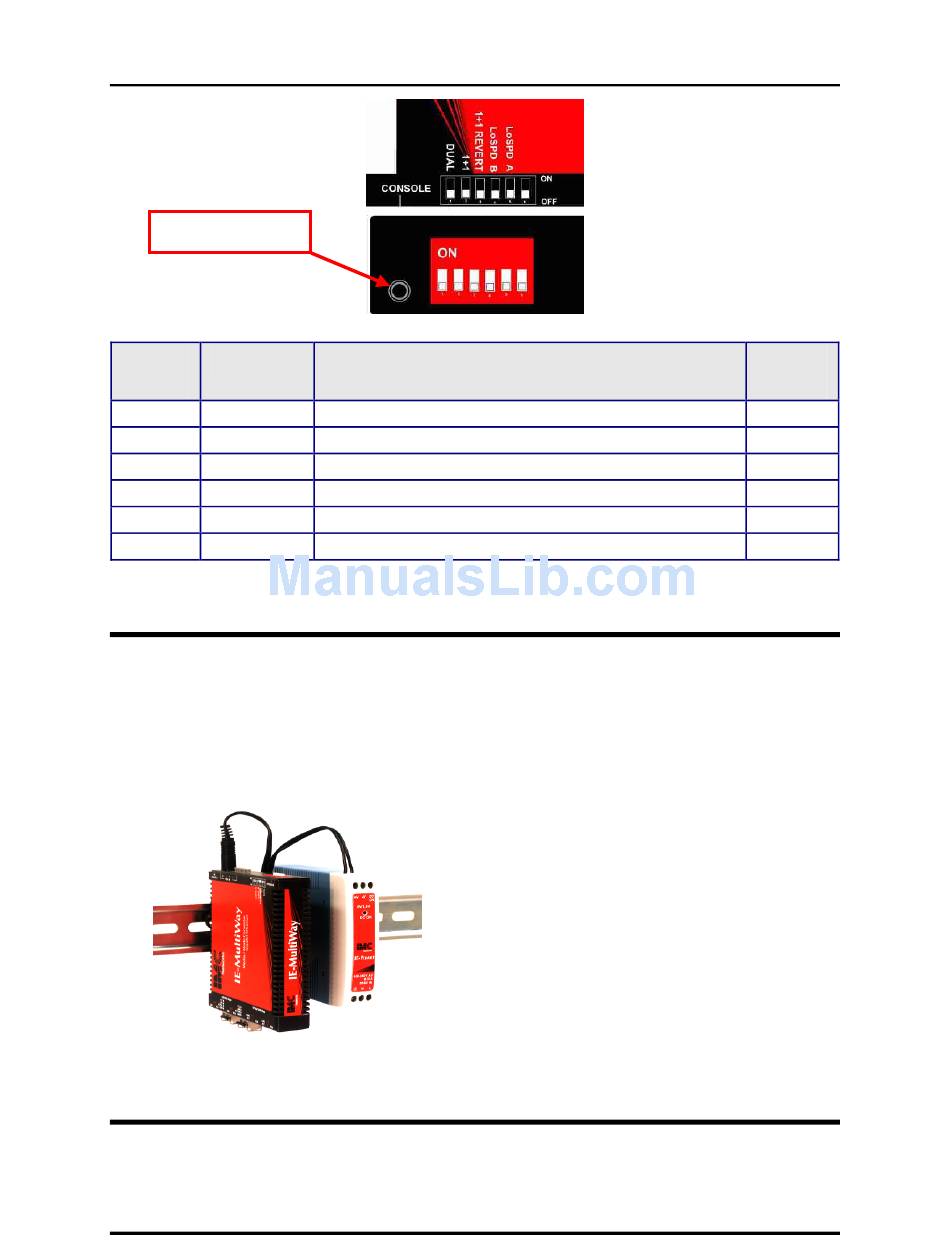

DIP Switch Configuration

Console Port
DIP Name
Switch
1 Dual
2 1+1
3 1+1 Revert
4 LoSpd B
5 LoSpd A
6 Reserved

Powering the IE-MultiWay

The IE-MultiWay includes multiple powering options:
•
AC adapter
•
The 4-terminal DC power block
•
An optional IE-Power/5V DIN Rail mount power supply, extended temperature
•
An optional IMC Networks Double-USB Power Cable
IE-MultiWay with optional DIN Rail mount power supply

Mini-Serial Port

A console port, located next to the DIP Switch bay, allows the customer to use a local
RS-232 serial interface for management. A special mini-jack to DB9-F cable is
provided with the product for direct connection to a PC serial port.
Description
Enable dual channel
Provides 1+1 protection with non-revertive switching
Provides 1+1 protection with revertive switching
Optional-for future use
Optional-for future use
7
Default
Setting
OFF
OFF
OFF
OFF
OFF
