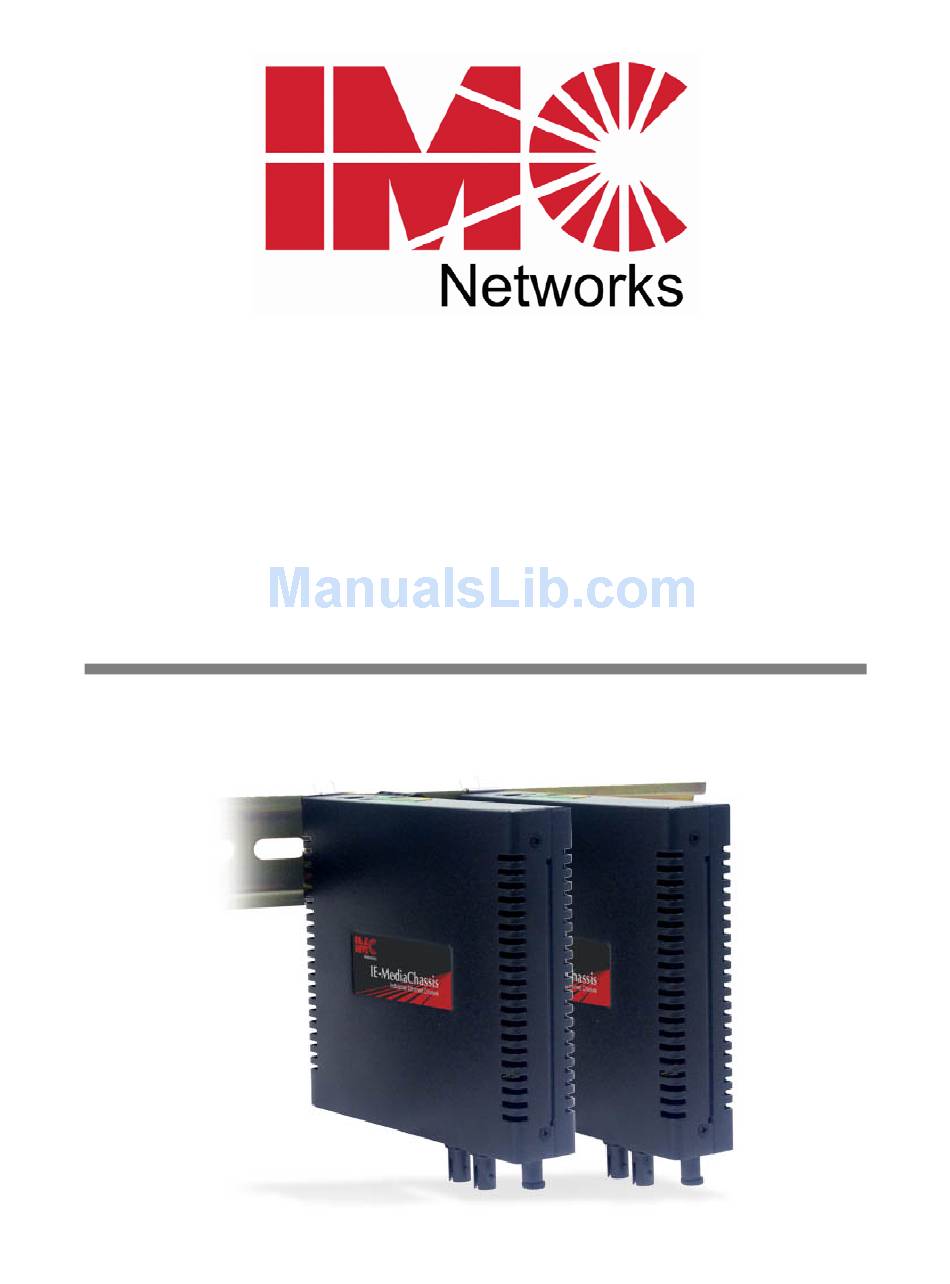

- Page 1 IE-MediaChassis/1 Operation Manual...
-
Page 2: Fcc Radio Frequency Interference Statement
At its option, IMC Networks will repair or replace at no charge the product which proves to be defective within such warranty period. This limited warranty shall not apply if the IMC Networks product has been damaged by unreasonable use, accident, negligence, service or modification by anyone other than an authorized IMC Networks Service Technician or by any other causes unrelated to defective materials or workmanship. -
Page 3: Table Of Contents
Table of Contents FCC Radio Frequency Interference Statement ............ii Warranty........................ii About the IE-MediaChassis/1..................1 Configuring and Installing Modules................1 Installing the IE-MediaChassis/1.................1 Powering the IE-MediaChassis/1................2 DC Terminal Block Wiring Instructions..............3 Cascading DC Power ....................4 DC Power Supply Precautions...................5 Specifications ......................6 Electrostatic Discharge Precautions................7... -
Page 4: About The Ie-Mediachassis/1

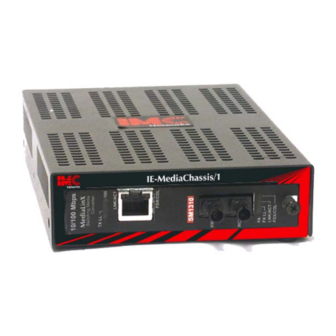

About the IE-MediaChassis/1 The Industrial Ethernet IE-MediaChassis/1 is a compact and modular, single-slot table- top unit that hosts a variety of IMC Networks iMcV-Modules. The IE-MediaChassis/1 has two power options: a 4-terminal DC power block, and a country-specific external AC power adapter. In addition, IE-MediaChassis/1 also includes an extended voltage range;... -
Page 5: Powering The Ie-Mediachassis/1
DIN Rail Mounting The IE-MediaChassis/1 can be mounted with two DIN Rail clips, a hardware option available through IMC Networks. The DIN Rail clips include screws, to allow the installation onto a DIN Rail. Install the screws into DIN Rail clips, which should be mounted perpendicular to the DIN Rail. -
Page 6: Dc Terminal Block Wiring Instructions
DC Terminal Block Wiring Instructions The IE-MediaChassis/1 can also be powered with the DC terminal block. From a power source, connect to any one positive and any one negative terminal on IE- MediaChassis/1. The following chart illustrates an example of the wiring configurations for the DC terminal block of IE-MediaChassis/1 (±7 to ±50 VDC). -
Page 7: Cascading Dc Power
Cascading DC Power When installing multiple IE-MediaChassis/1 units on a DIN rail, use one DC input source then cascade from one DC block to the next, until reaching the maximum current available. Make sure to connect positive to positive and negative to negative. -
Page 8: Dc Power Supply Precautions
DC Power Supply Precautions The following precautions should be observed when installing chassis with DC power supplies. Check nameplate ratings to assure there is no overloading of supply circuits that could have an effect on overcurrent protection and supply wiring. When installing DC equipment, it must be installed only per the following conditions: Connect the equipment to a ±7 to ±50 VDC supply source that is... -
Page 9: Specifications
-13°F to +185°F (-25°C to +85°C) with DC terminal +14°F to +122°F (-10°C to +50°C) with AC wall adapter NOTE The stated temperature (-25C° to +85°C) is for the IE-MediaChassis/1, and it does not apply to the modules. Storage Temperature -49°F to +185°F (-45°C to +85°C) -
Page 10: Electrostatic Discharge Precautions
Electrostatic Discharge Precautions Electrostatic discharge (ESD) can cause damage to any product, add-in modules or stand alone units, containing electronic components. Always observe the following precautions when installing or handling these kinds of products Do not remove unit from its protective packaging until ready to install. Wear an ESD wrist grounding strap before handling any module or component. -
Page 11: Safety Certifications
Voltage Limits (2006/95/EC). Certified to Safety of Information Technology Equipment, Including Electrical Business Equipment. For further details, contact IMC Networks. European Directive 2002/96/EC (WEEE) requires that any equipment that bears this symbol on product or packaging must not be disposed of with unsorted municipal waste. - Page 12 The information in this document is subject to change without notice. IMC Networks assumes no responsibility for any errors that may appear in this document. IE-MediaChassis/1 is a trademark of IMC Networks. Other brands or product names may be trademarks and are the property of their respective companies.
