Summary of Contents for IMC Networks IE-iMcV-ModeConverter

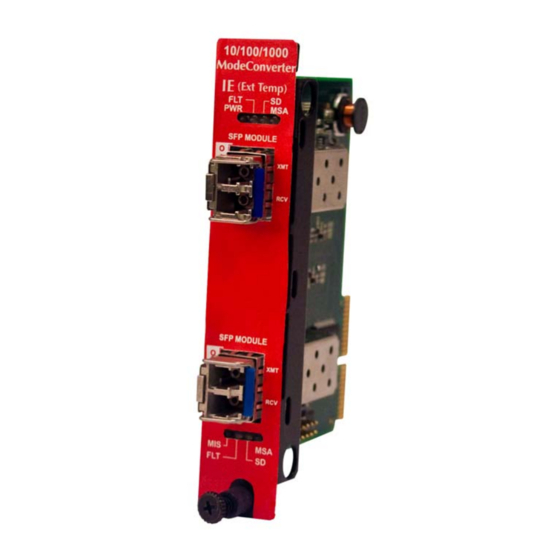

- Page 1 IE-iMcV-ModeConverter Operation Manual...
-
Page 2: Fcc Radio Frequency Interference Statement
At its option, IMC Networks will repair or replace at no charge the product which proves to be defective within such warranty period. This limited warranty shall not apply if the IMC Networks product has been damaged by unreasonable use, accident, negligence, service or modification by anyone other than an authorized IMC Networks Service Technician or by any other causes unrelated to defective materials or workmanship. -
Page 3: Table Of Contents
Table of Contents FCC Radio Frequency Interference Statement ............ii Warranty......................ii About the IE-iMcV-ModeConverter ..............1 Configuration Instructions ..................1 Managed Modules .....................1 Unmanaged Modules..................2 Installation ......................3 LED Operation....................4 Installation Troubleshooting ................5 Specifications .....................5 IMC Networks Technical Support...............5 Fiber Optic Cleaning Guidelines.................6 Electrostatic Discharge Precautions..............7... -
Page 4: About The Ie-Imcv-Modeconverter
The supported transmission speeds are: 10-155 Mbps and 622-1250 Mbps. Each module includes two SFP ports that can support SFPs with LC connectors. Single- strand fiber versions are also available with SC connectors. For information about the IE-iMcV-ModeConverter refer to the IMC Networks web site at: http://www.imcnetworks.com/Support/Downloads.cfm Configuration Instructions The IE-iMcV-ModeConverter modules have user-configurable features (e.g., LinkLoss,... -
Page 5: Unmanaged Modules
Unmanaged Modules Before beginning installation of the IE-iMcV-ModeConverter, configure it for the desired features. The chart states the available features and settings. After configuring the DIP Switches for the desired settings, install the module and connect the appropriate cables (refer to the Installation section for more information). -
Page 6: Installation
Slide the IE-iMcV-ModeConverter Module into the chassis, via the card guides, until the module is seated securely in the connector. Secure the module to the chassis by tightening the captive screw. -
Page 7: Led Operation
LED Operation Each IE-iMcV-ModeConverter features diagnostic LEDs that provide information on features and ports. Power—indicates power is provided to the module Glows green when unit is powered on and running Off when unit is not powered (not operating). Fault—indicates a FAULT condition... -
Page 8: Installation Troubleshooting
-40°F to +185°F (-40°C to +85°C) Humidity 5 to 95% (non-condensing); 0 to 10,000 ft. altitude Dimensions Single Slot iMcV module IMC Networks Technical Support Tel: (949) 465-3000 or (800) 624-1070 (in the U.S. and Canada); +32-16-550880 (Europe) Fax: (949) 465-3020 E-Mail: techsupport@imcnetworks.com... -
Page 9: Fiber Optic Cleaning Guidelines
Dust caps are installed at IMC Networks to ensure factory-clean optical devices. These protective caps should not be removed until the moment of connecting the fiber cable to the device. Should it be necessary to disconnect the fiber device, reinstall the protective dust caps. -
Page 10: Electrostatic Discharge Precautions
Electrostatic Discharge Precautions Electrostatic discharge (ESD) can cause damage to any product, add-in modules or stand alone units, containing electronic components. Always observe the following precautions when installing or handling these kinds of products Do not remove unit from its protective packaging until ready to install. Wear an ESD wrist grounding strap before handling any module or component. -
Page 11: Safety Certifications
Safety Certifications The products described herein comply with the Council Directive on Electromagnetic Compatibility (2004/108/EC) For further details, contact IMC Networks. Class 1 Laser product, Luokan 1 Laserlaite, Laser Klasse 1, Appareil A’Laser de Classe 1 European Directive 2002/96/EC (WEEE) requires that any equipment that bears this symbol on product or packaging must not be disposed of with unsorted municipal waste. - Page 12 © 2009 IMC Networks. All rights reserved. The information in this document is subject to change without notice. IMC Networks assumes no responsibility for any errors that may appear in this document. IE-MiniFiberLinX-II is a trademark of IMC Networks. Other brands or product names may be trademarks and are the property of their respective companies.
