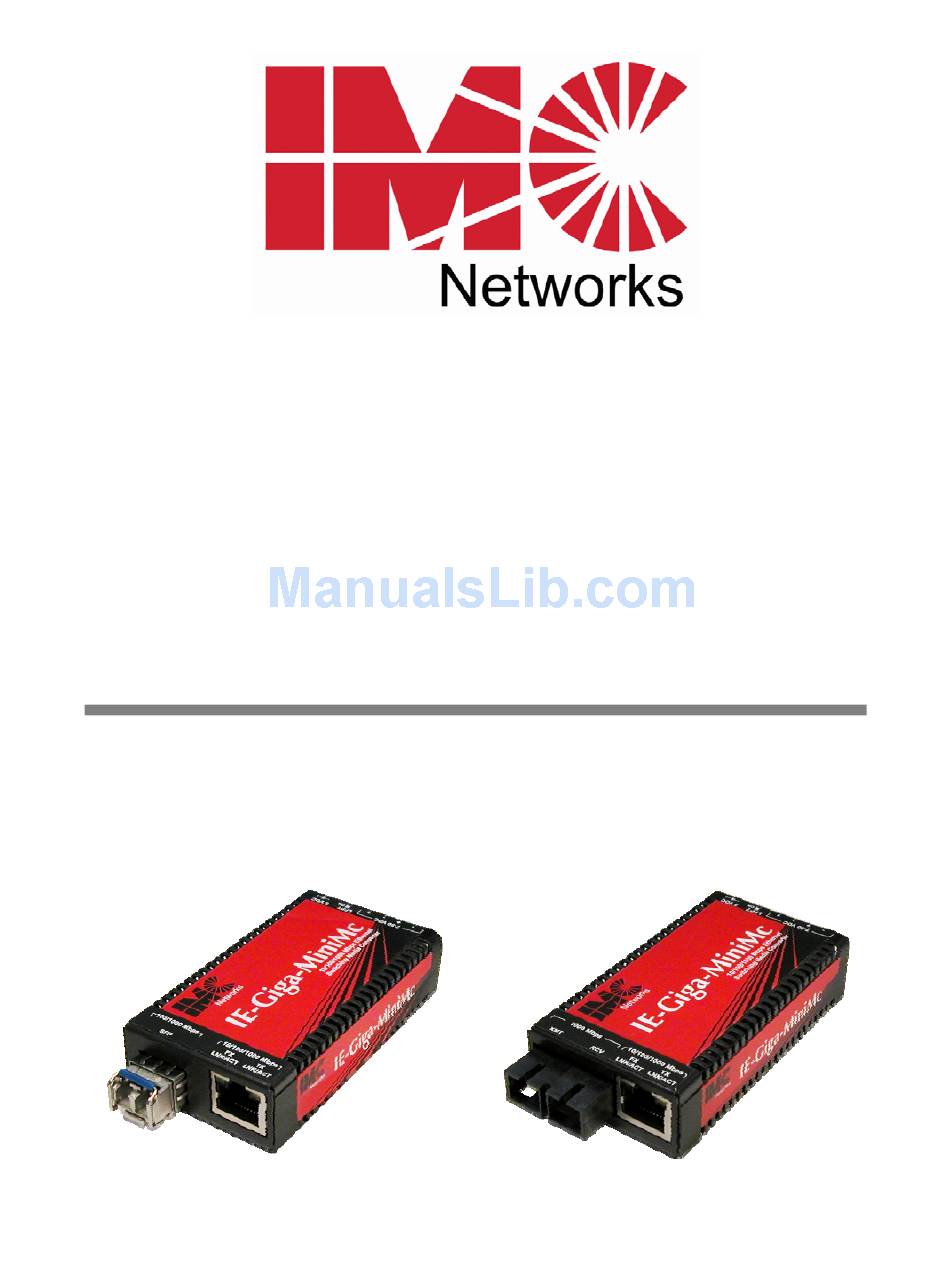

- Page 1 IE-Giga-MiniMc/LFPT TX/SFP IE-Giga-MiniMc/LFPT TX/FX Operation Manual Above illustrations are representative; some minor differences may be present in actual product...
-
Page 2: Fcc Radio Frequency Interference Statement
At its option, IMC Networks will repair or replace at no charge the product which proves to be defective within such warranty period. This limited warranty shall not apply if the IMC Networks product has been damaged by unreasonable use, accident, negligence, service or modification by anyone other than an authorized IMC Networks Service Technician or by any other causes unrelated to defective materials or workmanship. -
Page 3: Table Of Contents
Table of Contents FCC Radio Frequency Interference Statement .............i Warranty......................i About the IE-Giga-MiniMc/LFPT TX/SFP .............1 Installing the IE-Giga-MiniMc/LFPT TX/SFP ............2 Hardware Mounting...................2 LED Operation....................3 Powering the IE-Giga-MiniMc/LFPT TX/SFP ............3 DC Terminal Block Wiring Instructions...............4 Link Fault Pass Through (LFPT) ................4 Specifications .....................5... -
Page 4: About The Ie-Giga-Minimc/Lfpt Tx/Sfp
Single Mode fiber or multimode fiber in Dual Strand or Single Strand Configurations. The IE-Giga-MiniMc/LFPT TX/SFP is a SFP* port-base model, includes one 10/100/1000Mbps RJ-45 connector and one SFP port, which was designed to support MSA compliant 100Mbps or 1000Mbps SFPs. The device will read the SFP and run at the speed for which the SFP was designed. -
Page 5: Installing The Ie-Giga-Minimc/Lfpt Tx/Sfp
100 – 240 ±10% VAC input and 5V DC output. Hardware Mounting The IE-Giga-MiniMc/LFPT TX/SFP can be mounted on a DIN rail or using wall mount brackets (shown below). DIN rail clips (part number 806-39105) and wall mount brackets (part number 895- 39229) are available for purchase through an IMC Networks Distributor. -
Page 6: Led Operation
LED Operation Each IE-Giga-MiniMc/LFPT TX/SFP includes two LEDs, located on the RJ-45 connector. LED functions are as follows (above illustration is representative): FX LNK/ACT Glows green when a link is established on the fiber port; blinks green when activity is detected on the fiber port. -
Page 7: Dc Terminal Block Wiring Instructions
DC Terminal Block Wiring Instructions The IE-Giga-MiniMc/LFPT TX/SFP can be powered via the DC terminal block. From a power source, connect to any one positive and any one negative terminal on IE-Giga- MiniMc/LFPT TX/SFP. +5 to 24 VDC -48 VDC... -
Page 8: Specifications
Specifications Ethernet Connections • 10/100/1000 BaseT • Auto Negotiation • AutoCross • Flow Control • 10240 MTU • Full Line-Rate Forwarding DC Input Voltage 7 to 50 VDC on DC terminal block 5 VDC on DC jack AC Wall Adapter 100 to 240 ±10% VAC input, 5 VDC output, 2 A max Power Tray 18-Slot AC for Miniature Converters 125W, 20A@5V... -
Page 9: Imc Networks Technical Support
IMC Networks Technical Support Tel: (949) 465-3000 or (800) 624-1070 (in the U.S. and Canada); +32-16-550880 (Europe) Fax: (949) 465-3020 E-Mail: techsupport@imcnetworks.com Web: www.imcnetworks.com... -
Page 10: Fiber Optic Cleaning Guidelines
Dust caps are installed at IMC Networks to ensure factory-clean optical devices. These protective caps should not be removed until the moment of connecting the fiber cable to the device. Should it be necessary to disconnect the fiber device, reinstall the protective dust caps. -
Page 11: Safety Certifications
Directive on Electrical Equipment Designed for use within Certain Voltage Limits (2006/95/EC). Certified to Safety of Information Technology Equipment, Including Electrical Business Equipment. For further details, contact IMC Networks. Class 1 Laser product, Luokan 1 Laserlaite, Laser Klasse 1, Appareil A’Laser de Classe 1... - Page 12 The information in this document is subject to change without notice. IMC Networks assumes no responsibility for any errors that may appear in this document. IE-Giga-MiniMc/LFPT TX/SFP is a trademark of IMC Networks. Other brands or product names may be trademarks and are the property of their respective companies.
