Left side view

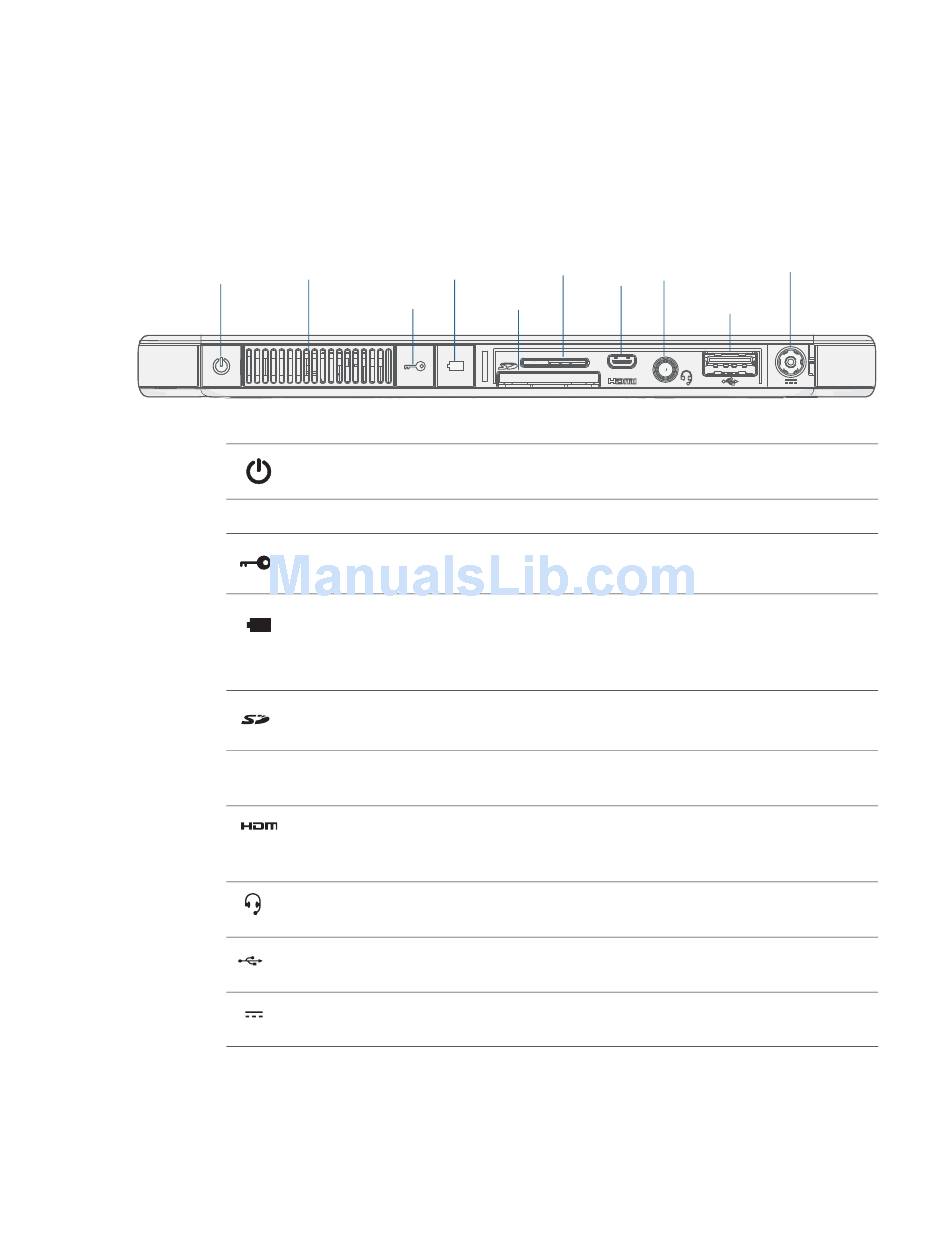

Most of the CL900 connectors and slots appear on the left side of the tablet. The ports are
protected by a door which is not shown in the picture below.
power
button
Chapter 1 Getting Started
battery
gauge
fan
button
vent
security
button
Power button Press to turn on and to put the tablet PC to sleep. Press
and hold to turn it off.
Fan vent Protects the fan assembly.
Security button Press to log on or lock the CL900. Equivalent to
Ctrl+Alt+Delete on a keyboard.
Battery gauge Check remaining battery power. Press the button to
button view LED lights on the front, the number of lights
indicates the current level of battery charge. See
"Checking battery power" on page 31.
SDHC card slot Secure Digital (SD) memory card slot.
SIM card slot For mobile broadband (WWAN). If required, your
cellular network carrier provides the SIM card.
Micro HDMI port Connect digital audio/video devices such as an external
digital monitor. The micro HDMI (Type D) supports up
to 1080p @ 60Hz.
Audio in/out jack Connect a combined headphone/microphone or any
other audio device compatible with a 3.5mm jack.
USB 2.0 port Connect a USB device such as a mouse, digital camera,
printer or external storage device.
Power adapter port Connect the power adapter.
SIM micro audio
card in/out
HDMI
slot
jack
slot
SDHC
card slot
power
adapter
USB
port
Overview of the CL900 5
