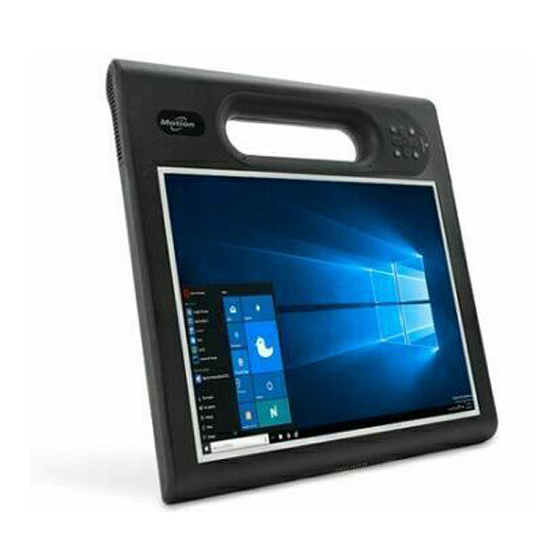

C5v/F5v Tablet PC
Model CFT-003
User's Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C5v and is the answer not in the manual?

Questions and answers

Related Manuals for Motion Computing C5v

Summary of Contents for Motion Computing C5v

  • Page 1 C5v/F5v Tablet PC Model CFT-003 User’s Guide...
  • Page 2 © 2013 Motion Computing, Inc. All rights reserved. Motion Computing, Inc. has made every effort to identify trademarked properties and owners on this This document contains information protected by page. All brands and product names used in this copyright. No part of this document may be...

  • Page 3: Table Of Contents

    Step 3: Get familiar with your C5v/F5v Tablet PC ......10...
  • Page 4 Chapter 3 Caring for your C5v/F5v....57 General care ..............57 Caring for the display.
  • Page 5 Traveling with your C5v/F5v Tablet PC ........
  • Page 6 Contents...

  • Page 7: Chapter 1 Getting Started

    The Motion C5v/F5v Tablet PCs are rugged, powerful and mobile, providing real-time access to information in the field. This is a list of the main features of the C5v/F5v Tablet PC. • Intel® Core™ i3, i5 or i7 vPro™ Processor •...

  • Page 8: Optional Features

    Optional features This section describes the optional features available when you purchase your C5v/F5v. Mobile broadband with GPS You can choose to purchase a C5v/F5v Tablet PC with the optional mobile broadband with GPS module. When installed, the module provides: •...

  • Page 9: View Anywhere Display

    RFID reader, “Using the RFID reader (optional)” on page 37 • Smart card reader, “Using the smart card reader (optional)” on page 49 Overview of the C5v/F5v The following illustrations show the buttons, slots and ports on the C5v/F5v Tablet PC. Top side RFID button RFID status...
  • Page 10 Record sounds and use for speech recognition. Web camera (optional) Interact over the web. Touchscreen display Use your finger or pen to navigate the tablet. (F5v option) Docking connector Connect to a C5v/F5v docking station. Chapter 1 Getting Started Overview of the C5v/F5v...

  • Page 11: Right Side

    Scan your fingerprints for added security. You can also use the fingerprint reader as a navigation device. Power button Turns the tablet on and off. Barcode scanner Reads codes from barcode labels. (optional) Chapter 1 Getting Started Overview of the C5v/F5v 5...
  • Page 12 Powers the tablet when it is not plugged in or docked. ® ® Note: The Microsoft Windows Certificate of Authenticity is located under the battery. Battery gauge Indicates the level of battery charge when you press the button next to the gauge. Chapter 1 Getting Started Overview of the C5v/F5v...

  • Page 13: Pen

    Here are some steps you can follow to power up and get familiar with your C5v/F5v Tablet Step 1: Power up the tablet 1. Pull out the port door located at the bottom of the right side of the C5v/F5v to expose the AC adapter port and plug in the AC adapter.

  • Page 14: Step 2: Connect To A Wireless Network

    4. Follow the on-screen instructions to set up your user account and activate Windows 7. Step 2: Connect to a wireless network The C5v/F5v comes with built-in Wi-Fi and Bluetooth. Your tablet PC may also be equipped with mobile broadband for accessing the Internet.
  • Page 15 • Enable 802.11 Internal Wireless • Enable Mobile Broadband with GPS (If this option is not listed, your C5v/F5v does not have mobile broadband capabilities.) To extend battery life, enable only the wireless devices that you will be using. Set up Wi-Fi Connect to the Internet and other computers wirelessly over Wi-Fi.

  • Page 16: Step 3: Get Familiar With Your C5V/F5V Tablet Pc

    On the Options tab, select Allow Bluetooth devices to find this computer. Step 3: Get familiar with your C5v/F5v Tablet PC Once you’ve set up your C5v/F5v, take a few minutes to get familiar with your tablet PC. •...

  • Page 17: Sleep Mode

    Sleep is sometimes called “stand-by. ” To put the tablet in sleep mode • Save your files. • Press and release the power button Chapter 1 Getting Started Where to begin with your C5v/F5v 11...

  • Page 18: Optional Setup Tasks

    45. Optional setup tasks Here are some other tasks you may want to do when you start out with your C5v/F5v. Create a recovery image Once you have set up your C5v/F5v the way you like it, including installing your applications, create a system image on an external USB drive.

  • Page 19: Attach The Pen Tether

    Attach the pen tether The C5v/F5v pen comes with a tether so that you can attach the pen to your tablet to avoid misplacing it. The tether is essentially a string with loops at each end. To attach the pen tether 1.
  • Page 20 The Getting Started document located on the desktop provides a number of tips to get you started using the tablet quickly. You will find other useful information on our website: • Tablet PC Tips & Tricks • Motion Computing Support • Free online training videos • Knowledge Base •...

  • Page 21: Chapter 2 Using Your C5V/F5V

    Introducing the C5v/F5v desktop and applications When you start up the C5v/F5v for the first time, the desktop looks like the following picture where Motion Computing applications appear in the taskbar and notification area.

  • Page 22: Changing The Taskbar

    The Motion Computing applications are described below. Motion Getting Document that contains tips for starting out with the Started C5v/F5v Tablet PC. Motion Dashboard Motion application for changing tablet settings. See “Using the Motion Dashboard” on page 16. Changing the taskbar You may find it convenient to place the Windows taskbar on the left edge of the display, especially if your tablet PC has a touchscreen display.
  • Page 23 This is a partial list of tasks that you can perform with Motion Dashboard. Some of these tasks are described in this chapter; all tasks are described in Motion Dashboard by tapping the help icon Chapter 2 Using your C5v/F5v Using the Motion Dashboard 17...

  • Page 24: Accessing Motion Tools From Windows Notification Area

    Initially, the Motion icons do not appear in the notification area. Tap the arrow to view more icons. Tap Customize to have the icons appear in the notification area. arrow wireless indicator Motion utilities power indicator Motion icons in the notification area Chapter 2 Using your C5v/F5v Accessing Motion tools from Windows notification area...

  • Page 25: Using Touch

    With the F5v, you can use either your finger, a pen or both to interact with the touchscreen display. With the C5v, you can use the pen to interact with the display (the C5v does not have a touchscreen display). While it’s convenient to use your finger most of the time, a pen allows you more precise control for editing a document or drawing graphics among other things.

  • Page 26: Calibrate Touch

    Options, then tap Specify single- or double-click to open. 2. Under Click items as follows, tap Single-click to open an item (point to select). For more information, open Windows Help and search for “folder options. ” Chapter 2 Using your C5v/F5v Using touch...

  • Page 27: Configuring Touch Input Mode

    8. To adjust the Press and hold action, under Touch action, tap Press and hold then tap Settings. Move the slider to make your adjustments. 9. To display the touch pointer on the screen, tap Show the touch pointer. Chapter 2 Using your C5v/F5v Using touch 21...

  • Page 28: Adjusting Pen Settings

    From Tablet PC Settings, you can change from right-handed to left-handed use. To change hand orientation 1. Open Motion Dashboard. 2. Tap Pen & Tablet. 3. Tap Tablet PC Settings. 4. Tap the Other tab and make your desired change. Chapter 2 Using your C5v/F5v Using touch...

  • Page 29: Entering Text And Handwriting Recognition

    When you write on the writing pad, your handwriting converts to digital ink. “Digital inking” refers to the process of converting your handwriting to text. In the following picture of the writing pad, someone started writing Motion Computing and “Motion” has already been converted into digital ink.

  • Page 30: Opening And Closing The Input Panel

    Tap the input panel tab on the left edge of the screen To close the input panel • Tap the close button at the top-right. The input panel slides back to the edge of the screen. Chapter 2 Using your C5v/F5v Entering text and handwriting recognition...

  • Page 31: Docking Or Floating The Input Panel

    If you find yourself typing a lot of numbers, use the numbers pad. To open the numbers pad • Tap the Num key at the bottom of the writing pad. Numbers pad Chapter 2 Using your C5v/F5v Entering text and handwriting recognition 25...

  • Page 32: Entering Special Keys With The Extended Keyboard

    2. Tap Pen & Tablet. 3. Tap Pen & Input Devices. 4. Tap Handwriting and follow the on-screen instructions. If you inherit your C5v/F5v from another user, you can reset automatic learning. To reset handwriting automatic learning 1. Open Motion Dashboard.

  • Page 33: Using Front Panel Buttons

    Dashboard directional pad Enter B button A button Secondary Button Primary (Function+button) Function Activates secondary function for other buttons Dashboard Starts Motion Dashboard Opens Windows Journal™ Chapter 2 Using your C5v/F5v Using front panel buttons 27...

  • Page 34: Configuring Front Panel Buttons

    As you become more familiar with your tablet, you can customize the buttons on the front panel. You can configure the buttons to start your favorite program, run a command, or enter a key combination. function Dashboard directional pad Enter B button A button Chapter 2 Using your C5v/F5v Using front panel buttons...

  • Page 35: Setting Display Options

    At other times, you may want a landscape orientation for web browsing or sketching. To rotate the display Motion Dashboard 1. Open Chapter 2 Using your C5v/F5v Setting display options 29...

  • Page 36: Enabling Or Disabling Automatic Rotation

    The “extended with monitor primary” display theme expands the desktop area across the tablet and external monitor, where the external monitor as the primary monitor. You can set the external monitor to use a different display resolution than the tablet PC. Chapter 2 Using your C5v/F5v Setting display options...

  • Page 37: Connect An External Monitor

    Tablet only The “tablet only” display theme uses the tablet display only. Connect an external monitor To connect an external monitor to the C5v/F5v, you use the CFT-Series docking station, sold separately. To set up an external monitor 1. Connect the monitor cable from the external monitor into the CFT-Series docking station according to the CFT-Series Docking Station User’s Guide.

  • Page 38: Using The Built-In Microphones

    You can use the built-in array microphones to record audio, dictate notes, and use voice commands. The two microphones are used at the same time to optimize sound detection for speech recognition and voice recording. Chapter 2 Using your C5v/F5v Using the built-in microphones...

  • Page 39: Using Speech Recognition

    5. If the microphones are set to an appropriate level, the meter will stay in the green zone while you read the sentences. If the level is too low or too high, use Motion Dashboard to adjust the level (page 16). Chapter 2 Using your C5v/F5v Using speech recognition 33...

  • Page 40: Using Dictation And Voice Commands

    For dictation, open the program you want to use and start speaking. For more information about speech recognition, search Windows Help and Support for “speech recognition. ” Using the cameras (optional) Your tablet may include built-in web and documentation cameras. Chapter 2 Using your C5v/F5v Using the cameras (optional)

  • Page 41: Using The Web Camera

    To close the Pictures window, tap Close. • To save the picture, tap Save. In the Save As dialog box, specify a location and a file format, such as BMP, JPG, or GIF. Chapter 2 Using your C5v/F5v Using the cameras (optional) 35...

  • Page 42: Using The Barcode Scanner (Optional)

    Pictures window to switch among active pictures. Using the barcode scanner (optional) Your C5v/F5v is available with an optional integrated 1D and 2D barcode scanner that you can use to retrieve information from barcodes. A barcode is a series of shapes on a contrasting background that can be optically read by a barcode scanner.

  • Page 43: Barcode Scanner Tips

    Using the RFID reader (optional) Your tablet PC may include an integrated 13.56 MHz RFID (Radio Frequency Identification) reader that you can use to retrieve information from RFID tags. Chapter 2 Using your C5v/F5v Using the RFID reader (optional) 37...
  • Page 44 2. Aim the right edge of the unit at the RFID tag. Ensure that the tag is 1–1.5 inches (25–40 mm) from the RFID antenna scan area. RFID tag 1 – 1.5 inches Chapter 2 Using your C5v/F5v Using the RFID reader (optional)

  • Page 45: Using The Battery

    RFID tags are typically used with specialized applications. See your system administrator for more information. Using the battery The C5v/F5v includes a high-capacity Lithium-ion battery that fits into the back of the unit. Under normal conditions, you can run the tablet on battery power for about four hours. DANGER: To avoid personal injury, handle the battery with care.
  • Page 46 The battery gauge is located on the front of the C5v/F5v Tablet PC as shown: You can use the battery gauge on the front of the unit to monitor the status of the battery. To check the remaining battery power while running on the battery 1.

  • Page 47: Removing And Replacing The Battery

    Before you remove the battery, ensure that the tablet is plugged in, turned off, or in Hibernate (page 12) or Sleep mode (page 11). If you are hot-swapping the battery (page 43), you can do so while the tablet is on and running on battery power. Chapter 2 Using your C5v/F5v Using the battery 41...
  • Page 48 2. Insert your finger under the finger grip and remove the battery from the battery compartment. To replace the battery 1. Place the tabbed end of the battery into the battery compartment. 2. Press the battery down until it locks in to place. Chapter 2 Using your C5v/F5v Using the battery...

  • Page 49: Hot Swapping The Battery

    1. Remove the battery (page 41). 2. Insert the new battery (page 41). Important: Use only Motion Computing C5v/F5vbatteries with the tablet. Long-term battery storage Do not store any batteries with a full charge; this can cause a permanent loss of charging capacity.

  • Page 50: Battery And Power Management Tips

    Wireless tab, and clear the check box next to the wireless device you want to disable. Changing the power plan By default, the C5v/F5v uses the Motion Optimized power plan which is designed specifically for Motion Computing tablets. It balances the need to save power while maximizing tablet performance.

  • Page 51: Changing How The Power Button Functions

    Using the fingerprint reader, you can log on to the tablet by scanning your fingerprint instead of entering a password. This feature provides another level of security for the tablet. scan fingerprint fingerprint reader Chapter 2 Using your C5v/F5v Using the fingerprint reader 45...

  • Page 52: Starting The Omnipass Application

    In the notification area, double-tap the Motion OmniPass icon ( ). When you start the application for the first time, the Motion OmniPass application looks like this: Motion OmniPass Initial Start Up Chapter 2 Using your C5v/F5v Using the fingerprint reader...

  • Page 53: Create An Omnipass User Account

    1. If you haven’t already done so, Start OmniPass. 2. Tap Enroll New User. 3. Follow the instructions in the setup program. When prompted: 1. Supply your Windows log in user name and password. Chapter 2 Using your C5v/F5v Using the fingerprint reader 47...

  • Page 54: Replace Your Passwords

    For an additional level of security, you can enable strong logon security. Strong logon security forces you to authenticate with a specific security device (such as the fingerprint reader or a Smart Card) before allowing access to Windows. Chapter 2 Using your C5v/F5v Using the fingerprint reader...

  • Page 55: Using The Smart Card Reader (Optional)

    Using smart card software, this device reads information from the smart card when the card is inserted into the reader. The smart card is an ISO 7816 PC/SC compliant, contact type smart card reader/writer. Chapter 2 Using your C5v/F5v Using the smart card reader (optional) 49...
  • Page 56 2. Pull the card straight out of the reader. smart card reader smart card Chapter 2 Using your C5v/F5v Using the smart card reader (optional)

  • Page 57: Using The Sim Card Slot

    2. Open the SIM slot door. 3. Press the card in slightly until it pops out. You may need to use a paper clip to push the SIM card in to release it. Chapter 2 Using your C5v/F5v Using the smart card reader (optional) 51...

  • Page 58: Using Windows Action Center

    If you have an administrator account, you can add new user accounts from the Microsoft Management Console. For detailed instructions on setting up new users, open Windows Help and search for “Create a user account. ” Chapter 2 Using your C5v/F5v Using Windows Action Center...

  • Page 59: Locating Your Serial Number

    Locating your serial number You can locate the serial number for your C5v/F5v from the: • White label underneath the battery, which is located on the back of the tablet. The number begins with “S/N. ” To remove the battery, see “Removing and replacing the battery”...

  • Page 60: Creating A System Image

    3. Tap Recover your system settings or your computer, then Advanced Recovery Methods, then Use a system image... 4. Follow the on-screen instructions. For more information, open Windows Help and search for “Back up your programs, system settings, and files. ” Chapter 2 Using your C5v/F5v Restoring your system...

  • Page 61: Restoring Your System Image If You Can't Start Windows 7

    4. On the Advanced Boot Options screen, select Repair your computer and press Enter. 5. Select a keyboard layout, then tap Next. 6. Select a user name and enter the password, then tap OK. Chapter 2 Using your C5v/F5v Restoring your system 55...

  • Page 62: Finding Other Software

    For information about other software for your tablet, go to Motion Computing Accessories and the Motion Computing Store. You will find links to software solutions for purchase as well as free downloads from Motion Computing and its service partners. Chapter 2 Using your C5v/F5v Finding other software...

  • Page 63: Chapter 3 Caring For Your C5V/F5V

    Caring for your C5v/ Proper care and maintenance will keep your C5v/F5v Tablet PC working and in good condition for a long time. For general information about care of the tablet and its components and accessories, see the Safety and Regulatory Guide included with your tablet PC.

  • Page 64: Caring For The Display

    If liquid is spilled on the display, wipe it up immediately with a soft cloth like the one provided with the tablet. • Use only the C5v/F5v pen to write on the display. Any other object could damage the display surface. •...

  • Page 65: Replacing Pen Tips

    EPA-approved low-level disinfectant when general cleaning is required. For a list of cleaning solutions tested by Motion Computing, see “Cleaning solutions” on page 58. If the tablet becomes soiled with blood or other body fluids, a hospital-approved low-level disinfectant that is tuberculocidal/virucidal when used at recommended dilutions and contact times can be used.

  • Page 66: Training And Documentation Considerations

    4. After cleaning, gently rub the surfaces again with a clean, dry cotton swab. Use a clean swab each time you clean the sensor. 1. Centers for Disease Control and Prevention. “Sterilization or Disinfection of Patient-Care Equipment- HIV Related. ” 2000. <www.cdc.gov/ncidod/dhqp/bp_sterilization_patient_care.html> (20 Sept. 2006). Chapter 3 Caring for your C5v/F5v Cleaning the fingerprint reader...

  • Page 67: Caring For The Tablet Battery

    Use the following tips when you travel with your C5v/F5v Tablet PC: • Put the tablet PC in a case to protect the display. Motion Computing sells a variety of cases for the C5v/F5v. You can purchase one at the Motion Computing Accessories page.
  • Page 68 Chapter 3 Caring for your C5v/F5v Traveling with your C5v/F5v Tablet PC...

  • Page 69: Chapter 4 Troubleshooting And Faqs

    Troubleshooting and FAQs Motion Computing Tablet PCs are thoroughly tested for performance and quality, but occasionally problems can still occur. If you do not find the information you are looking for in this section, go to Motion Computing Support. Troubleshooting Use the information in this section to identify and resolve common issues.
  • Page 70 3. Press the camera, Windows Security, and dashboard buttons, simultaneously. For the locations of these button, see below. Dashboard button Windows Security button camera button The tablet will not enter Hibernation mode • Hibernation might not be enabled. Enable hibernation by adjusting the power button behavior from Motion Dashboard.

  • Page 71: Battery Problems

    Battery problems The battery does not last very long (less than three hours) • Hot or cold conditions can adversely affect the battery charge. Use AC power if you are operating the tablet in these conditions. • Accessory devices such as a DVD player and applications that make heavy use of the hard drive can drain the battery more quickly.

  • Page 72: Touch Or Pen Problems

    The tablet PC does not respond to the pen I am using • Use only the C5v/F5v pen with the tablet. The tablet PC does not respond to other digitizer pens, even Motion Computing pens for other models. When I add an external display, touch input does not appear on the desired display •...

  • Page 73: Ports And Connectors Problems

    The C5v/F5v is in its dock, but the tablet does not recognize any accessory devices, such as the external disk drive or monitor • The C5v/F5v may not be fully seated in the dock. Remove it from the dock and then replace it. Chapter 4...

  • Page 74: Network Problems

    I cannot connect to a wireless Wi-Fi network • Your C5v/F5v may not have located a Wi-Fi network. From the Start menu, tap Control Panel then Network and Internet. View your active networks. If no network is connected, tap Connect to a network and select a network from the list.

  • Page 75: Bluetooth Wireless Tips

    Some issues arise when using Bluetooth devices as listed below. Bluetooth wireless tips Motion Computing and its Bluetooth partners have worked to ensure a positive experience with this technology and to ensure Bluetooth interoperability. In doing so, we have found the following issues: •...
  • Page 76 Computing > MotionCM. The GPS does not work • The GPS receiver is only available if you purchased your C5v/F5v with the optional Mobile Broadband with GPS module. • Mobile Broadband with GPS must be enabled from the Motion Dashboard. Open...

  • Page 77: Audio Problems

    For instructions, open Windows Help and search for “disk cleanup. ” • Unlike traditional hard drives, SSD drives, like the one installed in C5v/F5v, see no performance benefit from traditional HDD defragmentation tools. Using these tools...

  • Page 78: Frequently Asked Questions

    How can I make the battery charge last longer? • By default, the power plan for the C5v/F5v is a balance between optimal performance and a long battery charge. If you want the tablet to run longer between charges, use the Power saver power plan.
  • Page 79 The tablet PC is designed to be easy to clean and disinfect, so ports and connectors are minimized. (The F5v has a USB port, while the C5v does not have any USB ports.) Will any monitor, USB device, keyboard or mouse work with the tablet PC? •...
  • Page 80 Chapter 4 Troubleshooting and FAQs Frequently asked questions...

  • Page 81: Index

    Index Numerics 802.11 Wi-Fi 9 C5v/F5v specifications 1 calibrating for touch 20 calibrating the digitizer 20 AC power 7 calibrating the pen 20 accessories 14, 56 camera amber light 72 button 5 amber lights 40 documentation 5, 6 antenna, GPS 71...
  • Page 82 digitizer flashing lights 40 Motion Dashboard options 21 flicks 19, 21 digitizer pen free downloads 56 calibrating 20 front panel buttons directional pad 4, 28 about 27 display configuring 28 automatic display rotation 19, 30, 73 front panel light 40 care and cleaning 58 Function button connecting external 13...
  • Page 83 32 power adapter touch input 23 port 5 monitors, using multiple 30 power button 45 Motion Computing Accessories 14, 56 blinking 64 Motion Computing Store 14, 27 power plan Motion Computing Support 14, 63 Motion Optimized 44 Motion Connection Manager 9, 70...
  • Page 84 setting up touch Bluetooth 69 and pen 21 docking station 13 calibrating 20 external monitor 13 disabling touch input 21 mobile broadband 9 gestures 21 strong logon security 48 on multiple displays 32 the tablet PC 7 pointer, adjusting 21 Wi-Fi 9 pointer, show or hide 21 setting up users and passwords 52...
  • Page 85 Windows wireless notification area 18, 30 setting up 802.11 Wi-Fi 9 repairing 55 setting up Bluetooth 10 Setup wizard 8 setting up mobile broadband 9 speech recognition 33 wireless network Windows.old directory 56 setting up 8 Windows Firewall 52 troubleshooting 68–69 Windows Security Center wireless networking 9, 10 about 52...
