Left side view

Most of the CL910 connectors and slots appear on the left side of the tablet. The ports are
protected by a cover that is not shown in the picture below.
power
button
Chapter 1 Getting Started
battery
gauge
fan
button
vent
security
button

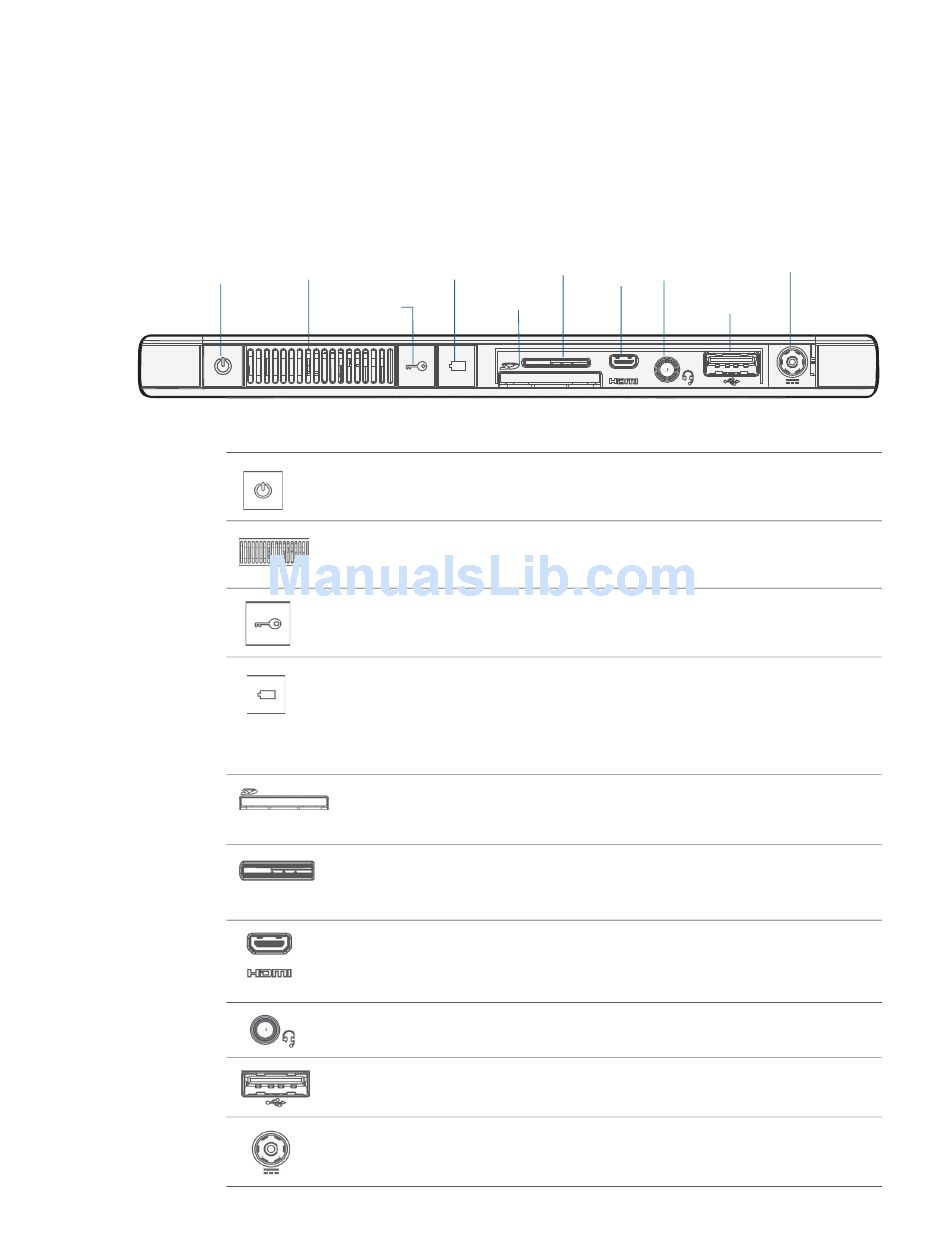

CL910 left side view
Power button
Fan vent
Security button
Battery gauge
button
SD card slot
SIM card slot
Micro-HDMI port
Audio in/out jack
USB port
Power adapter
port
SIM Micro- audio
card in/out
HDMI
slot
jack
port
SD card
slot
Press to turn on and to put the CL910 Tablet PC to
sleep.
Cooling unit
Press to lock and unlock the CL910. Equivalent to
pressing Ctrl+Alt+Delete on a keyboard.
Check remaining battery power. Press the button to
view battery gauge LED lights on the front, the
number of lights indicates the current level of battery
charge. See Checking tablet battery power
page 47.
Secure Digital (SD) memory card slot
Required for some mobile broadband networks. If
required, your cellular network carrier provides the
SIM card.
Connect digital audio/video devices such as an
external digital monitor. The Micro-HDMI (Type D)
supports up to 1080p @ 60Hz.
Connect headphones, speakers, or any other audio
device compatible with a 3.5mm jack.
Connect a USB device such as a mouse, digital
camera, printer, or external storage device.
Connect the power adapter.
power
adapter
USB
port
on
