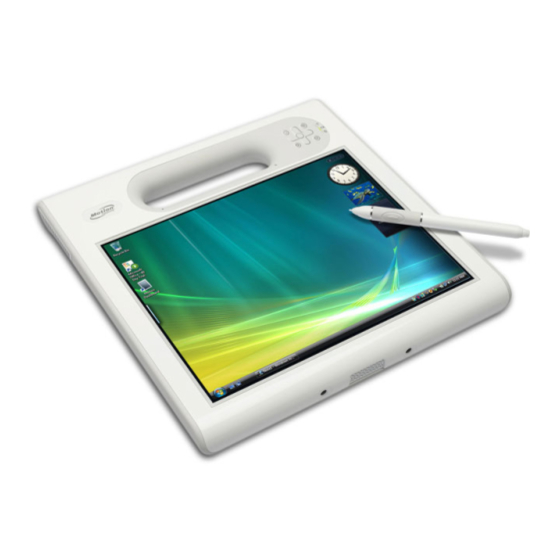

Motion Computing Tablet PC Pen Motion C5 Quick Start

To power up the Motion C5, use the following steps:
1 1 . . Press the Power Button for a second or two. Note the green light that
surrounds the button will illuminate.
2 2 . . When the Windows login asks you to press the "CNTL-ALT-DEL" keys,
you will press the SAS button on the right side of the Motion C5.
This button has the picture of the key.
3 3 . . Using the pen and on-screen keyboard, enter your username and
password as directed by your organization.
4 4 . . Depending on the complexity of your organization's login parameters,
the quickest method may be to use the C5 docking station with an
attached keyboard and mouse.
Pen Tip Right-Click Button
(Function Button)
Function
S S e e l l e e c c t t
O O p p e e n n a a p p p p l l i i c c a a t t i i o o n n o o r r f f i i l l e e
S S e e l l e e c c t t a a n n d d d d r r a a g g
D D i i s s p p l l a a y y p p r r o o p p e e r r t t i i e e s s o o r r e e d d i i t t
f f u u n n c c t t i i o o n n s s ( ( c c u u t t , , c c o o p p y y , , p p a a s s t t e e ) )
Helpful Pen Tips
• Sit or stand comfortably
• Hold the pen like a regular pen
• Do not position your finger on the Right Click Button
• It's ok to rest your hand on the screen
• Script (cursive) is more readily recognized by the Tablet PC
• Calibrate the digitizer and pen for better cursor alignment
(See Training Manual for details)
M M o o t t i i o o n n C C 5 5 Q Q u u i i c c k k S S t t a a r r t t
® ®
G G u u i i d d e e f f o o r r C C l l i i n n i i c c i i a a n n s s
Eraser
On the Mouse
Point and click
Double-click
Click and drag
Right-click and hold
T T o o p p R R i i g g h h t t C C o o r r n n e e r r ( ( s s i i d d e e v v i i e e w w ) )

Using the Pen

Using the Tablet PC pen is similar to using a mouse.
To right-click, hold down the Function Button on the pen.
The following table explains the similarities between a
Tablet PC pen and a mouse.
With the Pen
Point and tap on display
Double tap on display
Tap and drag
Press and hold the Right-Click Button down, then tap the
screen; or hold the pen on the display until the mouse icon
appears, and then remove the pen tip from the display
Power Button
Fingerprint Reader
SAS Button
Camera Button
