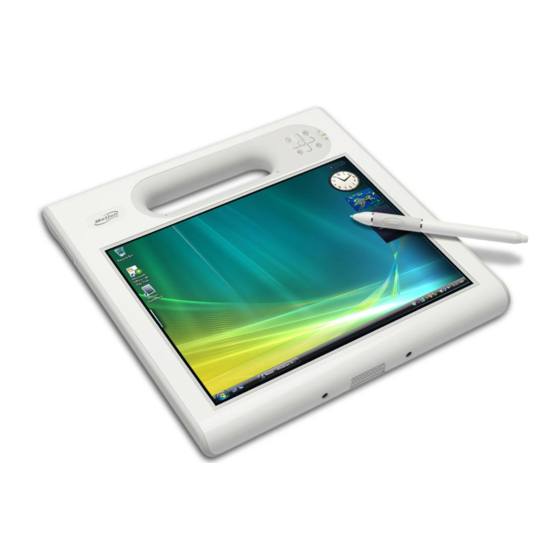

Motion Computing C5 Quick Reference Manual

®
Use this document to get familiar with your Motion Computing
Tablet PC. For more detailed information, see "Learning more" on
the other side of this sheet.

Getting started

1. Press the power button.
2. Using the pen and the on-screen keyboard, tap your password.
Buttons and status lights
Function
Directional
pad
A button
Tip:
Use the Function button to activate the secondary functions of
the other buttons. For example, Function+A rotates the display.
Using Tablet PC Input Panel
You can use Tablet PC Input Panel instead of a
keyboard to enter text on your tablet.
To open Input Panel, do one of the following:
• Tap at the place you want to enter text,
such as a text box. Then tap the floating
Tablet PC Input Panel icon.
• On Windows Vista, tap the Input Panel tab
on the left edge of the screen (default).
• On Windows XP, tap the Tablet PC Input
Panel icon on the Windows taskbar.
Note:
Input Panel differs slightly between Windows XP
and Windows Vista.
Motion is a trademark and Motion Computing is a registered trademark of
Motion Computing, Inc. in the United States and other countries.
All other trademarks are properties of their respective owners.

Quick Reference Guide

Note:
You might have to press the
Windows Security button
(Ctrl+Alt+Del) before you can log on.
The first time you start the
tablet, Windows Setup appears.
Windows Setup helps you create
your user account and set up
the operating system. Follow the
instructions in the setup program.
Motion Dashboard
Wi-Fi light
Battery light
Bluetooth light
B button
You can use the writing pad, the character pad, or the on-screen keyboard to enter
text. For more information about using the Input Panel, see the Input Panel Help.
Writing pad
Enter text using normal handwriting
(cursive or block letters).
Character pad
Enter text using handwriting one
character at a time.
On-screen keyboard
Enter text by tapping the
on-screen keyboard.
Pen
You can use the pen instead of a keyboard and mouse to enter
text, make selections, and open files.
Pen Function button
Tip
Note:
The pen eraser deletes digital ink, but not text.
The following table shows the similarities between a pen and
a mouse.
Mouse action Pen action
Point and click Point and tap
Double-click Double-tap
Click and drag Tap and drag
Right-click Tap and hold
Right-click Press the pen Function button
and then tap
Pen tips
• Hold the pen like a regular pen.
• Calibrate the digitizer for better pointer alignment. Open
Motion Dashboard to the Pen & Tablet panel, then click
Calibrate Digitizer.
• You can rest your hand on the screen while you are using
the pen.
• Store the pen in the pen holder when not in use.
Tap
Tap
Tap
Copyright © 2007 Motion Computing, Inc. All rights reserved.
Eraser
PN 024-02-0113 A01
November 2007
