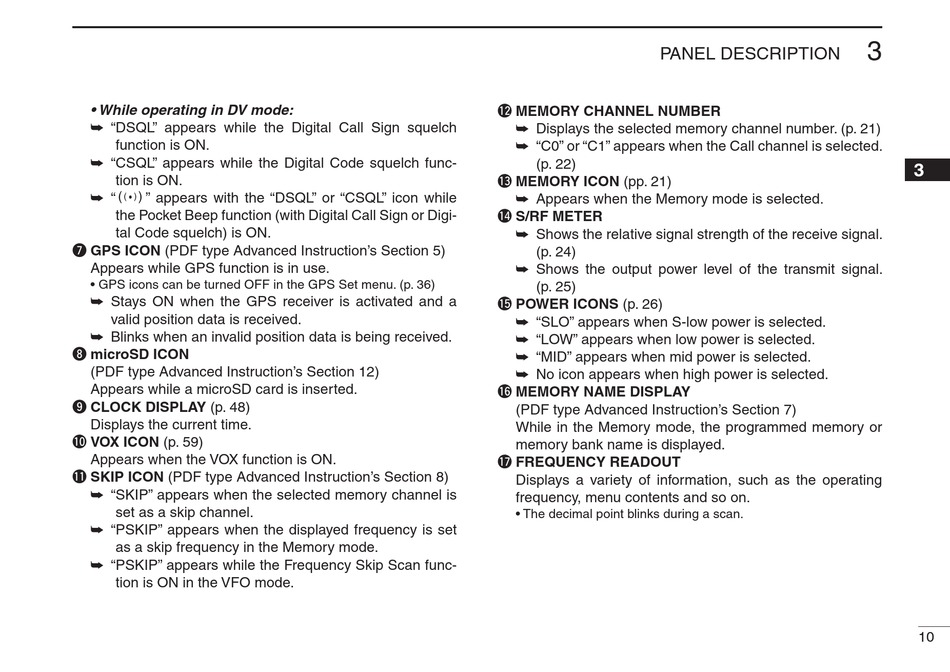

• While operating in DV mode:
" DSQL" appears while the Digital Call Sign squelch
➥
function is ON.
" CSQL" appears while the Digital Code squelch func-
➥
tion is ON.
➥ S" appears with the "DSQL" or "CSQL" icon while "
the Pocket Beep function (with Digital Call Sign or Digi-
tal Code squelch) is ON.
u GPS ICON (PDF type Advanced Instruction's Section 5)
Appears while GPS function is in use.
• GPS icons can be turned OFF in the GPS Set menu. (p. 36)
Stays ON when the GPS receiver is activated and a
➥
valid position data is received.
Blinks when an invalid position data is being received.
➥
i microSD ICON
(PDF type Advanced Instruction's Section 12)
Appears while a microSD card is inserted.
o CLOCK DISPLAY (p. 48)
Displays the current time.
!0 VOX ICON (p. 59)
Appears when the VOX function is ON.
!1 SKIP ICON (PDF type Advanced Instruction's Section 8)
" SKIP" appears when the selected memory channel is
➥
set as a skip channel.
" PSKIP" appears when the displayed frequency is set
➥
as a skip frequency in the Memory mode.
" PSKIP" appears while the Frequency Skip Scan func-
➥
tion is ON in the VFO mode.

PANEL DESCRIPTION

!2 MEMORY CHANNEL NUMBER
Displays the selected memory channel number. (p. 21)
➥
"C0" or "C1" appears when the Call channel is selected.
➥
(p. 22)
!3 MEMORY ICON (pp. 21)
Appears when the Memory mode is selected.
➥
!4 S/RF METER
Shows the relative signal strength of the receive signal.
➥
(p. 24)
Shows the output power level of the transmit signal.
➥
(p. 25)
!5 POWER ICONS (p. 26)
" SLO" appears when S-low power is selected.
➥
" LOW" appears when low power is selected.
➥
" MID" appears when mid power is selected.
➥
No icon appears when high power is selected.
➥
!6 MEMORY NAME DISPLAY
(PDF type Advanced Instruction's Section 7)
While in the Memory mode, the programmed memory or
memory bank name is displayed.
!7 FREQUENCY READOUT
Displays a variety of information, such as the operating
frequency, menu contents and so on.
• The decimal point blinks during a scan.
