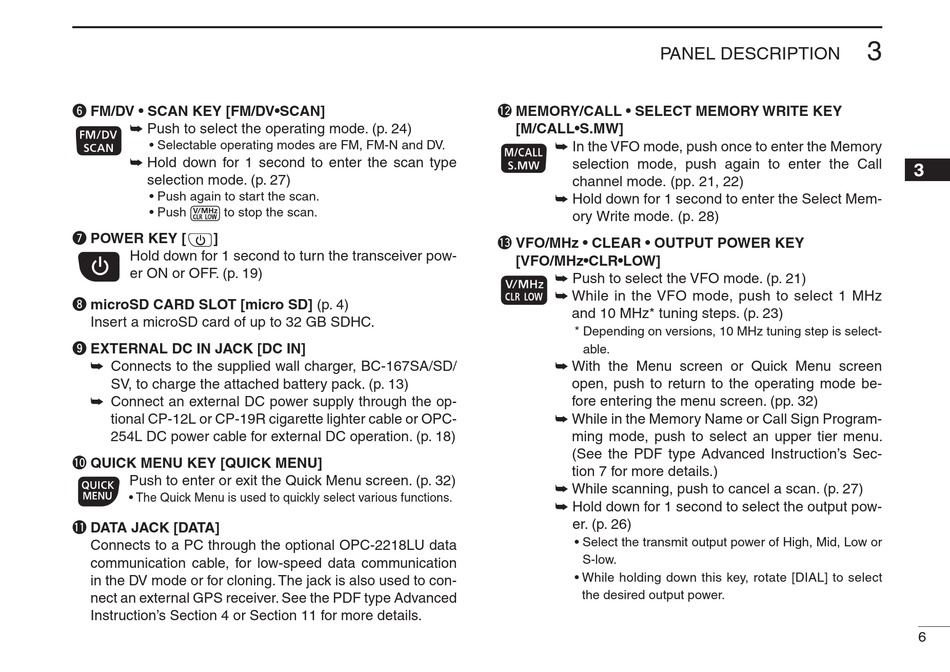

y FM/DV • SCAN KEY [FM/DV•SCAN]
➥ Push to select the operating mode. (p. 24)
• Selectable operating modes are FM, FM-N and DV.
➥ Hold down for 1 second to enter the scan type
selection mode. (p. 27)
• Push again to start the scan.
• Push to stop the scan.
u POWER KEY [ ]
Hold down for 1 second to turn the transceiver pow-
er ON or OFF. (p. 19)
i microSD CARD SLOT [micro SD] (p. 4)
Insert a microSD card of up to 32 GB SDHC.
o EXTERNAL DC IN JACK [DC IN]
Connects to the supplied wall charger, BC-167SA/SD/
➥
SV, to charge the attached battery pack. (p. 13)
➥ Connect an external DC power supply through the op-
tional CP-12L or CP-19R cigarette lighter cable or OPC-
254L DC power cable for external DC operation. (p. 18)
!0 QUICK MENU KEY [QUICK MENU]
Push to enter or exit the Quick Menu screen. (p. 32)
• The Quick Menu is used to quickly select various functions.
!1 DATA JACK [DATA]
Connects to a PC through the optional OPC-2218LU data
communication cable, for low-speed data communication
in the DV mode or for cloning. The jack is also used to con-
nect an external GPS receiver. See the PDF type Advanced
Instruction's Section 4 or Section 11 for more details.
PANEL DESCRIPTION
!2 MEMORY/CALL • SELECT MEMORY WRITE KEY
[M/CALL•S.MW]
➥ In the VFO mode, push once to enter the Memory
selection mode, push again to enter the Call
channel mode. (pp. 21, 22)
➥ Hold down for 1 second to enter the Select Mem-
ory Write mode. (p. 28)
!3 VFO/MHz • CLEAR • OUTPUT POWER KEY
[VFO/MHz•CLR•LOW]
➥ Push to select the VFO mode. (p. 21)
➥ While in the VFO mode, push to select 1 MHz
and 10 MHz* tuning steps. (p. 23)
* Depending on versions, 10 MHz tuning step is select-
able.
➥ With the Menu screen or Quick Menu screen
open, push to return to the operating mode be-
fore entering the menu screen. (pp. 32)
➥ While in the Memory Name or Call Sign Program-
ming mode, push to select an upper tier menu.
(See the PDF type Advanced Instruction's Sec-
tion 7 for more details.)
➥ While scanning, push to cancel a scan. (p. 27)
➥ Hold down for 1 second to select the output pow-
er. (p. 26)
• Select the transmit output power of High, Mid, Low or
S-low.
• While holding down this key, rotate [DIAL] to select
the desired output power.
