10
OPTIONS
HM-75LS
■
remote control speaker microphone
(Continued)
• COMMON (SIMPLE/NORM-1/NORM-2):
[A] Transmits T-CALL (1750 Hz tone) while pushing [PTT]
[B] —
[p] Volume 'UP' while operating the Monitor function
[q] Volume 'DOWN' while operating the Monitor function
❍ When transceiver is in the DR mode:
Regardless of the "MIC Simple Mode" setting in FUNCTION
menu, the Remote control microphone functions on the DR
mode.
[A] Enters UR call sign or link repeater selection (TO)
[B] Enters Access repeater selection (FROM)
[p] Selects 'UP' on the displayed items
[q] Selects 'DOWN' on the displayed items
57

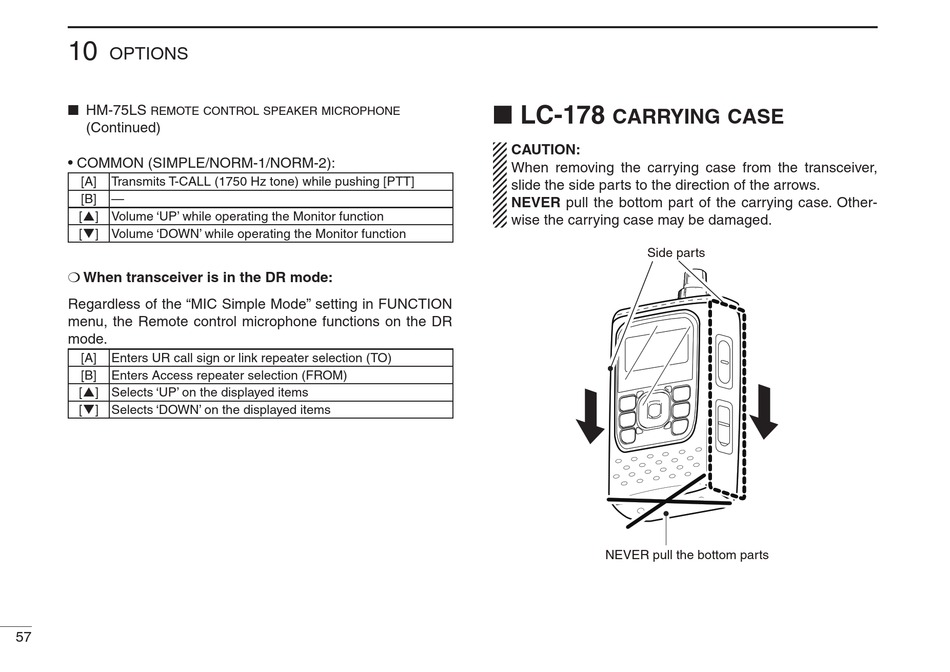

■ LC-178

carrying case

CAUTION:
When removing the carrying case from the transceiver,
slide the side parts to the direction of the arrows.
NEVER pull the bottom part of the carrying case. Other-
wise the carrying case may be damaged.
Side parts
NEVER pull the bottom parts
