3

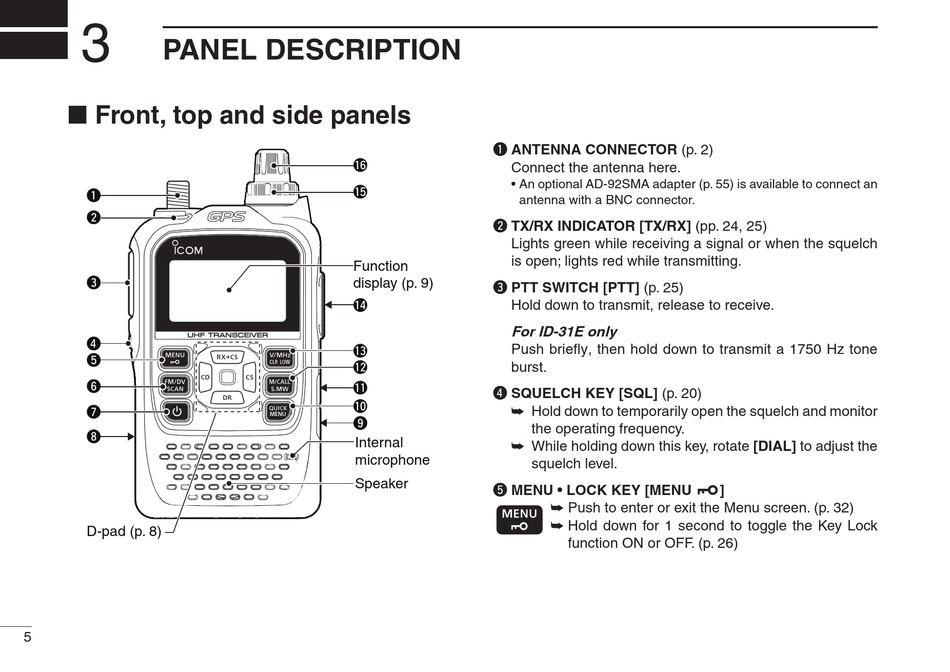

PANEL DESCRIPTION

■ Front, top and side panels

q
w
e
r
t
y
u
i
D-pad (p. 8)
5
q ANTENNA CONNECTOR (p. 2)
!6
Connect the antenna here.
• An optional AD-92SMA adapter (p. 55) is available to connect an
!5
antenna with a BNC connector.
w TX/RX INDICATOR [TX/RX] (pp. 24, 25)
Lights green while receiving a signal or when the squelch
is open; lights red while transmitting.
Function
display (p. 9)
e PTT SWITCH [PTT] (p. 25)
Hold down to transmit, release to receive.
!4
For ID-31E only
Push briefly, then hold down to transmit a 1750 Hz tone
!3
burst.
!2
!1
r SQUELCH KEY [SQL] (p. 20)
!0
Hold down to temporarily open the squelch and monitor
➥
o
the operating frequency.
Internal
While holding down this key, rotate
➥
microphone
squelch level.
Speaker
t MENU • LOCK KEY [MENU ]
➥ Push to enter or exit the Menu screen. (p. 32)
➥ Hold down for 1 second to toggle the Key Lock
function ON or OFF. (p. 26)
[DIAL] to adjust the
