1

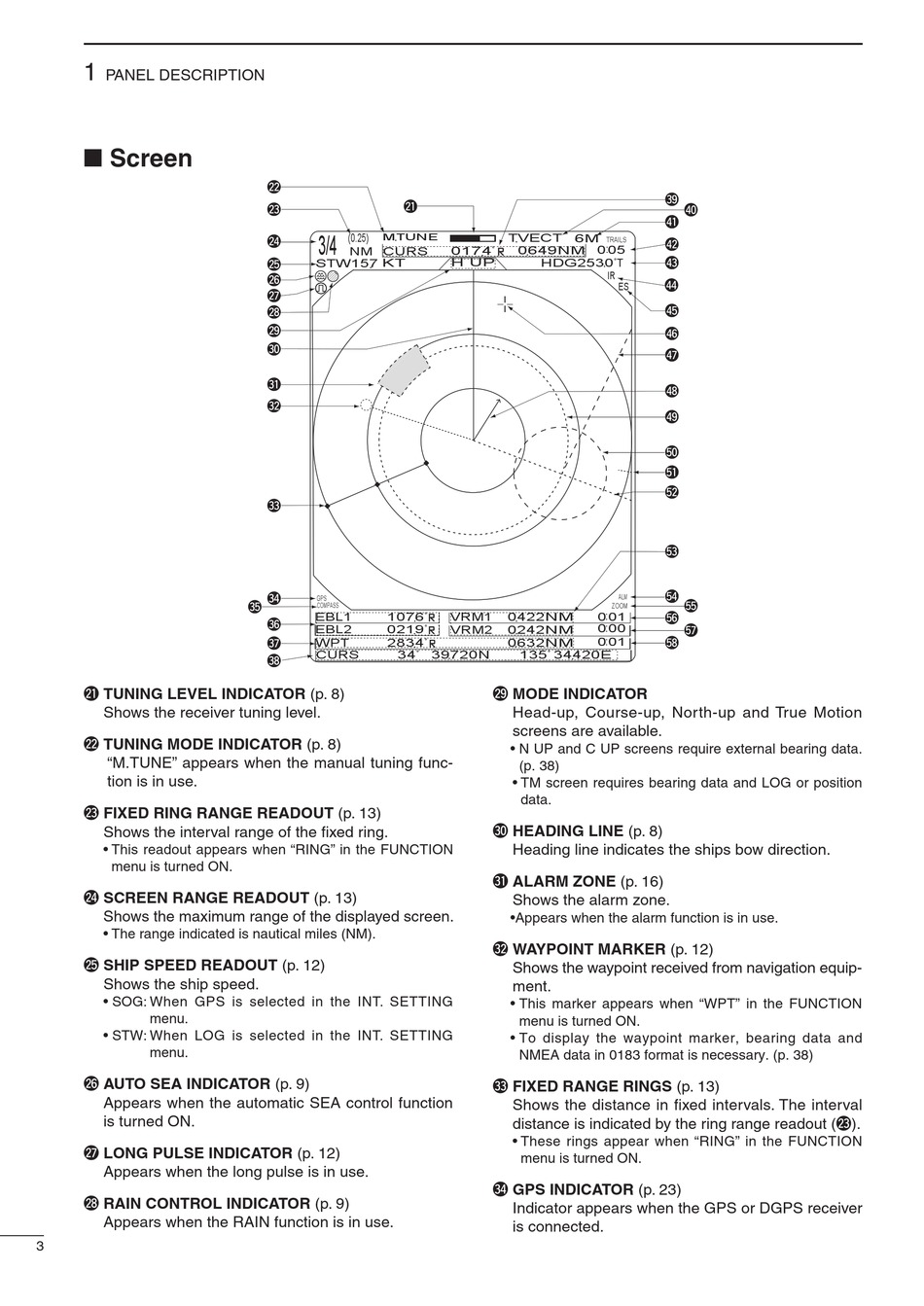

PANEL DESCRIPTION

■ Screen

@1 TUNING LEVEL INDICATOR (p. 8)
Shows the receiver tuning level.
@2 TUNING MODE INDICATOR (p. 8)
"M.TUNE" appears when the manual tuning func-
tion is in use.
@3 FIXED RING RANGE READOUT (p. 13)
Shows the interval range of the fixed ring.
• This readout appears when "RING" in the FUNCTION
menu is turned ON.
@4 SCREEN RANGE READOUT (p. 13)
Shows the maximum range of the displayed screen.
• The range indicated is nautical miles (NM).
@5 SHIP SPEED READOUT (p. 12)
Shows the ship speed.
• SOG: When GPS is selected in the INT. SETTING
menu.
• STW: When LOG is selected in the INT. SETTING
menu.
@6 AUTO SEA INDICATOR (p. 9)
Appears when the automatic SEA control function
is turned ON.
@7 LONG PULSE INDICATOR (p. 12)
Appears when the long pulse is in use.
@8 RAIN CONTROL INDICATOR (p. 9)
Appears when the RAIN function is in use.
3
@2
@1
@3
3/4
(0.25)
MTUNE
@4
NM CURS
STW157 KT
@5
@6
@7
@8
@9
#0
#1
#2
#3
#4
GPS
#5
COMPASS
EBL1
1076˚
#6
EBL2
0219˚
WPT
2834˚
#7
CURS
34˚
#8
TVECT
6M
:
0 05
0174˚R
0649NM
H UP
HDG2530˚T
:
VRM1
0422NM
0 01
:
0 00
VRM2
0242NM
0 01
:
0632NM
39720N
135˚ 34420E
@9 MODE INDICATOR
Head-up, Course-up, North-up and True Motion
screens are available.
• N UP and C UP screens require external bearing data.
(p. 38)
• TM screen requires bearing data and LOG or position
data.
#0 HEADING LINE (p. 8)
Heading line indicates the ships bow direction.
#1 ALARM ZONE (p. 16)
Shows the alarm zone.
•Appears when the alarm function is in use.
#2 WAYPOINT MARKER (p. 12)
Shows the waypoint received from navigation equip-
ment.
• This marker appears when "WPT" in the FUNCTION
menu is turned ON.
• To display the waypoint marker, bearing data and
NMEA data in 0183 format is necessary. (p. 38)
#3 FIXED RANGE RINGS (p. 13)
Shows the distance in fixed intervals. The interval
distance is indicated by the ring range readout (@3 ) .
• These rings appear when "RING" in the FUNCTION
menu is turned ON.
#4 GPS INDICATOR (p. 23)
Indicator appears when the GPS or DGPS receiver
is connected.
#9
$0
$1
TRAILS
$2
$3
IR
$4
ES
$5
$6
$7
$8
$9
%0
%1
%2
%3
%4
ALM
%5
ZOOM
%6
%7
%8
