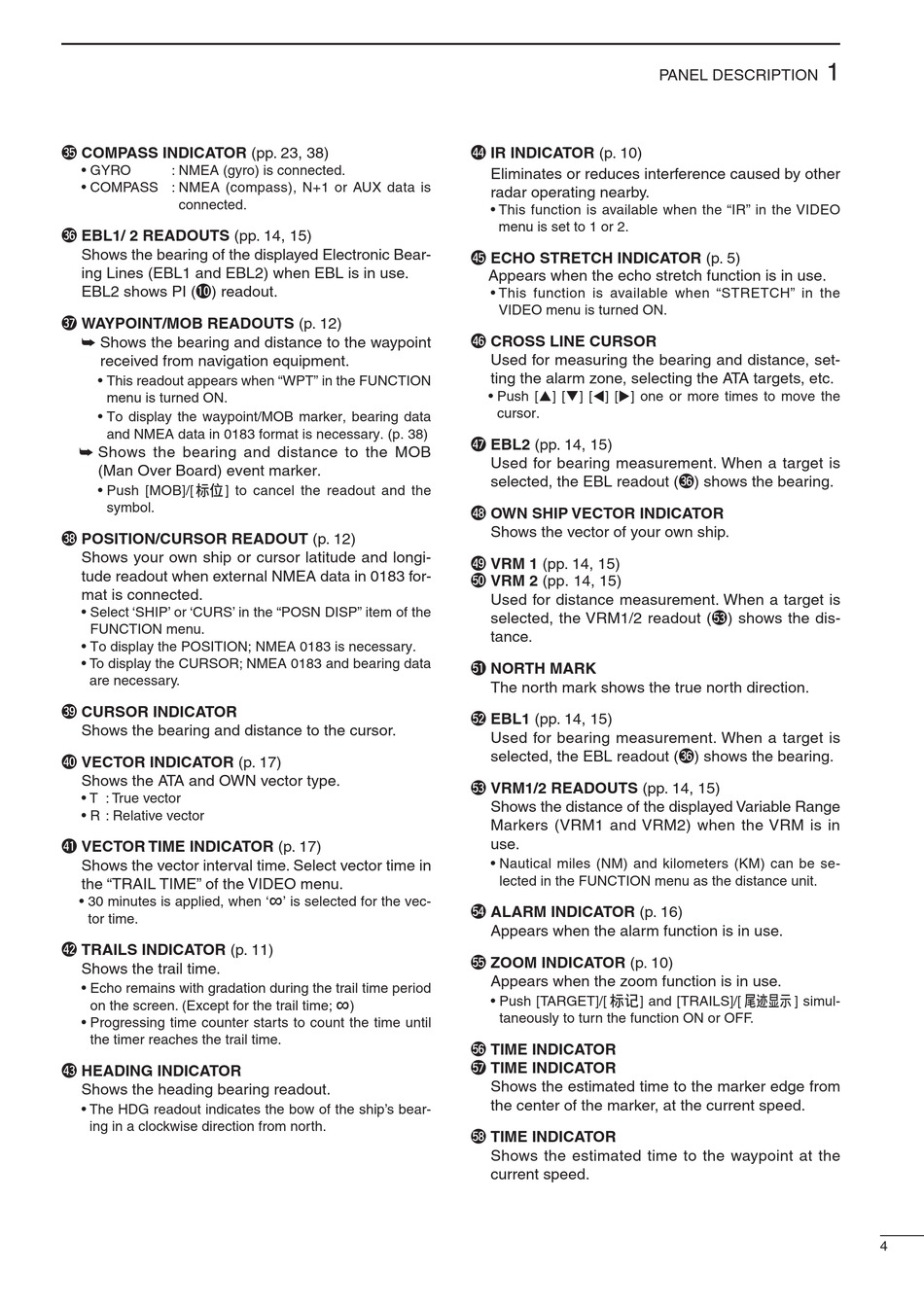

Icom MR-1000RII Instruction Manual page 9

#5 COMPASS INDICATOR (pp. 23, 38)
• GYRO : NMEA (gyro) is connected.
• COMPASS : NMEA (compass), N+1 or AUX data is
connected.
#6 EBL1/ 2 READOUTS (pp. 14, 15)
Shows the bearing of the displayed Electronic Bear-
ing Lines (EBL1 and EBL2) when EBL is in use.
EBL2 shows PI (!0 ) readout.
#7 WAYPOINT/MOB READOUTS (p. 12)
➥ Shows the bearing and distance to the waypoint
received from navigation equipment.
• This readout appears when "WPT" in the FUNCTION
menu is turned ON.
• To display the waypoint/MOB marker, bearing data
and NMEA data in 0183 format is necessary. (p. 38)
➥ Shows the bearing and distance to the MOB
(Man Over Board) event marker.
• Push [MOB]/[ ] to cancel the readout and the
symbol.
#8 POSITION/CURSOR READOUT (p. 12)
Shows your own ship or cursor latitude and longi-
tude readout when external NMEA data in 0183 for-
mat is connected.
• Select 'SHIP' or 'CURS' in the "POSN DISP" item of the
FUNCTION menu.
• To display the POSITION; NMEA 0183 is necessary.
• To display the CURSOR; NMEA 0183 and bearing data
are necessary.
#9 CURSOR INDICATOR
Shows the bearing and distance to the cursor.
$0 VECTOR INDICATOR (p. 17)
Shows the ATA and OWN vector type.
• T : True vector
• R : Relative vector
$1 VECTOR TIME INDICATOR (p. 17)
Shows the vector interval time. Select vector time in
the "TRAIL TIME" of the VIDEO menu.
• 30 minutes is applied, when '
tor time.
$2 TRAILS INDICATOR (p. 11)
Shows the trail time.
• Echo remains with gradation during the trail time period
on the screen. (Except for the trail time;
• Progressing time counter starts to count the time until
the timer reaches the trail time.
$3 HEADING INDICATOR
Shows the heading bearing readout.
• The HDG readout indicates the bow of the ship's bear-
ing in a clockwise direction from north.
∞
' is selected for the vec-
∞
)
$4 IR INDICATOR (p. 10)
Eliminates or reduces interference caused by other
radar operating nearby.
• This function is available when the "IR" in the VIDEO
menu is set to 1 or 2.
$5 ECHO STRETCH INDICATOR (p. 5)
Appears when the echo stretch function is in use.
• This function is available when "STRETCH" in the
VIDEO menu is turned ON.
$6 CROSS LINE CURSOR
Used for measuring the bearing and distance, set-
ting the alarm zone, selecting the ATA targets, etc.
• Push [p] [q] [t] [u] one or more times to move the
cursor.
$7 EBL2 (pp. 14, 15)
Used for bearing measurement. When a target is
selected, the EBL readout (#6 ) shows the bearing.
$8 OWN SHIP VECTOR INDICATOR
Shows the vector of your own ship.
$9 VRM 1 (pp. 14, 15)
%0 VRM 2 (pp. 14, 15)
Used for distance measurement. When a target is
selected, the VRM1/2 readout (%3 ) shows the dis-
tance.
%1 NORTH MARK
The north mark shows the true north direction.
%2 EBL1 (pp. 14, 15)
Used for bearing measurement. When a target is
selected, the EBL readout (#6 ) shows the bearing.
%3 VRM1/2 READOUTS (pp. 14, 15)
Shows the distance of the displayed Variable Range
Markers (VRM1 and VRM2) when the VRM is in
use.
• Nautical miles (NM) and kilometers (KM) can be se-
lected in the FUNCTION menu as the distance unit.
%4 ALARM INDICATOR (p. 16)
Appears when the alarm function is in use.
%5 ZOOM INDICATOR (p. 10)
Appears when the zoom function is in use.
• Push [TARGET]/[ ] and [TRAILS]/[
taneously to turn the function ON or OFF.
%6 TIME INDICATOR
%7 TIME INDICATOR
Shows the estimated time to the marker edge from
the center of the marker, at the current speed.
%8 TIME INDICATOR
Shows the estimated time to the waypoint at the
current speed.
