2

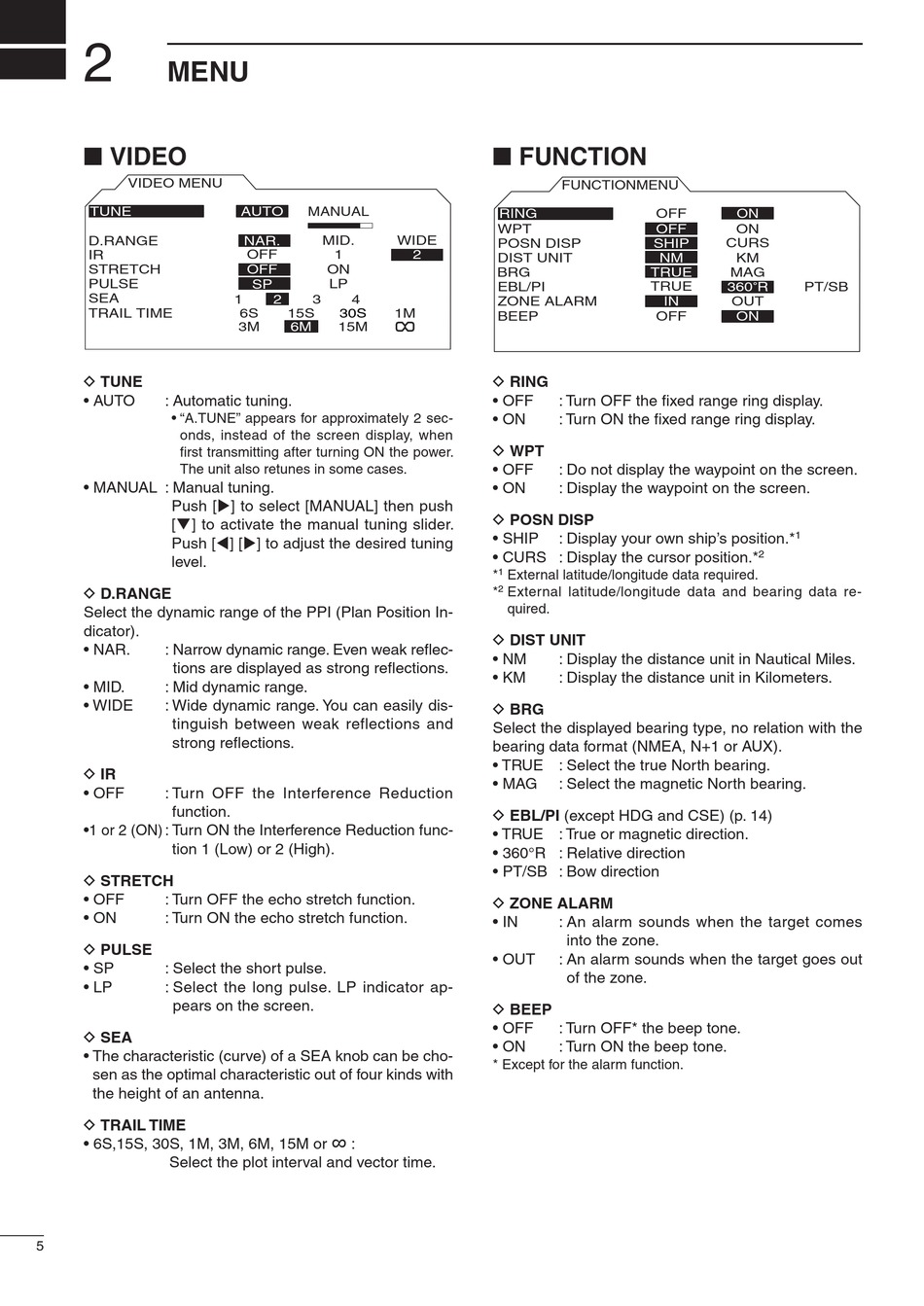

MENU

■ VIDEO

VIDEO MENU
TUNE
D.RANGE
IR
STRETCH
PULSE
SEA
TRAIL TIME
D TUNE
• AUTO : Automatic tuning.
• "A.TUNE" appears for approximately 2 sec-
onds, instead of the screen display, when
first transmitting after turning ON the power.
The unit also retunes in some cases.
• MANUAL : Manual tuning.
Push [u] to select [MANUAL] then push
[q] to activate the manual tuning slider.
Push [t] [u] to adjust the desired tuning
level.
D D.RANGE
Select the dynamic range of the PPI (Plan Position In-
dicator).
• NAR. : Narrow dynamic range. Even weak reflec-
tions are displayed as strong reflections.
• MID. : Mid dynamic range.
• WIDE : Wide dynamic range. You can easily dis-
tinguish between weak reflections and
strong reflections.
D IR
• OFF : Turn OFF the Interference Reduction

function.

•1 or 2 (ON) : Turn ON the Interference Reduction func-
tion 1 (Low) or 2 (High).
D STRETCH
• OFF : Turn OFF the echo stretch function.
• ON : Turn ON the echo stretch function.
D PULSE
• SP : Select the short pulse.
• LP : Select the long pulse. LP indicator ap-
pears on the screen.
D SEA
• The characteristic (curve) of a SEA knob can be cho-
sen as the optimal characteristic out of four kinds with
the height of an antenna.
D TRAIL TIME
• 6S,15S, 30S, 1M, 3M, 6M, 15M or
Select the plot interval and vector time.
5
AUTO
MANUAL
MID. WIDE
NAR.
OFF 1
OFF ON
SP LP
1 2 3 4
6S 15S 30S 1M
3M 6M 15M
∞
:
■ FUNCTION
FUNCTIONMENU
RING
WPT
POSN DISP
2
DIST UNIT
BRG
EBL/PI
ZONE ALARM
BEEP
D RING
• OFF : Turn OFF the fixed range ring display.
• ON : Turn ON the fixed range ring display.
D WPT
• OFF : Do not display the waypoint on the screen.
• ON : Display the waypoint on the screen.
D POSN DISP
• SHIP : Display your own ship's position.*
• CURS : Display the cursor position.*
* 1 External latitude/longitude data required.
* 2 External latitude/longitude data and bearing data re-
quired.
D DIST UNIT
• NM : Display the distance unit in Nautical Miles.
• KM : Display the distance unit in Kilometers.
D BRG
Select the displayed bearing type, no relation with the
bearing data format (NMEA, N+1 or AUX).
• TRUE : Select the true North bearing.
• MAG : Select the magnetic North bearing.
D EBL/PI (except HDG and CSE) (p. 14)
• TRUE : True or magnetic direction.
• 360°R : Relative direction
• PT/SB : Bow direction
D ZONE ALARM
• IN : An alarm sounds when the target comes
into the zone.
• OUT : An alarm sounds when the target goes out
of the zone.
D BEEP
• OFF : Turn OFF* the beep tone.
• ON : Turn ON the beep tone.
* Except for the alarm function.
OFF ON
OFF ON
SHIP CURS
NM KM
TRUE MAG
TRUE 360 ˚ R PT/SB
IN OUT
OFF ON
1
2
