6
ATA (Automatic Tracking Aid)

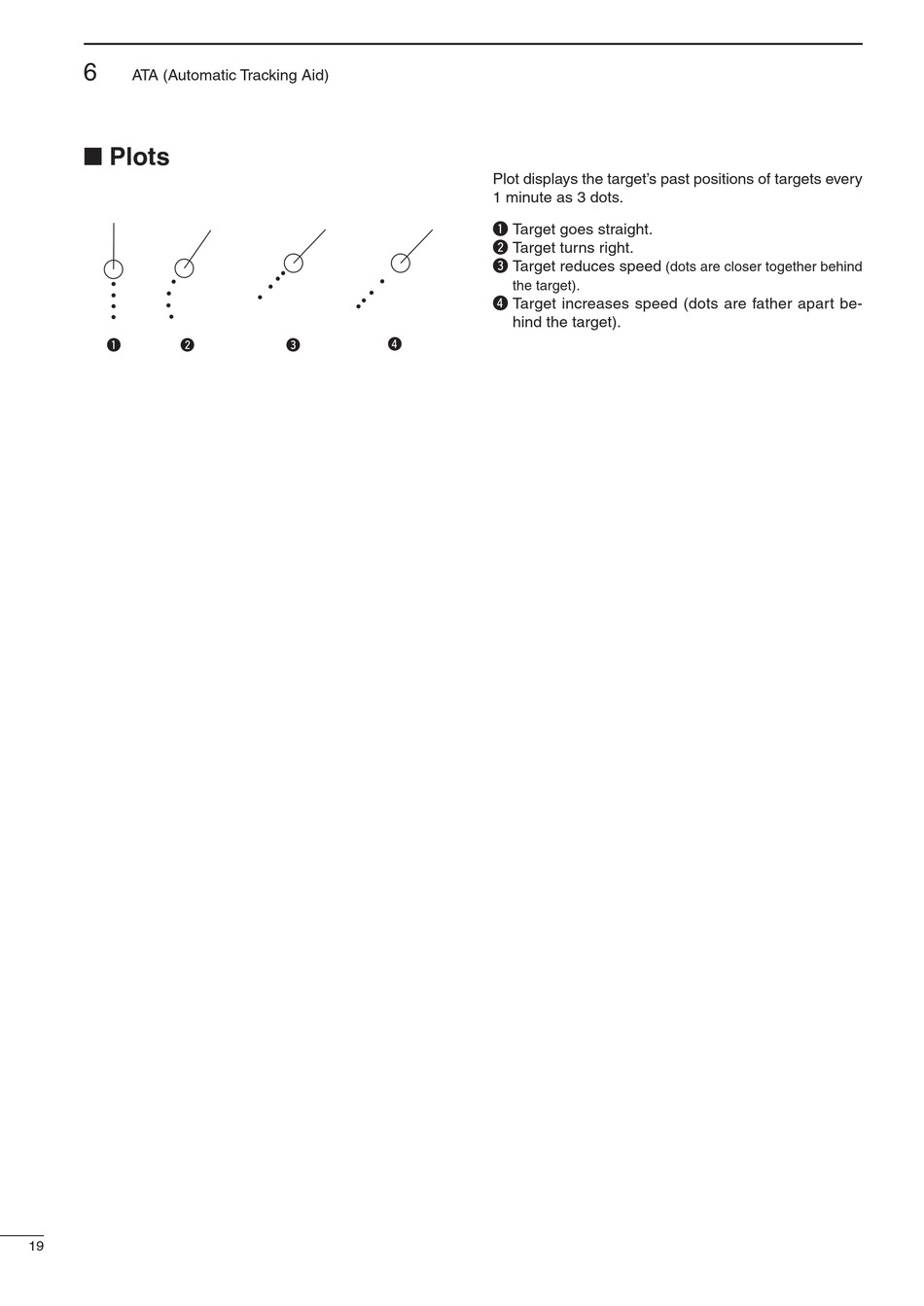

■ Plots
q
w
19
r
e
Plot displays the target's past positions of targets every
1 minute as 3 dots.
q Target goes straight.
w Target turns right.
e Target reduces speed
(dots are closer together behind
the target).
r Target increases speed (dots are father apart be-
hind the target).
