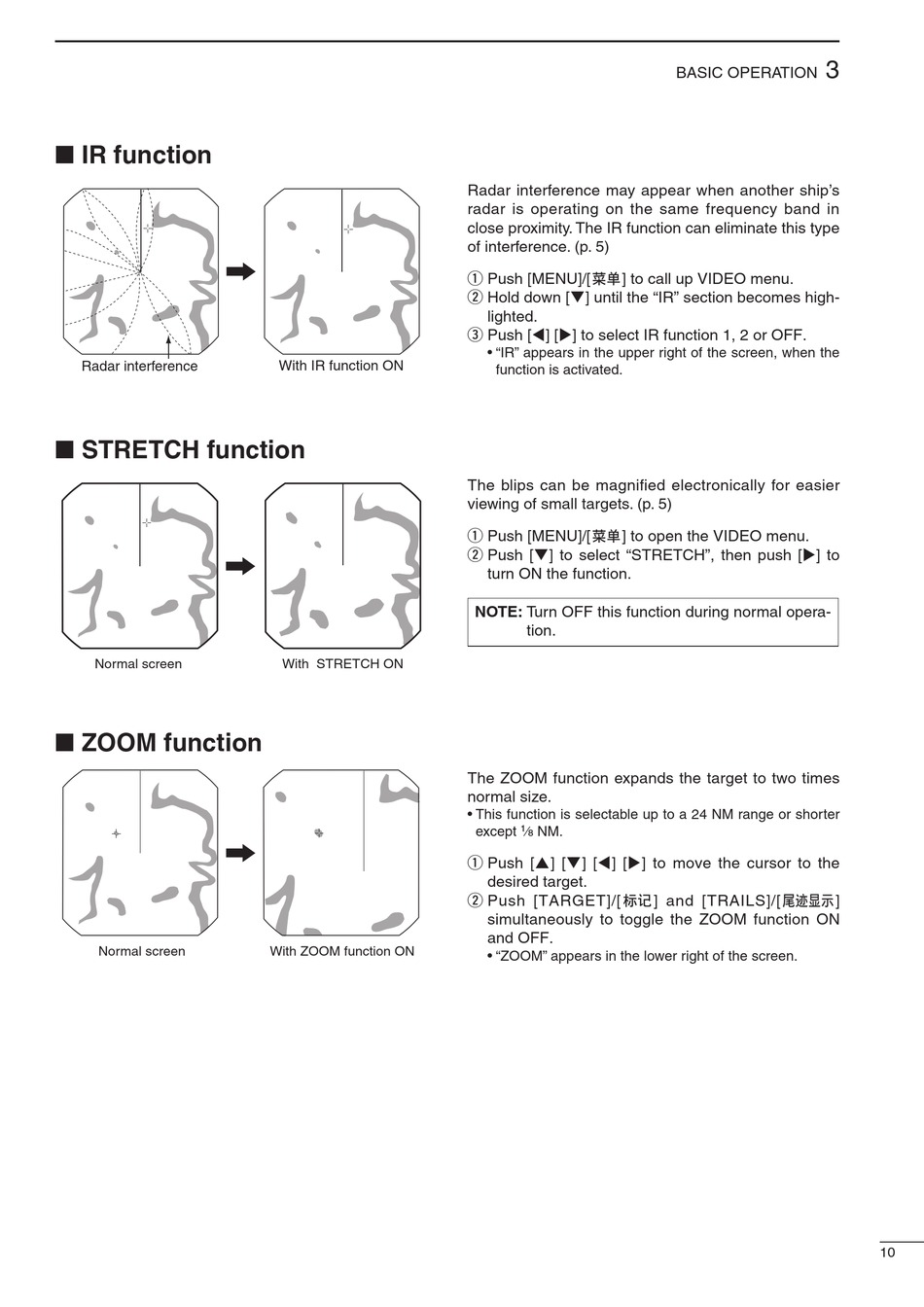

Ir Function; Stretch Function; Zoom Function - Icom MR-1000RII Instruction Manual

■ IR function

Radar interference

■ STRETCH function

Normal screen

■ ZOOM function

Normal screen
With IR function ON
With STRETCH ON
With ZOOM function ON
Radar interference may appear when another ship's
radar is operating on the same frequency band in
close proximity. The IR function can eliminate this type
of interference. (p. 5)
q Push [MENU]/[ ] to call up VIDEO menu.
w Hold down [q] until the "IR" section becomes high-
lighted.
e Push [t] [u] to select IR function 1, 2 or OFF.
• "IR" appears in the upper right of the screen, when the
function is activated.
The blips can be magnified electronically for easier
viewing of small targets. (p. 5)
q Push [MENU]/[ ] to open the VIDEO menu.
w Push [q] to select "STRETCH", then push [u] to
turn ON the function.
NOTE: Turn OFF this function during normal opera-
tion.
The ZOOM function expands the target to two times
normal size.
• This function is selectable up to a 24 NM range or shorter
except 1 ⁄ NM.
8
q Push [p] [q] [t] [u] to move the cursor to the
desired target.
w Push [TARGET]/[
simultaneously to toggle the ZOOM function ON
and OFF.
• "ZOOM" appears in the lower right of the screen.
3
BASIC OPERATION
] and [TRAILS]/[ ]
10
