Figure 4-8. Udp Connection Settings - Lantronix xPico User Manual

Connect Protocol
Protocol
Datagram Mode
Datagram Type
Accept Incoming
Endpoint Configuration
Local Port
Remote Port
Remote Host
Use Broadcast
Device Address Table
xPico User Guide

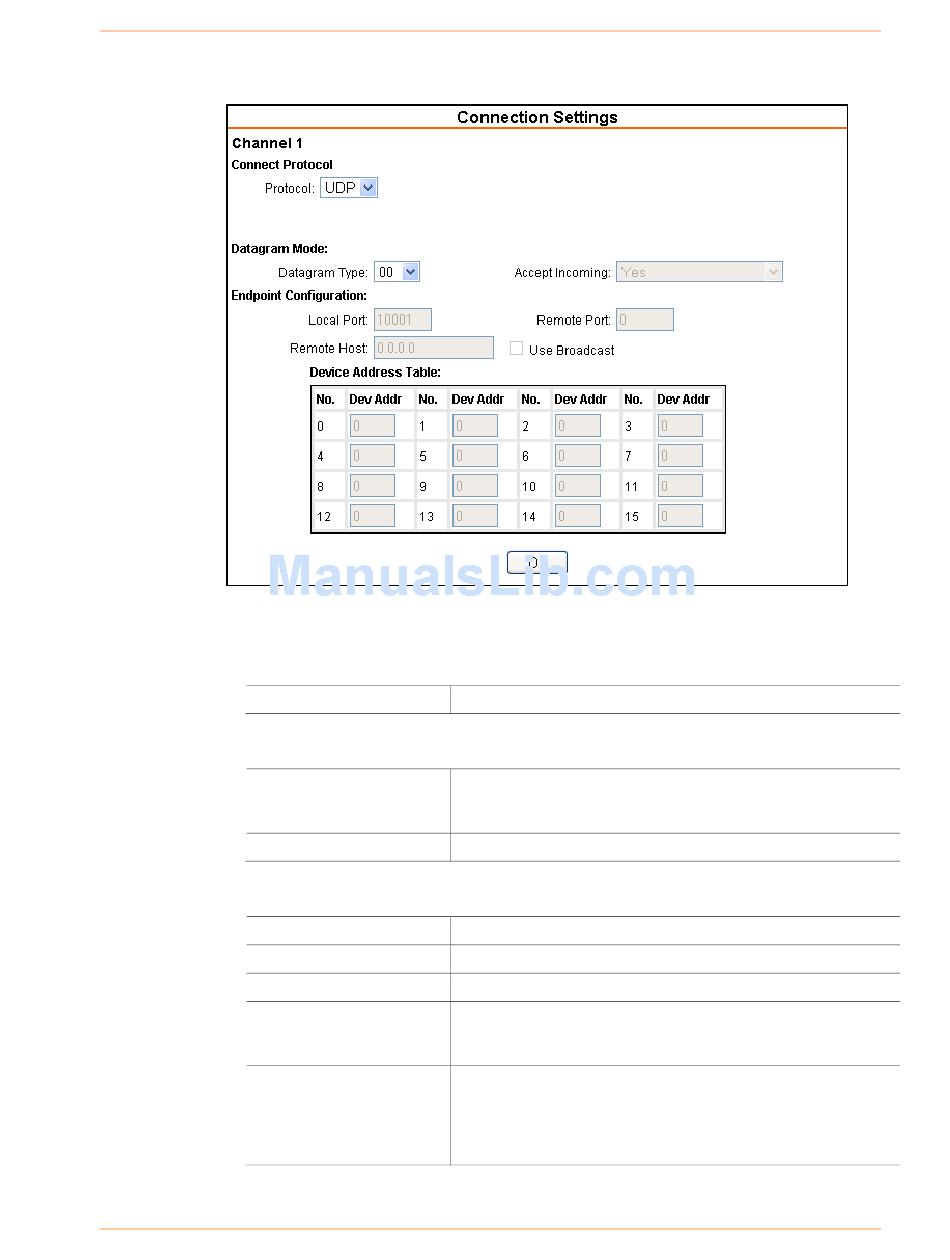

Figure 4-8. UDP Connection Settings

Select UDP from the drop-down menu.
Configures the remote IP or network broadcast address and
the remote port. Enter 01 for directed or broadcast UDP. The
default setting is 00.
Select Yes to accept incoming UDP datagrams.
Enter the local port number.
Enter the port number of the remote device.
Enter the IP address of the remote device.
Select to broadcast the UDP datagram. The default is not to
broadcast.
Note: Datagrams are sent as subnet-directed broadcasts.
The table is enabled when Datagram Type is set to FD. Enter
values between 1 and 255 to identify units on the local
network of device servers.
Note: Lantronix Tech Support supports Datagram type 01.
Datagram Type FD is for OEM use.
