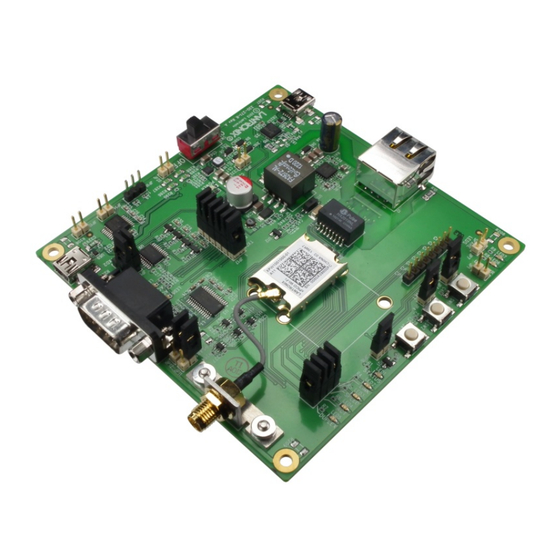

- Page 1 Wi-Fi® Embedded Device Server Evaluation Kit Quick Start Guide Part Number 900-685 Revision A June 2013...
-
Page 2: Copyright And Trademark
Copyright and Trademark © 2013 Lantronix, Inc.. All rights reserved. No part of the contents of this book may be transmitted or reproduced in any form or by any means without the written permission of Lantronix. Lantronix® is a registered trademark of Lantronix, Inc. in the United States and other countries. -
Page 3: Table Of Contents
Hardware Address ___________________________________________________ 5 Evaluation Kit Layout _____________________________________________________ 5 Connecting an xPico Wi-Fi Device __________________________________________ 6 Connecting Power to the xPico Wi-Fi Evaluation Module ______________________ 6 Wireless Connection Using Internal Soft AP _______________________________ 7 QuickConnect _______________________________________________________ 9 Reference Documentation ________________________________________________ 11... -
Page 4: Introduction
Wi-Fi (XPW1001000-01) and xPico (wired Ethernet) (XPC1001000-01) modules. This quick start guide describes the procedures for initial connection to the xPico Wi-Fi device through a network connection. Once a connection is established you can use the Web Manager for configuration and control. -
Page 5: What You Need To Know
Serial Number to uniquely identify the unit. This number is located on the product label in the format SN: YYYYYYXXXXXX-, where the YY represents the Lantronix OUI and XXs are unique numbers within that OUI namespace assigned to the product. -
Page 6: Connecting An Xpico Wi-Fi Device
2. Connect the USB to serial converter port J5 to a PC USB host port 3. Connect the USB device port J6 to a PC USB Host Port (xPico Wi-Fi only) 4. Connect a battery pack or external power supply (2.2V to 5.5V) between JP19 pin 1 (+) and JP19 pin 2 (-) 5. -
Page 7: Wireless Connection Using Internal Soft Ap
Eval Board. If the PCB antenna is to be used, the wire between the xPico Wi-Fi module u.FL connector and the on-board SMA connector has to be carefully disconnected and the plug on the PCB strip antenna should be inserted. - Page 8 By clicking Network > Network 1 > Link to get to the Configuration page, the SSID, Security Suite Type and Security and passphrase can be modified. Modification to any of these parameters requires a reset/power cycle of the module in order to take effect. xPico™ Wi-Fi® Embedded Device Server Evaluation Kit Quick Start Guide...
-
Page 9: Quickconnect
Passphrase: ________________________________ QuickConnect QuickConnect offers the ability to configure the STA (WLAN Client) interface on xPico WiFi to establish connection to an active Access Point. QuickConnect learns most of the connection properties from the available Access Points and prompts the user only for the security parameters and saves the settings under a corresponding new/existing WLAN profile for future autonomous operation of the WLAN Client interface. - Page 10 Upon selection of the QuickConnect option, the xPico Wi-Fi scans and displays up to 20 wireless devices in order of strongest signal strength at the top. Click on a network name to view the connection to that desired Access Point.
-
Page 11: Reference Documentation
Click the new WLAN profile to view and modify settings. Reference Documentation For more information on the use and operation of the xPico Wi-Fi Device Server please refer to the latest product documents which are are available on the Product Website.
