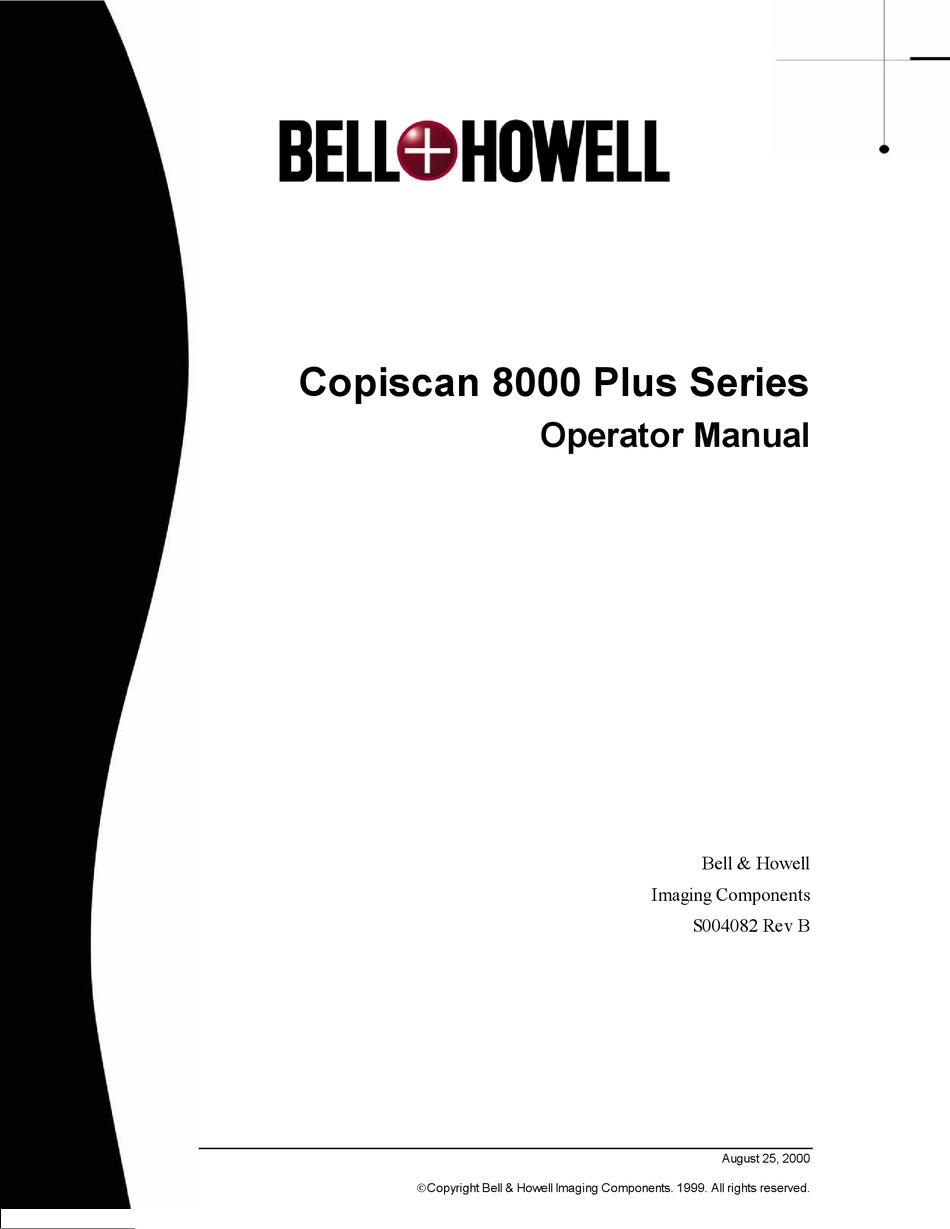

Copiscan 8000 Plus Series
Operator Manual
Bell & Howell
Imaging Components
S004082 Rev B
R
August 25, 2000
Copyright Bell & Howell Imaging Components. 1999. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Copiscan 8000 Plus Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bell and Howell Copiscan 8000 Plus Series

Summary of Contents for Bell and Howell Copiscan 8000 Plus Series

  • Page 1 Copiscan 8000 Plus Series Operator Manual Bell & Howell Imaging Components S004082 Rev B August 25, 2000 Copyright Bell & Howell Imaging Components. 1999. All rights reserved.

  • Page 2: Contact Information

    Copiscan 8000 Plus Series Operator Manual Contact Information Technical support is available over the phone or the Internet at no charge. To contact us, send an e-mail to: scanner.support@is.bellhowell.com or call 1-800-SCAN495. For sales, call 1-800-SCAN494. Fax: 1-847-933-3252 US Facility Bell &...
  • Page 3 Copiscan 8000 Plus Series Operator Manual Canadian Department of Communications Compliance Statement This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the radio interference regulations of the Canadian Department of Communications.

  • Page 4: Table Of Contents

    Copiscan 8000 Plus Series Operator Manual Table of Contents CONTACT INFORMATION.................... I INTRODUCTION ......................1 ................1 OW THIS ANUAL IS RGANIZED ................3 YMBOLS HOULD ....................3 AFETY UIDELINES OPERATIONAL OVERVIEW.................5 ..................6 RONT OF THE CANNER 2.1.1 Feeder ......................6 2.1.2 Exit Tray ......................7 2.1.3...
  • Page 5 Copiscan 8000 Plus Series Operator Manual 5.1.2 Turning the Scanner Off................22 ....................23 ONTROL ANEL 5.2.1 Control Panel Buttons ...................24 5.2.1.1 MULTIFEED IGNORE ................24 5.2.1.2 CLEANING MENU...................24 5.2.1.3 BATCH COUNTER RESET..............25 5.2.1.4 F1 .......................25 5.2.1.5 F2 .......................25 5.2.1.6 F3 .......................25 5.2.1.7 LEFT......................25...
  • Page 6 Copiscan 8000 Plus Series Operator Manual 5.3.3.4 Enabling Deskew..................35 5.3.3.5 Enabling Auto Balance (Video Units Only) ..........35 5.3.3.6 Setting Multifeed Detection Parameters ............36 5.3.3.7 SCSI Setup....................36 5.3.4 Adjusting the Feeder Guides .................37 5.3.5 Using the Feeder Extension Tray..............38 5.3.6 Document Stacking in the Exit Tray..............39 ....................42...
  • Page 7 Copiscan 8000 Plus Series Operator Manual ..............62 LEANING THE KIMMER OLLERS ...............64 LEANING THE RANSPORT ................64 LEANING THE ENSORS ................66 LEANING THE EEDER ENSOR ...............67 LEANING AND EPLACING THE AMPS ........69 EMOVING AND EPLACING THE KIMMER SSEMBLY 6.10 .............71 EPLACING THE...

  • Page 8: List Of Tables

    Copiscan 8000 Plus Series Operator Manual 22. A ....................39 IGURE TTACHING THE XTENSION 23. E ......................39 IGURE XTENSION TTACHED 24. S ........................ 40 IGURE ETTING THE 25. V ..................40 IGURE ARIOUS OSITIONS OF THE 26. A ..................41...

  • Page 9: Introduction

    Copiscan 8000 Plus Series Operator Manual 1. Introduction The Copiscan 8000 Plus Series scanner is designed to handle heavy workloads and harsh production environments. The scanner requires minimal operator adjustments, has self- calibrating cameras and self-adjusting lamps, as well as a self-diagnostic exam at start up.
  • Page 10 Copiscan 8000 Plus Series Operator Manual requirements for optimum scanner use. • Section 4, Installation The fourth section contains the procedures for unpacking and setting up the scanner for use. • Section 5, Operation The fifth section describes how to run your scanner.

  • Page 11: Symbols You Should Know

    Copiscan 8000 Plus Series Operator Manual Symbols You Should Know You will see three types of symbols in this manual: a warning symbol, a caution symbol, and a note symbol. Each time a symbol appears in the manual, it is followed by important information that you should read carefully.
  • Page 12 Copiscan 8000 Plus Series Operator Manual • Do not remove the feeder. Only qualified personnel should remove the feeder. NOTE: When the side panel of the scanner is opened, a safety interlock removes power from the transport circuitry before any hazardous parts are accessible. This interlock protects the user from the possibility of the transport running while the user panel is open.

  • Page 13: Operational Overview

    Copiscan 8000 Plus Series Operator Manual 2. Operational Overview Figure 1. Copiscan 8000 Plus Series Scanner NOTE: This manual assumes that you have a duplex scanner. Separate procedures will be indicated for simplex scanners where procedures are different. The scanner uses internal cameras to capture and digitize both sides of a document in a single pass through its paper path.

  • Page 14: Front Of The Scanner

    Copiscan 8000 Plus Series Operator Manual As documents travel through the transport, they are guided by seven sets of transport rollers. Documents are delivered to the stacking surface on the exit tray, while the scanner maintains the original document feed sequence. Both the feeding and retrieval of documents are executed from the front of the scanner.

  • Page 15: Exit Tray

    Copiscan 8000 Plus Series Operator Manual protrudes at a slight angle from the front of the scanner. When the scanner receives a scan command, the scanner takes one document at time from the stack into its transport system. The feeder has two adjustable guides that keep the documents in an orderly stack, thereby preventing them from entering the scanner at an angle, which could cause scanner jams or multifeeds.

  • Page 16: Power Switch

    Copiscan 8000 Plus Series Operator Manual The following figure illustrates the scanner’s rear panel and points out where its key components are located. Figure 3. Rear View of Scanner The table below provides a legend for the above figure. Host Interface, 37 PIN Video Connection or SCSI II Interface...

  • Page 17: Diagnostic Interface

    Copiscan 8000 Plus Series Operator Manual The cord that connects to this receptacle also connects to the host computer so that the scanner can receive commands from the host and the host can receive document images from the scanner. 2.2.4 Diagnostic Interface This is for service personnel use only.

  • Page 18: Scanner Specifications

    Copiscan 8000 Plus Series Operator Manual 3. Scanner Specifications Copiscan 8000 Plus Series Specifications Model Type Copiscan 8080S, 8080D, 8100D, 8125D Resolution 200-400 dpi, scaleable in 20 dpi increments Document Sizes ADF Mode: Manual Mode: Min. 2.6” (w) x 2.6” (l) Min.

  • Page 19: Scanner Environment

    Copiscan 8000 Plus Series Operator Manual For SCSI configuration, we recommend that you have the following: • PC host with minimum 32 Mb RAM, 166 MHz Pentium processor or equivalent • Adaptec 154X SCSI card or better; if in Windows environment, utilize Windows ASPI driver.

  • Page 20: Installation

    Copiscan 8000 Plus Series Operator Manual 4. Installation This section covers the unpacking and installation of your scanner. No tools are required for the installation. Please follow the instructions carefully. It should take about fifteen minutes to install the scanner.

  • Page 21: Figure 5. Lifting The Box Off The Scanner

    Copiscan 8000 Plus Series Operator Manual CAUTION: Do not lift the scanner by its feeder (in front). Lift it from beneath its sides. Take the following steps to unpack the scanner: 1. Inspect the shipping cartons and their contents for any signs of damage. Lift the box off of the scanner.

  • Page 22: Figure 6. Scanner Packaging

    Copiscan 8000 Plus Series Operator Manual Figure 6. Scanner Packaging 2. Remove the plastic shipping bag and the packaging inserts from on top of the scanner. Remove the scanner accessories from the cut-outs in the packaging inserts. www.bellhowell.imagingcomponents.com August 25, 2000...

  • Page 23: Figure 7. Scanner After Removing Top Packaging Material

    Copiscan 8000 Plus Series Operator Manual Figure 7. Scanner After Removing Top Packaging Material 3. With another person, grasp the scanner firmly underneath each side and lift it from the shipping carton. Figure 8. Two People Lifting the Scanner Off the Skid 4.

  • Page 24: Repacking The Scanner

    Copiscan 8000 Plus Series Operator Manual 5. Read Section 3.1, Recommended System Configuration Guidelines and Section 3.2, Scanner Environment in this manual before you go any further with the scanner setup. 4.1.1 Repacking the Scanner If for any reason, you find you need to repack the scanner, carefully follow the...

  • Page 25: Figure 10. Scanner, After Replacing The Scanner Accessories

    Copiscan 8000 Plus Series Operator Manual Figure 10. Scanner, After Replacing the Scanner Accessories Figure 11. Scanner, After Replacing the Packaging Material www.bellhowell.imagingcomponents.com August 25, 2000 1-800-SCAN495...

  • Page 26: What You Should Have Received

    6. Strap the scanner box to the skid with strapping material. What You Should Have Received The following items are included in each shipment: • Copiscan 8000 Plus Series scanner with feeder and exit tray • Power cord (US Domestic or International) • 8000 Plus CD which includes: Copiscan 8000 Plus Series Operator Manual Copiscan ISIS &...

  • Page 27: How To Reorder Scanner Consumables

    Copiscan 8000 Plus Series Operator Manual Deluxe models also include the following items: • Color dropout filters • Imprinter cartridge 4.2.1 How to Reorder Scanner Consumables Use the Reorder Fax Sheet on the 8000 Plus CD to reorder all scanner consumable items and/or maintenance kits.

  • Page 28: Figure 14. Connecting The Scanner To The Host

    Copiscan 8000 Plus Series Operator Manual Take the following steps to connect the scanner to the host: 1. Connect the interface cable supplied with the host to the connector on the back of the scanner. Figure 14. Connecting the Scanner to the Host 2.

  • Page 29: Operation

    Copiscan 8000 Plus Series Operator Manual 5. Operation Before you begin to scan documents, there are some functions of the scanner you should know. This section shows you how to turn the scanner on and off, how to read the control panel display, and how to use the function keys.

  • Page 30: Turning The Scanner Off

    Copiscan 8000 Plus Series Operator Manual BACK GP BOARDS WARMING UP… 8000 AUTO FEED When initialization is complete, the scanner steadily displays a READY message. Refer to Section 5.2.2, Control Panel Display for an explanation of these messages and the home menu.

  • Page 31: Control Panel

    Copiscan 8000 Plus Series Operator Manual Control Panel The control panel is your interface to the scanner system. It contains 13 buttons that control basic operation and a two line display. Figure 15. Control Panel MULTIFEED IGNORE CLEANING MENU BATCH COUNTER RESET...

  • Page 32: Control Panel Buttons

    Copiscan 8000 Plus Series Operator Manual 5.2.1 Control Panel Buttons The following subsections detail each control panel button and its function. 5.2.1.1 MULTIFEED IGNORE Figure 16. Multifeed Error Figure 17. READY Menu with Multifeed Ignore Enabled MULTIFEED IGNORE allows a page that would normally trigger a multifeed error to be fed.

  • Page 33: Batch Counter Reset

    Copiscan 8000 Plus Series Operator Manual 5.2.1.3 BATCH COUNTER RESET The BATCH COUNTER RESET button allows you to reset the page/batch counter. This counter appears in the upper right corner of the control panel display. The BATCH COUNTER RESET button is active only when the scanner is in READY mode.

  • Page 34: Clear

    Copiscan 8000 Plus Series Operator Manual 5.2.1.12 CLEAR Press the CLEAR button after taking action to correct errors. For example, a paper jam error requires the transport to be free of paper before the error can be cleared. When navigating the menu system, pressing the CLEAR key always returns the display to the READY menu.

  • Page 35: Scanner Initializing

    Copiscan 8000 Plus Series Operator Manual The scanner can be in one of seven states: Scanner State Description SCANNER INITIALIZING Going through the power up sequence READY Waiting for a command from the host SCANNING Executing a host command STOPPED...

  • Page 36: Ready

    Copiscan 8000 Plus Series Operator Manual When initialization is complete, the scanner steadily displays a READY message. 5.2.2.2 READY The READY menu is the first menu displayed after initialization is complete. It displays information on the current configuration of the scanner and provides key information during the scanning process.

  • Page 37: Blinking Bulb Icon

    Copiscan 8000 Plus Series Operator Manual 5.2.2.6 Blinking Bulb Icon If you see this display on the control panel menu ( ), the lamps are wearing out. Place an order for new lamps from Bell & Howell by using the Reorder Fax Sheet included on the 8000 Plus CD or by visiting our online store at www.bellhowell.imagingcomponents.com.

  • Page 38: Determining Width, Length, And Thickness

    Copiscan 8000 Plus Series Operator Manual 5.3.2.1 Determining Width, Length, and Thickness The scanner can scan documents that fall within the range of specifications in the table below: Mode Width Length Thickness Minimum Maximum Minimum Maximum Minimum Maximum 2.6” 11.7”...

  • Page 39: Setting Ace Image Enhancement

    Copiscan 8000 Plus Series Operator Manual 5.3.3.1 Setting ACE Image Enhancement NOTE: If you are using VRS, refer to the VRS Getting Started Guide. ACE 3.0, Bell & Howell’s latest image enhancement capabilities, has been optimized for scanning. For this reason, the ACE settings have been established to enable you to generate the best images for your particular documents.
  • Page 40 Copiscan 8000 Plus Series Operator Manual NOTE: Not all parameters may be supported by your application software. 5. Begin to set the other parameters by following the directions and the menus below. 6. Using the RIGHT key, scroll through the menus and stop at the ACE mode menu.

  • Page 41: Figure 19. Menu Flow

    Copiscan 8000 Plus Series Operator Manual The menu below provide you with a guide for setting scanner parameters: Download new software? Download new software Updating software... Press F1 to confirm < > SCANNER SCSI CANCEL Power cycle when done ISV Select able Model Only...

  • Page 42: Adf And Manual Modes

    Copiscan 8000 Plus Series Operator Manual 5.3.3.2 ADF and Manual Modes The scanner can be set in two different paper feeding modes, ADF (Automatic Document Feed) mode and MANUAL FEED mode. Use ADF mode when you are feeding documents that are similar in size, weight, and color density. Use the MANUAL FEED mode when feeding mixed batch applications, or documents that are different sizes and weights.

  • Page 43: Setting Up The Sensors For Hole-Punched Paper

    Copiscan 8000 Plus Series Operator Manual NOTE: Scanning in Manual mode automatically turns off the multifeed detector. 5.3.3.3 Setting Up the Sensors for Hole-Punched Paper The entry and exit sensors can be adjusted to ignore holes on the leading or trailing edge of a document that may cause the scanner to detect false starting or trailing edges of the document.

  • Page 44: Setting Multifeed Detection Parameters

    Copiscan 8000 Plus Series Operator Manual 3. Press the +/- keys to select ENABLED or DISABLED. 4. Press the CLEAR button on the scanner to exit and return to the READY mode. 5.3.3.6 Setting Multifeed Detection Parameters The multifeed detector uses ultrasonic technology to sense air gaps between documents.

  • Page 45: Adjusting The Feeder Guides

    Copiscan 8000 Plus Series Operator Manual NOTE: 7 is usually designated for the host SCSI adapter. The default value for the scanner is 3. Press F3 NEXT until you reach the SCSI TERMINATION menu. The menu displays whether active termination is on or off.

  • Page 46: Using The Feeder Extension Tray

    Copiscan 8000 Plus Series Operator Manual Figure 20. Adjusting the Feeder Guides 5.3.5 Using the Feeder Extension Tray For added support of the document stack, attach the feeder tray extension according to the procedure below: 1. Place your fingers on the bottom of the extension, with your thumbs on the top where it meets the feeder tray.

  • Page 47: Document Stacking In The Exit Tray

    Copiscan 8000 Plus Series Operator Manual Figure 22. Attaching the Extension Tray Figure 23. Extension Tray Attached 5.3.6 Document Stacking in the Exit Tray As documents leave the scanner, they are returned face down in the exit tray in their original stacking order.

  • Page 48: Figure 24. Setting The Exit Tray

    Copiscan 8000 Plus Series Operator Manual Figure 24. Setting the Exit Tray Figure 25. Various Positions of the Exit Tray Like the automatic feeder, the exit tray has document guides, called side guides. The side guides should be adjusted for the width of the documents being scanned.

  • Page 49: Figure 27. Adjusting The Short

    Copiscan 8000 Plus Series Operator Manual Figure 26. Adjusting the Exit Tray Side Guides To adjust the document side guides, take the following steps: 1. Grasp the top of the side guides and gently slide them in the grooves. 2. Set the guides slightly wider than the width of the documents to ensure that the documents do not bind on the guides.

  • Page 50: Deluxe Features

    Copiscan 8000 Plus Series Operator Manual Figure 28. Sliding out the Exit Tray Extension 4. If you are going to scan any documents longer than 11”, slide out the extension located in the middle of the exit tray to accommodate them.

  • Page 51: Installing The Color Dropout Filters

    Copiscan 8000 Plus Series Operator Manual 5.4.1.1 Installing the Color Dropout Filters Figure 29. Color Dropout Filter The following is a legend for the above figure: Label Glass Stop Handle NOTE: Handle the filters with care, as you would handle a camera lens. Be careful not to scratch the filters.

  • Page 52: Figure 30. Front Dropout Slot

    Copiscan 8000 Plus Series Operator Manual Figure 30. Front Dropout Slot 4. Place the chosen filter into the front dropout slot, with the stop faced upward. 5. Slide the filter into the front dropout slot, making sure it goes through the gold-colored guide inside the slot.

  • Page 53: Figure 32. Back

    Copiscan 8000 Plus Series Operator Manual Figure 32. Back Page Dropout Slot 9. Slide the filter into the back dropout slot, making sure it goes through the gold-colored guide inside the slot. 10. Push the filter in until it stops. You should see about an inch of the handle of the filter (with the label) sticking out of the slot.

  • Page 54: Imprinter Operation

    Copiscan 8000 Plus Series Operator Manual NOTE: You may need to readjust the ACE setting once you have followed the above procedure. Refer to Section 5.3.3.1, Setting ACE Image Enhancement. 5.4.2 Imprinter Operation The factory-installed imprinter option includes a circuit board that controls an ink-jet print head.

  • Page 55: Print Characteristics

    Copiscan 8000 Plus Series Operator Manual 5.4.2.2 Print Characteristics Paper Definition Low-grade (shipper) to regular bond documents can be used. NOTE: Glossy paper should NOT be used, as the ink drying time is too long for this type of paper and smearing will result.

  • Page 56: Setting The Print String From The Scanner Control Panel

    Copiscan 8000 Plus Series Operator Manual 5.4.2.3 Setting the Print String from the Scanner Control Panel The imprinter can be controlled from the scanner control panel by using the three arrow keys and three function keys to navigate through the menu.
  • Page 57 Copiscan 8000 Plus Series Operator Manual COPISCAN 8000 # 000000”   Base String Index String Printing of the base string BASE (F1) and index string INDEX (F2) can be independently enabled or disabled using the ON/OFF (F3) key. However, if both are set to OFF, the imprinter cannot be turned ON.

  • Page 58: Setting The Imprint Font Attributes

    Copiscan 8000 Plus Series Operator Manual 5.4.2.5 Setting the Imprint Font Attributes NOTE: The imprinter must be off to change font settings. Press the UP key to get the SET TEXT TO BE PRINTED menu. Select FONT (F2) to set the font attributes.

  • Page 59: Setting The Imprinter Mechanism

    Copiscan 8000 Plus Series Operator Manual The imprint string can begin immediately as a document gets scanned, or up to 13.5” after the leading edge of the document and can be adjusted in 0.1” increments. Use the +/- keys to set the delay.

  • Page 60: Testing The Imprint String

    Copiscan 8000 Plus Series Operator Manual 1. From the READY menu (press the CLEAR button), press the RIGHT key to get to the FRONT IMPRINTER menu. 2. Select ON (F1) to turn on the imprinter. 3. Select CLEAN (F3). 4. If you are ready to test the imprinter, insert a document in the feeder and flip down the skimmer module nosepiece.

  • Page 61: Enabling And Disabling The Imprinter

    Copiscan 8000 Plus Series Operator Manual NOTE: Your host application software will override the settings that you have just made. 1. Insert a sample document into the feeder and initiate a scan. 2. Your imprint string should be on the document after it is scanned. Make sure that the imprint string is in the appropriate location before beginning your scanning application.

  • Page 62: Scanning Documents

    Copiscan 8000 Plus Series Operator Manual locations, plus the SERVICE position. The four positions are left of center, and can be identified by subtle “stops” as the handle is moved from left to right. These “stops” line up the imprinter print head with each print hole located in the scanner transport. The imprinter prints through each print hole when lined appropriately.

  • Page 63: Scanning A Full Batch Of Documents

    Copiscan 8000 Plus Series Operator Manual 2. Place a single document that is representative of what you are going to scan in the feeder tray. 3. Lower the skimmer assembly so that the tray rises. 4. Using your application software, enter a single document scan command according to the procedure provided by the software manufacturer.

  • Page 64: Document Skew

    Copiscan 8000 Plus Series Operator Manual NOTE: Some documents, such as folded card stock or laminated documents, may trigger the multifeed alarm. You may ignore the audible multifeed alarm if you believe that it was caused by one of these document types.

  • Page 65: Figure 33. Opening The Transport

    Copiscan 8000 Plus Series Operator Manual Figure 33. Opening the Transport Figure 34. Clearing a Jam 3. Locate the paper jam and observe the location of the leading edge of the jammed sheet. 4. Remove the sheet or sheets that jammed and inspect the steel trays for debris that might have caused the jam.

  • Page 66: Operator Maintenance

    Copiscan 8000 Plus Series Operator Manual 6. Operator Maintenance To get the best operation from your scanner, regularly maintain the unit. This section lists the scanner maintenance tasks that must be performed on a daily, weekly, monthly, or yearly basis.

  • Page 67: Perpetual Counters

    Copiscan 8000 Plus Series Operator Manual Perpetual Counters The scanner has a perpetual page counter and a perpetual hour counter. The page counter records the total pages that have been scanned in the scanner’s lifetime, while the hour counter records how many hours the scanner has been powered up.

  • Page 68: Removing The Glass Flat For Replacement Or For Cleaning Both Sides

    Copiscan 8000 Plus Series Operator Manual NOTE: When the scanner transport is opened, a safety interlock removes power from the transport motor before any hazardous parts are accessible. 1. Open the transport with the lift-handle on the lower right side of the control panel, opening it as high as it will rise.

  • Page 69: Figure 37. Removing The Glassf

    Copiscan 8000 Plus Series Operator Manual Figure 37. Removing the Glass Flat 3. Push down on the left end of the glass and slide the glass to the right until you see the edge of the glass flat on the left side. The glass flat will slightly lift away from the metal tray for you to grasp it.

  • Page 70: Cleaning The Skimmer Rollers

    Copiscan 8000 Plus Series Operator Manual Figure 38. Replacing the Glass Flat 7. Insert the glass flat into the left end first, pressing down against the spring and guiding the tip about 1/2” into the machine. This enables the other end of the glass to swing down and rest easily into the groove.

  • Page 71: Figure 39. Spraying The Skimmer

    Copiscan 8000 Plus Series Operator Manual 5. Using the rubber tire cleaner (Maintenance Kit Item #6), spray the center leading edge of one skimmer cleaning sheet (Maintenance Kit Item #7). Figure 39. Spraying the Skimmer Cleaning Sheet 6. Place the skimmer cleaning sheet in the feeder, holding the back of the page with one hand.

  • Page 72: Cleaning The Transport Area

    Copiscan 8000 Plus Series Operator Manual 10. Remove the skimmer cleaning sheet from the exit tray. 11. Repeat step 8 two to three times. 12. Press the STOP key, and then the CLEAR key. 13. Discard the used skimmer cleaning sheet.

  • Page 73: Figure 41. Entry

    Copiscan 8000 Plus Series Operator Manual Take the following steps to clean the page sensors: 1. Turn OFF the scanner. 2. Remove any documents in the exit tray. 3. Open the transport with the lift-handle on the lower right side of the control panel, opening as high as it will rise.

  • Page 74: Cleaning The Feeder Sensor

    Copiscan 8000 Plus Series Operator Manual Figure 42. Exit Page Sensor Transmit Locations Figure 43. Exit Page Receiver Sensor Locations 5. Close the transport. Cleaning the Feeder Sensor The feeder sensor detects paper in the feeder. Dust and small particles of paper may build up on the sensor, causing the feeder table not to drop after the last page is fed.

  • Page 75: Cleaning And Replacing The Lamps

    Copiscan 8000 Plus Series Operator Manual Figure 44. Feeder Sensor Location Cleaning and Replacing the Lamps NOTE: When the user access panel is opened, a safety interlock removes power from the transport motor. WARNING: The lamps may be very HOT. Use precaution when changing the bulb.
  • Page 76 Copiscan 8000 Plus Series Operator Manual Figure 45. Lamps in a Duplex Scanner The table below provides a legend for the above figure. Front Page Lamp Back Page Lamp To clean the lamps, follow the steps below: 1. Open the transport.

  • Page 77: Removing And Replacing The Skimmer Assembly

    Copiscan 8000 Plus Series Operator Manual NOTE: If after cleaning the lamps the scanner does not operate or the light source is still degraded, re-check the position of the lamps. Improperly installed lamps are a common source of these conditions. Replace lamps if necessary.

  • Page 78: Figure 46. Feeder Skimmerr

    Copiscan 8000 Plus Series Operator Manual Figure 46. Feeder Skimmer Removal The table below provides a legend for the above figure. Green lever Skimmer Flag Retention Lever Skimmer Flag 4. Lift the skimmer flag retention lever and lower the skimmer flag.

  • Page 79: Replacing The Separator Roller Sleeve

    Copiscan 8000 Plus Series Operator Manual To replace the skimmer assembly, take following steps: 1. Turn off the scanner. 2. Open the transport. 3. Raise the manual/autofeed lever on the feeder to the M position. 4. Using your left hand, pull the spring-loaded, green lever toward the left. Secure it behind the lock pin.

  • Page 80: Figure 49. Separator Rollera

    Copiscan 8000 Plus Series Operator Manual The table below provides a legend for the above figure. Separator Roller Assembly Separator Roller Access Door 4. Raise the manual/autofeed lever on the feeder the M position. 5. Open the separator access door. As the door is opened, the separator roller assembly will come loose from the separator roller cradle.

  • Page 81: Cleaning The Dropout Filters

    Copiscan 8000 Plus Series Operator Manual 15. Once the separator roller is placed back in the scanner, push down on it lightly to ensure it is located properly back into the cradle. 16. Replace the skimmer assembly as indicated in Section 6.9, Removing and Replacing the Skimmer Assembly.

  • Page 82: Removing The Print Cartridge

    Copiscan 8000 Plus Series Operator Manual 6.12.1 Removing the Print Cartridge Follow the directions below to remove the print cartridge: 1. Open the transport. 2. Slide the imprinter to the SERVICE position all the way to the left. 3. Flip the print cartridge securing lever upward and over the cartridge.

  • Page 83: Priming The Print Cartridge

    Copiscan 8000 Plus Series Operator Manual CAUTION: Do not touch the foil on the bottom of the new print cartridge with your fingers. 2. Remove the new print cartridge from the box and inner container. 3. Prime the new cartridge (refer to Section 6.11.4, Priming the Print Cartridge).

  • Page 84: Storing The Print Cartridge

    Copiscan 8000 Plus Series Operator Manual Figure 52. Wiping Away the Excess Ink 7. Close the transport. 8. Request a scan to check imprinter operation. Refer to Section 5.4.2.8, Initial Cleaning/Priming of the Imprinter Head. 6.12.5 Storing the Print Cartridge To get optimal use out of your imprinter, the print cartridge should be removed from the imprinter and stored if it has not been used for more than one hour.

  • Page 85: Troubleshooting

    Copiscan 8000 Plus Series Operator Manual 7. Troubleshooting This section contains troubleshooting information regarding scanner components. Refer to the following table for troubleshooting procedures. Symptom Cause Remedy Streaks in the image Glass flat needs to be Cleaning the glass flat, (Section cleaned 6.3)

  • Page 86: Error Messages

    Copiscan 8000 Plus Series Operator Manual Error Messages The scanner can display the following error messages during scanner initialization: Error Condition Message Displayed Remedy During Initialization Front GP Board Error “Bad/Missing Front GP Bd” Call your service representative at 1-800-SCAN495 .
  • Page 87 Copiscan 8000 Plus Series Operator Manual Error Condition Message Displayed Explanation/Remedy During Operation Multi-Feed Error “Multi-feed” Multiple documents fed at once. Refer to Section 5.5, Multifeed Detector. Door Open Error “Door Open” Side access panel is open. Open the transport, close side access panel firmly.

  • Page 88: Appendix - Ace Control

    Copiscan 8000 Plus Series Operator Manual Appendix - ACE Control The scanner has 45 different ACE settings. Each setting gives you a different image when scanning an identical document. MODE SENS NORMAL PHOTO SHIPPER RECOG DROP NO ACE Fixed Threshold...
  • Page 89 Copiscan 8000 Plus Series Operator Manual Getting the Best Image from ACE Control The scanner only views a document in grayscale, so all colors are viewed in a scale ranging from black to white, with 254 gray points in-between. The image that is sent to the host (displayed by the application), is only two shades (black or white), so the scanner has to decide at what point each pixel will be black or white.

  • Page 90: Figure 53. Halftone Image

    Copiscan 8000 Plus Series Operator Manual Figure 53. Halftone Image SHIPPER is used for documents that typically contain shaded areas and boxes. This mode tries to enhance the text areas, but ignore the shaded background. RECOG is similar to SHIPPER, but it uses more edge enhancement to improve the ability for image recognition.
  • Page 91 Copiscan 8000 Plus Series Operator Manual • Study the smallest text on the image closely, and try to gain a setting that keeps the characters intact (no gaps on the character strokes). At the same time, make sure the character has not become enlarged so that the strokes merge together, causing gaps to be filled in.

  • Page 92: Glossary

    Copiscan 8000 Operator Manual Glossary Adaptive Contrast Enhancement (ACE). An image enhancement board that provides high quality document capture by automatically discriminating between text and pictures, producing enhanced text and sharp, crisp photo images. Automatic Document Feed (ADF) mode. The scanner mode in which the documents are automatically fed, rather than manually, into the feeder.
  • Page 93 Copiscan 8000 Operator Manual Glass flat. The piece of glass through which the scanner camera “sees” the document. Light from the lamps passes through this glass to illuminate the document. Host. The computer to which the scanner is connected. The host issues the scan commands to the scanner.

  • Page 94: Scanner

    Copiscan 8000 Operator Manual SCSI (Small Computer System Interface) Connector. Serves as one of the two interfaces between the scanner and a host computer system. The other interface is video. Sensitivity. The setting of this control on the control panel determines the amount of information that is captured from a document.
