Bell and Howell Copiscan 8000 Spectrum Operator's Manual
  1. Manuals
  2. Brands
  3. Bell and Howell Manuals
  4. Scanner
  5. 8000
  6. Operator's manual
Bell and Howell Copiscan 8000 Spectrum Operator's Manual

Bell and Howell Copiscan 8000 Spectrum Operator's Manual

Hide thumbs Also See for Copiscan 8000 Spectrum:
Table of Contents

Advertisement

Quick Links

Download this manual

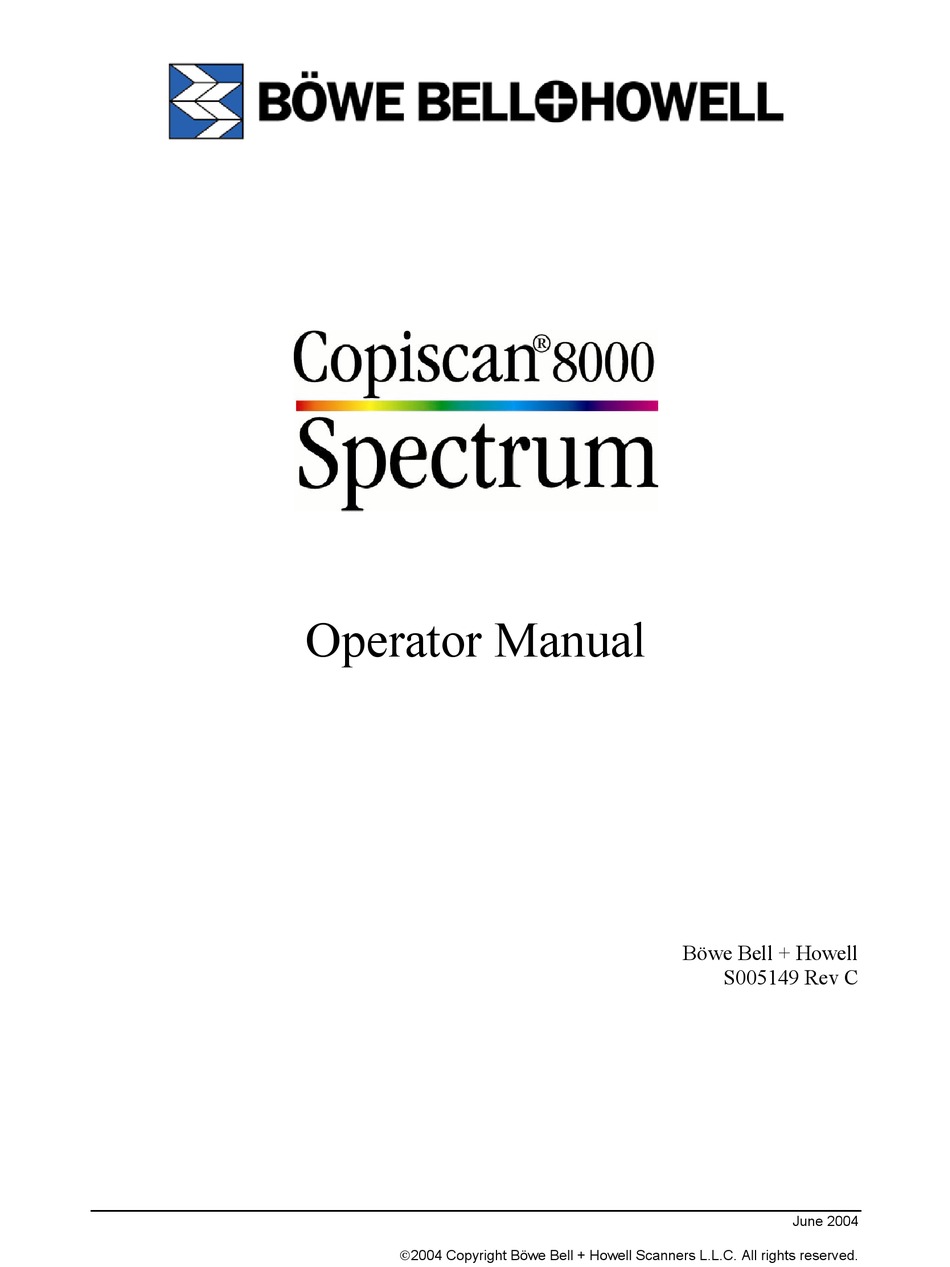

Operator Manual
Böwe Bell + Howell
S005149 Rev C
June 2004
2004 Copyright Böwe Bell + Howell Scanners L.L.C. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Copiscan 8000 Spectrum and is the answer not in the manual?

Questions and answers

Related Manuals for Bell and Howell Copiscan 8000 Spectrum

Summary of Contents for Bell and Howell Copiscan 8000 Spectrum

  • Page 1 Operator Manual Böwe Bell + Howell S005149 Rev C June 2004 2004 Copyright Böwe Bell + Howell Scanners L.L.C. All rights reserved.
  • Page 2 Copiscan 8000 Spectrum Operator Manual Böwe Bell + Howell Contact Information On the Web: www.bbhscanners.com In the US: In Europe: Böwe Bell + Howell Scanner Division Centurion House, London Road 772 S. Wolf Rd. Staines Wheeling, IL 60090 Middlesex TW18 4AX...
  • Page 3 Copiscan 8000 Spectrum Operator Manual Canadian Department of Communications Compliance Statement This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the radio interference regulations of the Canadian Department of Communications.

  • Page 4: Table Of Contents

    Copiscan 8000 Spectrum Operator Manual Table of Contents BÖWE BELL + HOWELL CONTACT INFORMATION ......... I INTRODUCTION....................1 ..............1 ANUAL IS RGANIZED ................3 YMBOLS HOULD ...................3 AFETY UIDELINES OPERATIONAL OVERVIEW ................5 ..................6 RONT OF THE CANNER ....................8 EAR OF CANNER SCANNER SPECIFICATIONS ................10 ........11...
  • Page 5 Copiscan 8000 Spectrum Operator Manual 6.12 ........68 EMOVING AND EPLACING THE KIMMER SSEMBLY 6.13 .........70 EPLACING THE EEDER KIMMER SSEMBLY OLLERS 6.14 ....72 EPLACING THE EEDER EPARATOR OLLER LEEVE SSEMBLY 6.15 ......74 LEANING OR EPLACING THE EEDER EPARATOR OLLER 6.16 ................75...
  • Page 6 Copiscan 8000 Spectrum Operator Manual List of Figures 1. C 8000 S .....................5 IGURE OPISCAN PECTRUM CANNER 2. F .......................6 IGURE RONT IEW OF CANNER 3. R .........................8 IGURE IEW OF CANNER 4. S ......................12 IGURE CANNER ACKAGE ON A 5.

  • Page 7: List Of Tables

    Copiscan 8000 Spectrum Operator Manual List of Tables 1. M ....................54 ABLE AINTENANCE CHEDULE ABLE www.bbhscanners.com 1-800-SCAN-494 Sales 1-800-SCAN-495 Technical Support...

  • Page 8: Introduction

    Copiscan 8000 Spectrum Operator Manual 1. Introduction The Copiscan 8000 Spectrum scanner is designed to handle heavy workloads and harsh production environments. The scanner requires minimal operator adjustments, and has a self-diagnostic exam at start up. Additionally, there are only a few consumables that will need replacement over time with this scanner—all of which can be purchased...
  • Page 9 Copiscan 8000 Spectrum Operator Manual • Section 2, Operational Overview The second section explains the purpose of the scanner and describes its major functions and components. • Section 3, Scanner Specifications The third section lists important scanner specifications and suggested environmental requirements for optimum scanner use.

  • Page 10: Symbols You Should Know

    Copiscan 8000 Spectrum Operator Manual Symbols You Should Know You will see three types of symbols in this manual: a warning symbol, a caution symbol, and a note symbol. Each time a symbol appears in the manual, it is followed by important information that you should read carefully.
  • Page 11 Copiscan 8000 Spectrum Operator Manual • Do not remove the feeder. Only qualified personnel should remove the feeder. NOTE: When the side panel of the scanner is opened, a safety interlock removes power from the transport circuitry before any hazardous parts are accessible. This interlock protects the user from the possibility of the transport running while the user panel is open.

  • Page 12: Operational Overview

    Copiscan 8000 Spectrum Operator Manual 2. Operational Overview Figure 1. Copiscan 8000 Spectrum Scanner NOTE: This manual assumes that you have a duplex scanner. Separate procedures will be indicated for simplex scanners where procedures are different. The scanner uses internal cameras to capture and digitize both sides of a document in a single pass through its paper path, whether the image is color, grayscale, or bitonal (black and white).

  • Page 13: Front Of The Scanner

    Copiscan 8000 Spectrum Operator Manual The operator controls let you capture information from a wide variety of foreground/background and color/intensity combinations. As documents travel through the transport, they are guided by seven sets of transport rollers. Documents are delivered to the stacking surface on the exit tray, while the scanner maintains the original document feed sequence.

  • Page 14: Operator Controls

    Copiscan 8000 Spectrum Operator Manual 2.1.1 Feeder When you wish to scan, place the stack of documents (or a single document) you want to scan on the scanner’s feeder. The feeder is made of stainless steel and plastic and protrudes at a slight angle from the front of the scanner. When the scanner receives a scan command from the application software running on your PC, the scanner takes one document at time from the stack into its transport system.

  • Page 15: Rear Of Scanner

    Copiscan 8000 Spectrum Operator Manual Rear of Scanner Components on the back of the scanner allow it to interface to a power source and to the host PC, enable power-up and power-down, and help cool the scanner during operation. The following figure illustrates the scanner’s rear panel and points out where its key components are located.
  • Page 16 Copiscan 8000 Spectrum Operator Manual 2.2.4 Power Receptacle A power cord connects to the receptacle and to an external AC power source. 2.2.5 Power Switch This is the main switch for applying power to and removing power from the scanner (0 is OFF, 1 is ON).

  • Page 17: Scanner Specifications

    Copiscan 8000 Spectrum Operator Manual 3. Scanner Specifications Copiscan 8000 Spectrum Specifications Model Type 8125D, 8100D, 8080D, 8080S Output Resolution 100, 150, 200, 240, 300, 400 dots per inch (dpi) true optical resolution Document Sizes ADF Mode: Manual Mode: Min. 2.6” (w) x 2.6” (l) Min.

  • Page 18: Recommended System Configuration Guidelines

    Copiscan 8000 Spectrum Operator Manual Recommended System Configuration Guidelines NOTE: Contact your scanning application software vendor for system requirements, since the application software drives the system requirement piece, not the scanner. The following lists PC requirements: Windows 98 SE/ME, 2000, or XP •...

  • Page 19: Installation

    Copiscan 8000 Spectrum Operator Manual 4. Installation This section covers the unpacking and installation of your scanner. No tools are required for the installation. Please follow the instructions carefully. It should take about 15 minutes to install the scanner. Unpacking the Scanner This section contains instructions for unpacking the scanner.

  • Page 20: Figure 6. Lifting The Box Off Of The Figure 7. Scanner Packaging

    Copiscan 8000 Spectrum Operator Manual CAUTION: Do not lift the scanner by its feeder (in front). Lift it from beneath its sides. Take the following steps to unpack the scanner: 1. Inspect the shipping cartons and their contents for any signs of damage. Undo the straps and lift the box off of the scanner.
  • Page 21 Copiscan 8000 Spectrum Operator Manual Figure 7. Scanner Packaging 2. Remove the plastic shipping bag and the packaging inserts from on top of the scanner. Remove the scanner accessories from the cutouts in the packaging inserts. Figure 8. Scanner After Removing Top Packaging Material 3.
  • Page 22 Copiscan 8000 Spectrum Operator Manual Figure 9. Two People Lifting the Scanner Off the Skid 4. Place the scanner on a sturdy, level surface. 5. Read Section 3.1, Recommended System Configuration Guidelines and Section 3.2, Scanner Environment in this manual before you go any further with the scanner setup.

  • Page 23: What You Should Have Received

    6. Strap the scanner box to the skid with strapping material. What You Should Have Received The following items are included in each shipment: • Copiscan 8000 Spectrum scanner with feeder and exit tray • Power cord • Copiscan 8000 Spectrum CD, which includes:...

  • Page 24: Ac Power And Host Computer Connection

    Copiscan 8000 Spectrum Operator Manual 4.2.1 How to Reorder Scanner All-In-One Consumable and Maintenance Kits All-In-One consumable and Universal Maintenance Kits are available through Böwe Bell + Howell Authorized Service Providers (ASPs), Consumable Parts Resellers (CPRs) and at www.bbhscanners.com. For a complete listing of ASPs and CPRs, please visit our website at www.bbhscanners.com.
  • Page 25 Copiscan 8000 Spectrum Operator Manual Figure 11. Connecting the Scanner to the Host 2. Next, you will need to install the Adrenaline 650i interface board into your PC and install VRS from the CD. To do this, please follow the instructions contained in the Production Scanners Installation Procedure section in the VRS Installation Guide that you received with your scanner.

  • Page 26: Operation

    Copiscan 8000 Spectrum Operator Manual 5. Operation Before you begin to scan documents, there are some functions of the scanner you should know. This section shows you how to turn the scanner on and off, how to read the control panel display, and how to use the function keys.

  • Page 27: Control Panel

    Copiscan 8000 Spectrum Operator Manual Control Panel The control panel is your interface to the scanner system. It contains 13 buttons that control basic operation and a two-line display. Figure 12. Control Panel COUNTER MENU CLEANING MENU MULTIFEED IGNORE Control panel display −...

  • Page 28: Figure 13. Multifeed Error

    Copiscan 8000 Spectrum Operator Manual 5.2.1.2 CLEANING MENU The CLEANING MENU button allows you to conveniently access the scanner cleaning menu. This menu gives the option to start the scanner transport so that cleaning sheets can be fed through the transport and skimmer assembly.
  • Page 29 Copiscan 8000 Spectrum Operator Manual 5.2.1.5 The function of this key depends on the current menu displayed. This button selects the function on the display panel corresponding directly above the F2 key. The key is inactive if nothing is displayed.

  • Page 30: Scanner Initializing

    Copiscan 8000 Spectrum Operator Manual There are three main types of operator interface menus on the scanner, including the home menu, user menus, and maintenance menus. • The home menu is normally displayed while scanning. It shows basic scanner configuration information and scanning status.
  • Page 31 Copiscan 8000 Spectrum Operator Manual The scanner then performs the remainder of its initialization and then waits for the EGSA board to complete its initialization. During this wait, the following message is displayed. The scanner waits at this display for up to 60 seconds for EGSA initialization to complete.
  • Page 32 Copiscan 8000 Spectrum Operator Manual display. As pages exit the scanner, the paper stack decreases, and as new requests are received from the scanning application, the paper stack increases. 5.2.2.4 STOPPED The scanner stops when it requires an error to be cleared. When you press the STOP button, all scanner activity halts.

  • Page 33: Normal Operating Routine

    Copiscan 8000 Spectrum Operator Manual 3. Close the transport. NOTE: Make sure the cover is properly latched closed or it may result in a paper jam. 4. Resume scanning. Normal Operating Routine Normal scanner operation includes the following: • Initializing the scanner •...
  • Page 34 Copiscan 8000 Spectrum Operator Manual NOTE: You can tape documents that are smaller than the minimum width and length requirements to a larger page side. The multifeed alarm will sound if set to notify or stop on multifeeds. 5.3.2.2 Preventing Document Jams and Multifeeds Documents that contain tape, staples, rubber bands, paper clips, and multi-page forms that are still attached will cause jams or multifeeds and can possibly damage the scanner.

  • Page 35: Figure 15. Menu Flow

    Copiscan 8000 Spectrum Operator Manual The following menu provides you with a guide for setting scanner parameters. Download new software? Updating software... Download new software? Press F1 to confirm CANCEL START Power cycle when done Ready Menu Enter new scanner Key?
  • Page 36 Copiscan 8000 Spectrum Operator Manual 8125 Only User Setup 0. 5" Multifeed Mode: Stop Multifeed if > Doc Prep: Good NEXT NEXT NEXT NEXT 0.25" Max Hole Size: NEXT Language: English 10000 English Cleaning Reminder Beep Volume: High System Setup...
  • Page 37 Copiscan 8000 Spectrum Operator Manual 5.3.3.1 Batch Size Selection Batch Size: Full The feeder can be set to use two different batch sizes, Full and Small. Use the Full size for feeding batch sizes of up to 500 documents, use the Small size for feeding batch sizes of 100 documents or less.
  • Page 38 Copiscan 8000 Spectrum Operator Manual To set the scanner in Manual Mode, follow the directions below: 1. Make sure that the scanner is in the proper mode before scanning. It should say MANUAL on the home menu. If it says AUTO FEED instead of MANUAL, press the RIGHT arrow key until you get to the SELECT FEEDER MODE menu.
  • Page 39 Copiscan 8000 Spectrum Operator Manual NOTE: Scanning in Manual and Manual Assisted Mode automatically turns off the multifeed detector. 5.3.3.3 ADF Test The ADF Test allows you to run the transport and feed pages without host-generated scan commands, so that you can test and verify page feeding. The transport will run at the speed set by the last host scan.
  • Page 40 Copiscan 8000 Spectrum Operator Manual turned off in Manual and Manual Assisted mode. However, the parameters remain in the same position as they were set when you return to ADF mode. The scanner can be programmed to elicit an audible alarm and stop the machine, elicit an audible alarm and continue scanning, or ignore when a multifeed is detected.

  • Page 41: System Setup

    Copiscan 8000 Spectrum Operator Manual To select doc prep, follow the directions below: 1. From the home menu, press the RIGHT arrow key until you reach the USER SETUP menu. Press F3 NEXT until you reach the doc prep menu.
  • Page 42 Copiscan 8000 Spectrum Operator Manual 2. Press the + key or the – key to increase or decrease the current beep volume setting. You can choose between OFF, LOW, and HIGH. 3. Press CLEAR to return to the home menu.
  • Page 43 Copiscan 8000 Spectrum Operator Manual 5.4.6 Changing the Menu Access Code This menu allows you to create and save a menu access code by pressing a four-digit sequence of F keys. This F key sequence can then be used to gain access to the full user menu tree (if menu access is set to LIMITED) and to the menu access code menus.

  • Page 44: Figure 16. Adjusting The Feeder

    Copiscan 8000 Spectrum Operator Manual 5.4.7 Adjusting the Feeder Guides The document guides on the feeder tray are self-centering. Moving either guide toward the center of the tray also moves the other one the same distance toward the center. NOTE: When the guides are not set to the width of the documents, you may notice a slight skewing of the documents.

  • Page 45: Figure 17. Removing The Feeder

    Copiscan 8000 Spectrum Operator Manual Figure 17. Removing the Feeder Extension Tray 2. Push up with your fingers while prying the tray away from its mounting brackets with your thumbs. 3. Pull the extension tray toward you so that it slides fully out of its mounting rails.

  • Page 46: Figure 19. Extension Traya

    Copiscan 8000 Spectrum Operator Manual Figure 19. Extension Tray Attached 5.4.9 Document Stacking in the Exit Tray As documents leave the scanner, they are returned face down in the exit tray in their original stacking order. Do not reposition documents in the exit tray. This might cause mishandling of the return order.

  • Page 47: Figure 21. Various Positions Of The Figure 22. Adjusting The Exitt

    Copiscan 8000 Spectrum Operator Manual Figure 21. Various Positions of the Exit Tray Like the automatic feeder, the exit tray has document guides, called side guides. The side guides should be adjusted for the width of the documents being scanned.

  • Page 48: Figure 23. Adjusting The Short

    Copiscan 8000 Spectrum Operator Manual 1. Grasp the top of the side guides and gently slide them in the grooves. 2. Set the guides slightly wider than the width of the documents to ensure that the documents do not bind on the guides. The document guides on the automatic feeder tray should roughly match the setting of the guides on the exit tray.

  • Page 49: Optional Imprinter

    Copiscan 8000 Spectrum Operator Manual Optional Imprinter NOTE: If your scanner does not have an imprinter, proceed to Section 5.6, Scanning Documents. 5.5.1 Imprinter Operation The factory-installed imprinter option includes a circuit board that controls an ink-jet print head. This allows for front-page pre-scan and back-page post-scan (special order) imprinting of a string of alphanumeric characters on documents that are fed into the scanner transport.
  • Page 50 Copiscan 8000 Spectrum Operator Manual 5.5.1.2 Print Characteristics 22 characters Maximum Number of Characters Paper Definition Low-grade (shipper) to regular bond documents can be used. NOTE: Glossy paper should NOT be used, as the ink drying time is too long for this type of paper and smearing will result.
  • Page 51 Copiscan 8000 Spectrum Operator Manual From the home menu, press the RIGHT arrow key until you get to the FRONT IMPRINTER menu: Front Printer:Off ON/OFF REFILL SETUP NOTE: If you do not see the above menu, you may not have the imprinter feature. If you are certain that you do, this may indicate a problem with the imprinter.
  • Page 52 Copiscan 8000 Spectrum Operator Manual When setting the start index or base string text, the LEFT and RIGHT arrow keys are used to position the cursor “_” and the - button and + button are used to select the desired alphanumeric character.
  • Page 53 Copiscan 8000 Spectrum Operator Manual Set text to be printed STRING FONT* DELAY To set the font size, select SIZE (F1) Font Size is Large SIZE* WIDTH ANGLE When setting the font size, use the +/- keys to toggle between Large and Normal.
  • Page 54 Copiscan 8000 Spectrum Operator Manual 3. Locate the green imprinter handle just to the left of the transport latch. Slide the handle all the way to the left. You should be able to see the imprinter protruding from the scanner’s metal frame on the left side of the scanner.
  • Page 55 Copiscan 8000 Spectrum Operator Manual Front Printer:On ON/OFF REFILL CLEAN 3. Select F3 CLEAN. Print on next page fed? CANCEL 4. If you are ready to test the imprinter, insert a document in the feeder and flip down the skimmer module nosepiece. Make sure the imprinter is located in the proper position and that the document is wide enough to be imprinted.
  • Page 56 Copiscan 8000 Spectrum Operator Manual 3. You are now ready to imprint batches of documents. 5.5.1.10 Enabling and Disabling the Imprinter The imprinter is always enabled when power is applied to the scanner. It becomes operational when an ink cartridge is installed into the imprinter.

  • Page 57: Scanning Documents

    Copiscan 8000 Spectrum Operator Manual CAUTION: Do not close the scanner with the imprinter in the SERVICE position. The imprinter may interfere with the side access door. CAUTION: Do not operate the scanner with the imprinter in the SERVICE position. Always remove the ink cartridge and slide the imprinter to one of the four endorsing locations when not in use.

  • Page 58: Multifeed Detector

    Copiscan 8000 Spectrum Operator Manual Multifeed Detector The multifeed detector picks up an ultrasonic signal that determines when there is more than one sheet of paper entering the scanner. NOTE: Some documents, such as folded card stock, laminated documents, or labels/sticky notes, may trigger the multifeed alarm.

  • Page 59: Figure 25. Opening The Transport

    Copiscan 8000 Spectrum Operator Manual Figure 25. Opening the Transport 3. Locate the paper jam and observe the location of the leading edge of the jammed sheet. Figure 26. Clearing a Jam 4. Remove the jammed sheet or sheets up and through the feeder and inspect the steel trays for debris that might have caused the jam.

  • Page 60: Operator Maintenance

    Copiscan 8000 Spectrum Operator Manual 6. Operator Maintenance To get the best operation from your scanner, regularly maintain the unit. This section lists the scanner maintenance tasks that must be performed on a daily, weekly, monthly, or yearly basis. Maintenance kits are available through Böwe Bell + Howell Authorized Service Providers (ASPs), Consumable Parts Resellers (CPRs) and at www.bbhscanners.com .

  • Page 61: Perpetual Counters

    Copiscan 8000 Spectrum Operator Manual Activity # Hours of Operation Symptoms Camera calibration Every 500 hours Scanner will indicate with a blinking camera icon ( Poor color image quality (e.g., white tinted to green, red, or blue) Table 1. Maintenance Schedule Table Perpetual Counters The scanner has perpetual page and hour counters.

  • Page 62: Cleaning The Glass Flat

    Copiscan 8000 Spectrum Operator Manual 1. From the home menu, press the RIGHT arrow key until you reach the CODE REVISION NUMBERS menu. 2. Press F3 NEXT to scroll through the list of devices that report a software revision number. The number and type of revision numbers displayed will depend on the particular set of options fitted to the scanner.

  • Page 63: Figure 28. Placing Yourf

    Copiscan 8000 Spectrum Operator Manual cleaned daily. Depending on use, it may be necessary to clean the glass flat more frequently. NOTE: When the scanner transport is opened, a safety interlock removes power from the transport motor before any hazardous parts are accessible.

  • Page 64: Figure 29. Removing The Glass

    Copiscan 8000 Spectrum Operator Manual Figure 29. Removing the Glass Flat 3. Push down on the right end of the glass and slide the glass to the right until you see the edge of the glass flat on the left side. The glass flat will slightly lift away from the metal tray for you to grasp it.

  • Page 65: Calibrating The Cameras

    Copiscan 8000 Spectrum Operator Manual Figure 30. Replacing the Glass Flat 7. Insert the glass flat into the left end first, gently pressing down against the spring and guiding the tip about 1/2” (12.7 mm) into the machine. This enables the other end of the glass to swing down and rest easily into the groove.
  • Page 66 Copiscan 8000 Spectrum Operator Manual CAUTION: For the best results, the scanner should be warmed up for at least 40 minutes before running camera calibration. Camera calibration requires that you feed two CLEAN calibration control sheets from the Camera Calibration Kit (Part #S005212) in landscape orientation.

  • Page 67: Software Download

    Copiscan 8000 Spectrum Operator Manual Calibration in progress Please wait... CANCEL Saving front cal data... DO NOT TURN OFF POWER! Saving back cal data... DO NOT TURN OFF POWER! After approximately two and a half minutes, the calibration process is complete, and the control sheets are ejected.

  • Page 68: Cleaning The Feeder Skimmer Rollers

    Copiscan 8000 Spectrum Operator Manual This menu is used to prepare the scanner to receive new control firmware, which is downloaded using special software for the PC and a standard serial cable. In the unlikely event that you must download new control firmware, Böwe Bell + Howell Technical Support will contact you with instructions.

  • Page 69: Cleaning The Transport Area

    Copiscan 8000 Spectrum Operator Manual 6. Place the skimmer cleaning sheet in the feeder, holding the back of the page with one hand. 7. Lower the skimmer. Figure 32. Letting the Skimmer Rollers Spin on the Cleaning Sheet 8. While holding the sheet, let the skimmer rollers spin on the area of the sheet that has been sprayed with rubber tire cleaner.

  • Page 70: Cleaning The Page Sensors

    Copiscan 8000 Spectrum Operator Manual 6. Place one of the transport path cleaning sheets in the feeder and lower the skimmer. The sheet will be pulled through the scanner. 7. Remove the sheet from the exit tray and run it through the scanner again.

  • Page 71: Cleaning The Feeder Sensor

    Copiscan 8000 Spectrum Operator Manual Figure 33. Entry Page Transmit Sensor Locations Figure 34. Exit Page Receiver Sensor Locations 5. Close the transport. 6.10 Cleaning the Feeder Sensor The feeder sensor detects paper in the feeder. Dust and small particles of paper may build up on the sensor, causing the feeder table not to drop after the last page is fed.

  • Page 72: Cleaning And Replacing The Lamps

    Copiscan 8000 Spectrum Operator Manual Figure 35. Feeder Sensor Location 6.11 Cleaning and Replacing the Lamps NOTE: When the user access panel is opened, a safety interlock removes power from the transport motor. WARNING: The lamps may be very HOT. Use precaution when changing the bulbs.
  • Page 73 Copiscan 8000 Spectrum Operator Manual Figure 36. Pulling the Lamp Housing Out To clean the lamps, follow the steps below: 1. Turn off the scanner. 2. Open the transport. 3. Open the side access panel of the scanner by folding it down to the left as you would open the cover of a book.
  • Page 74 Copiscan 8000 Spectrum Operator Manual Use the following procedure to replace the scanner lamps: 1. Open the transport. 2. Open the side access panel of the scanner by folding it down to the left, as you would open the cover of a book. The operator-accessible areas of the scanner are now exposed.

  • Page 75: Ssembly

    Copiscan 8000 Spectrum Operator Manual Front lamps reset CONTINUE 11. Press F1 CONTINUE. 12. If you replaced the back lamps, press F2 BACK. Back lamps replaced? CANCEL 13. Press F1 YES. A CALIBRATE BACK CAMERA message will appear for several seconds, followed by the BACK LAMPS RESET message.
  • Page 76 Copiscan 8000 Spectrum Operator Manual Figure 38. Feeder Skimmer Removal The table below provides a legend for the above figure. Green lever Skimmer Flag Retention Lever Skimmer Flag 4. Using your left hand, pull the spring-loaded, green lever toward the left. Secure it behind the lock pin.

  • Page 77: Rollers

    Copiscan 8000 Spectrum Operator Manual 7. To replace the skimmer flag, lift the flag retention lever. Figure 39. Positioning and Inserting the Skimmer Flag 8. Make sure the new flag is in the correct position, with the UP facing upward. Place the flag in the U-shaped sensor until the top of the flag is flush.
  • Page 78 Copiscan 8000 Spectrum Operator Manual Figure 40. Removing the Skimmer Assembly’s Top Cover 2. To remove the top cover of the skimmer assembly, squeeze the tabs located on top of the assembly together and pull the cover off the assembly.
  • Page 79 Copiscan 8000 Spectrum Operator Manual Figure 42. Inserting the New Roller on the Roller Shaft 5. Place the new roller on the roller shaft so that the larger opening faces the gear. 6. Place the roller assemblies back in to the lower housing.
  • Page 80 Copiscan 8000 Spectrum Operator Manual New separator roller sleeve assemblies, separator rollers, and All-In-One Kits are all available through Böwe Bell + Howell Authorized Service Providers (ASPs), Consumable Parts Resellers (CPRs) and at www.bbhscanners.com . For a complete listing of ASPs and CPRs, please visit our website at www.bbhscanners.com .
  • Page 81 Copiscan 8000 Spectrum Operator Manual Separator Roller Sleeve Retaining O-Ring Brake Assembly Spacer Figure 45. Separator Roller Assembly 7. Remove a spacer and retaining o-ring from one end of the separator roller assembly. 8. Slide the separator roller sleeve away from the brake assembly.

  • Page 82: Feeder Skimmer Assembly Feeder Separator Roller Eplacing The Feeder Saintenance

    Copiscan 8000 Spectrum Operator Manual NOTE: Different types of documents, and their condition of being scanned, may require more frequent cleanings to avoid intermittent multi-feeds. Take the following steps to clean the separator roller: 1. Remove the separator roller as indicated in section 6.14, Replacing the Feeder Separator Roller Sleeve Assembly , following steps 1 to 6.
  • Page 83 Copiscan 8000 Spectrum Operator Manual 6.16.2 Checking the Print Cartridge Ink Print cartridges are an easily replaceable item. Replace the cartridge if there is little or no ink in the cartridge. You can either purchase a new HP51604A print cartridge locally or obtain one from your dealer.
  • Page 84 Copiscan 8000 Spectrum Operator Manual New cartridge installed? CANCEL 8. Press F1 YES. 6.16.4 Priming the Print Cartridge Follow the steps below to prime the print cartridge: 1. Open the transport 2. Remove the print cartridge. Refer to Section 6.15.1, Removing the Print Cartridge .
  • Page 85 Copiscan 8000 Spectrum Operator Manual 9. Request a scan to check imprinter operation. Refer to Section 5.5.1.8 , Initial Cleaning/Priming of the Imprinter Head . 6.16.5 Storing the Print Cartridge To get optimal use out of your imprinter, the print cartridge should be removed from the imprinter and stored if it has not been used for more than one hour.

  • Page 86: Troubleshooting

    Copiscan 8000 Spectrum Operator Manual 7. Troubleshooting This section contains troubleshooting information regarding scanner components. Refer to the following table for troubleshooting procedures. Symptom Cause Remedy Streaks in the image Glass flat needs to be Clean the glass flat (Section 6.4)

  • Page 87: Errorm

    Copiscan 8000 Spectrum Operator Manual Error Messages Home Menu Status Messages Error Condition Message Displayed Explanation/Remedy Cover is open “Close cover” The transport clamshell or side cover is open. Scanner error “Waiting for host” The user has cleared a scanner...
  • Page 88 Copiscan 8000 Spectrum Operator Manual Scanner Configuration Errors Error Condition Message Displayed Explanation/Remedy Binary EGSA in Color “EGSA not color capable” The EGSA reports binary-only Scanner capability, but the scanner is color. Please call technical support at 1-800-SCAN-495 . Interface Slot Error “Bad/missing EGSA board”...
  • Page 89 Copiscan 8000 Spectrum Operator Manual Illumination Errors Error Condition Message Displayed Explanation/Remedy are old and need to be replaced, one lamp is out, or there is a sensor problem. Check back lamps and sensor and replace lamps if necessary (Section 6.11).
  • Page 90 Copiscan 8000 Spectrum Operator Manual Paper Handling and Transport Errors Error Condition Message Displayed Explanation/Remedy Feed Time Out Error “Feed Time Out” Too much time elapsed between scan command and document being fed. Press the CLEAR button and continue with scan process.
  • Page 91 Copiscan 8000 Spectrum Operator Manual Paper Handling and Transport Errors Error Condition Message Displayed Explanation/Remedy Cleaning the Page Sensors ). If the problem persists, please call technical support at 1-800-SCAN-495 . Page Exit Sensory Error “Bad page exit sensor” The exit sensor saw too...
  • Page 92 Copiscan 8000 Spectrum Operator Manual Imprinter Errors Error Condition Message Displayed Explanation/Remedy Front Printer’s Ink Low “Front Printer – ink low” The number of dots printed Error since front ink cartridge was installed has exceeded the manufacturer’s recommendations. Replace the print cartridge, (Section 6.15.3)
  • Page 93 Copiscan 8000 Spectrum Operator Manual Internal Errors Error Condition Message Displayed Explanation/Remedy EGSA Internal Error “EGSA error: xx” Please call technical support at 1-800-SCAN-495 . Unhandled Error Number “System Error” Reboot scanner and software. If this does not resolve the error, please call technical support at 1-800- SCAN-495 .

  • Page 94: Glossary

    Copiscan 8000 Operator Manual Glossary Automatic Document Feed (ADF) mode. The scanner mode in which the documents are automatically fed, rather than manually, into the feeder. Clamshell. The lid design of the scanner. When open, it allows access to the transport area for maintenance and clearing jams.

  • Page 95: Scanner

    Copiscan 8000 Operator Manual Glass flat. The piece of glass through which the scanner camera “sees” the document. Light from the lamps passes through this glass to illuminate the document. Host. The computer to which the scanner is connected. The host issues the scan commands to the scanner.
  • Page 96 Copiscan 8000 Operator Manual SCSI (Small Computer System Interface) Connector. Serves as one the interface between the scanner and a host computer system. Separation roller. The lower feeder roller. This roller holds back all but the top document in the stack of documents.
