Bell and Howell 8000 Parts Manual

Bell and Howell 8000 Parts Manual

Bell & howell scanners parts manual d8 level
Hide thumbs Also See for 8000:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operator's Manual

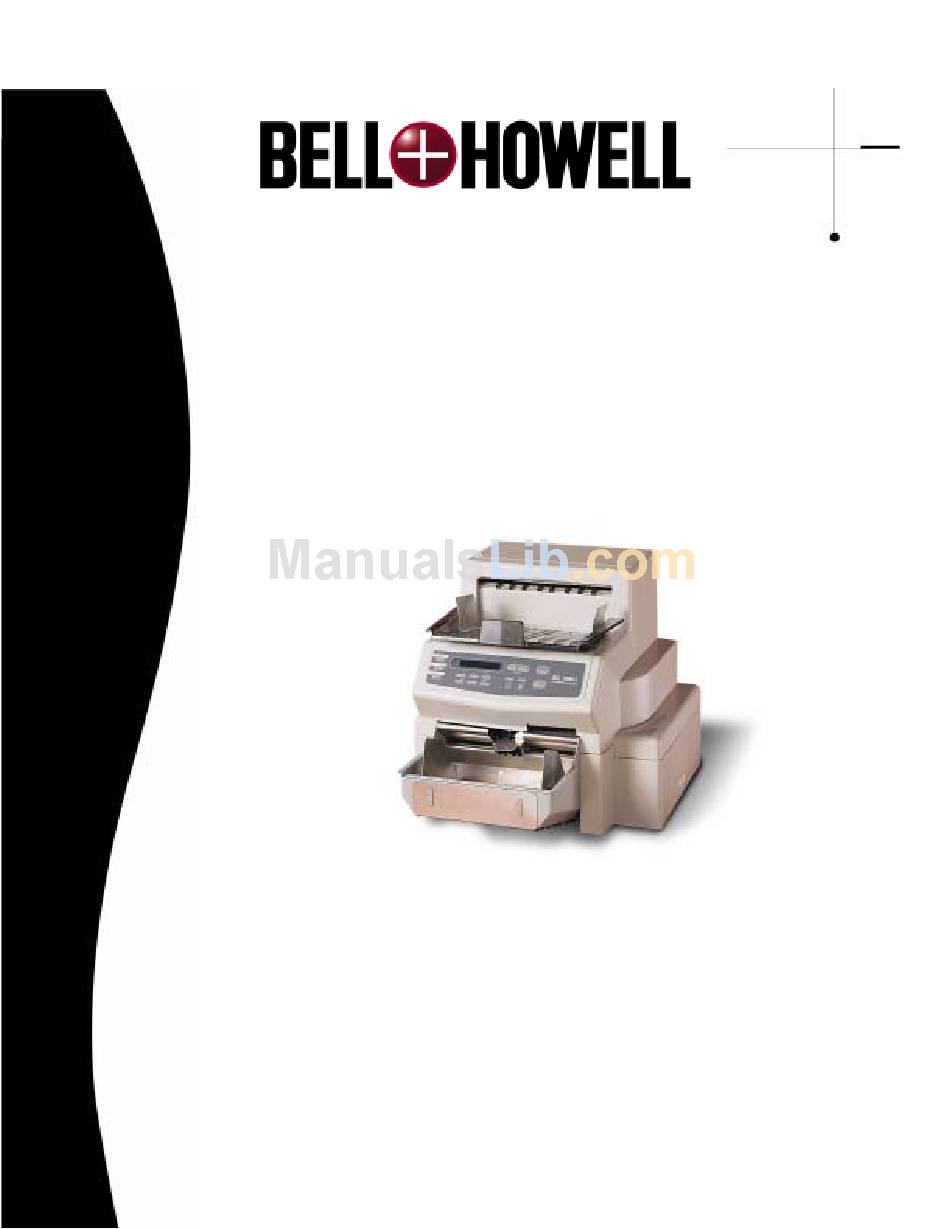

SCANNERS
Copiscan 8000 Series
D8 Level
Parts Manual
Bell & Howell
Scanners
Manual S004812
Rev A
The Bell & Howell logo and Copiscan 8000 Plus are registered trademarks
of Bell & Howell Company (U.S. and foreign)
© 2001 Bell & Howell Scanners

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bell and Howell 8000

Summary of Contents for Bell and Howell 8000

  • Page 1 Copiscan 8000 Series D8 Level Parts Manual Bell & Howell Scanners Manual S004812 Rev A The Bell & Howell logo and Copiscan 8000 Plus are registered trademarks of Bell & Howell Company (U.S. and foreign) © 2001 Bell & Howell Scanners...

  • Page 2: Contact Information

    For worldwide locations, visit our web site at www.bhscanners.com Please be aware that . . . This publication was produced by the Scanner Engineering Department of Bell & Howell Scanners Company. It is intended for use by professional service personnel with appropriate expertise and tools. The material is supplemental information to qualified training and is not to be used by untrained personnel.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Introduction ...1 Scanner covers ... 2 & 3 Power supply assembly ...4 Camera assembly ...5 Lower frame ...6 - 11 Upper frame ...12 & 13 Feeder ...14 - 17 Feeder (80 ppm w/o pre-feed)...18 Imprinter ...18 Cables ...19...
  • Page 4 This page intentionally left blank. 06/01...

  • Page 5: Introduction

    This manual contains a listing of the available parts for the Copiscan 8000 Series, firmware version D8, scanners. This listing includes individual parts, assemblies, kits, and service tools. The illustration figure and the parts list are on the same page.

  • Page 6: Scanner Covers

    Cover, Left Inspection Operator Interface 8080S Operator Interface 8080D Operator Interface 8100S Operator Interface 8100D Operator Interface 8125S Operator Interface 8125D Cover Assy-Frame Left Side 06/01 Scanner Covers Figure 1. Part No. Functional Description S01255A S01256A Upper Left Cover S01258A S01273A...
  • Page 7 Scanner Covers (continued) Callout Description Cover Side-right Cover, Back Lamp Cover, Front Lamp Cover, Card Cage Cover, Back Exit Tray Assy Base Feet 06/01 Figure 2. Part No. Functional Description S01257A Upper Right Cover S01266A S01264A S01259A Lower Right Cover...

  • Page 8: Power Supply Assembly

    Callout Description Power Supply - Simplex Power Supply - Duplex Ballast, Power Supply Note: Check Technical Bulletin 001680340101 before ordering a replacement power supply. 06/01 Power Supply Figure 3. Part No. Functional Description S004597 S004794 S01107A S01420A Ballast Comments See note below. See note below.

  • Page 9: Camera Assembly

    Camera Assembly Callout Description CS8000 Camera Assembly Camera Shoulder Screw Filter/Holder Assy Red Filter/Holder Assy Green Filter/Holder Assy Blue 06/01 Figure 4. Part No. Functional Description S003003 Camera S01124A S004076 S004077 S004078 Comments Not Shown Not Shown Not Shown Not Shown...

  • Page 10: Lower Frame

    Callout Description Drive Roller Assy, Exit Drive Roller Kit Assy Drive Roller Kit Assy 8080 #1/Transp Drive Roller Kit Assy 8125 #1 Pulley Assy - 32T Motor Replacement Kit Motor Pulley Pulley Assy - 32 T Background Bar - Static Gas Cylinder Kit Note 1: The motor kit contains the motor, washers, mounting screws, and mounting grommets.
  • Page 11 Lower Frame (continued) Callout Description Belt - .08-97T Timing Belt Timing Belt Timing Belt .126 Groove Lamp Assy 3 Degree Block Kit (Service) Glass - Transport 06/01 Figure 6. Part No. Functional Description S01149A S01175A S01175A 8050 & 8080 Timing Belt S001768 8100 &...
  • Page 12 Lower Frame (continued) Callout Description Tray - Front Extension Tray - Back, Simplex Back Tray & Holder Assy Latch Hook Assy 06/01 Figure 7. Part No. Functional Description S01211B Front Document Tray S001193 S002794 S01241A Comments Simplex Scanners Duplex Scanners...
  • Page 13 Lower Frame (continued) Callout Description Page Det Sensor Exit Assy Cooling Fan Assy Lamp Housing Assy, Back Page Entry Transmit PCB/Brkt Assy CCD Processor PCB Assy Video Interface BD Rev B Rel PCB, Mother Board SCSI Interface Memory Module GP - BD. Assy 06/01 Figure 8.
  • Page 14 Lower Frame (continued) Callout Description Multi-feed Detect Board Assy Cover, Card Cage Top Cover Assy., Card Cage Side 06/01 Figure 9. Part No. Functional Description S01356B MFD PCB Assembly S002578 Card Cage Top Cover S002596 Card Cage Side Cover Comments...
  • Page 15 Lower Frame (continued) Callout Description Viking Motor Control Assy Motor Control Shield 06/01 Figure 10. Part No. Functional Description S002683 S01606B PCB Housing Comments...

  • Page 16: Upper Frame

    Callout Description Interlock Switch Assembly Latch Assembly Spring, Transport Pinch Roller Assy Spring, 020, 170 OD, 53 Lamp Assy Slitted Flat - with White Paint BGB Assy BGB Trailing Mylar - Front BGB Leading Mylar - Front Torsion Spring, Left BGB Torsion Spring, Right BGB Pinch Roller Assy.
  • Page 17 Upper Frame (continued) Callout Description Page Detect Sensor Entry Assy Lamp Housing Assy - Front Page Timing Belt - DBB Tray - Front Simplex Tray - Front Duplex Exit Trans PCB Brkt Assy Tray Front Extension Assy Pinch Roller Assy, Exit 06/01 Figure 12.

  • Page 18: Feeder

    Callout Description Coupling, Elevator Extension Tray Feeder Control Board Feeder Bezel - Left Feeder Bezel - Right 06/01 Feeder Figure 13. Part No. Functional Description S01327A S01559B S004045 S01198A Left Feeder Cover S01199A Right Feeder Cover Comments Not Shown Not Shown...
  • Page 19 Callout Description Elevator Table Assy Feeder Drive Pulley Kit PCB Assy, Skimmer Sensor S01384A CS8000 Skimmer Assy 06/01 Feeder (continued) Figure 14. Part No. Functional Description S01618A S004124 Belt, Pulleys, Idlers, Adjuster S01520F Comments Service Kit...
  • Page 20 Callout Description Reverse Roller Assy Manual Feed Elevator Motor Assy Feeder Motor Assy 06/01 Feeder (continued) Figure 15. Part No. Functional Description S01535F Reverse Roller & Bracket Assembly S003450 Manual Feed Knob S01480C S01445C Comments Knob & Hardware...

  • Page 21: Feeder

    Callout Description Roller, Feed Press-Fit Assy Roller, Feed Press-Fit Assy Skimmer Module 06/01 Feeder (continued) Figure 16. Part No. Functional Description S00902D Right Drive Roller S00904A Left Drive Roller S002423 Skimmer & Drive Roller Assembly Comments Roller, Bearing & Clutch Roller, Bearing &...

  • Page 22: Feeder (80 Ppm W/O Pre-Feed)

    Feeder (80 ppm w/o pre-feed) Callout Description Indicator Knob Pellet - Nylon Timing Belt 134 Groove Adjust Knob Belt Idler Elevator Trolley CS8000 Skimmer Assy Feeder Control Bd Harness Feeder Control Bd Flex Shaft, Reverse Roller Magnet .250 Dia x .125 Lg Clip Callout Description...

  • Page 23: Cables

    Target, A3, Page Frame Target, A4 Page Frame Target, A4 Lamp Regulation A-4 Viking Test Target Target, Document Skew Callout Description Interlock Tool Hardware Kit 8000 Duplex Maintenance Kit Air Duct Kit 06/01 Cables Part No. Functional Description 120237F S01435A S01434C...
  • Page 24 Notes 06/01...
