FunctOn DSplay - Icom IC-M411 Instruction Manual

2
PANEL DESCRIPTION

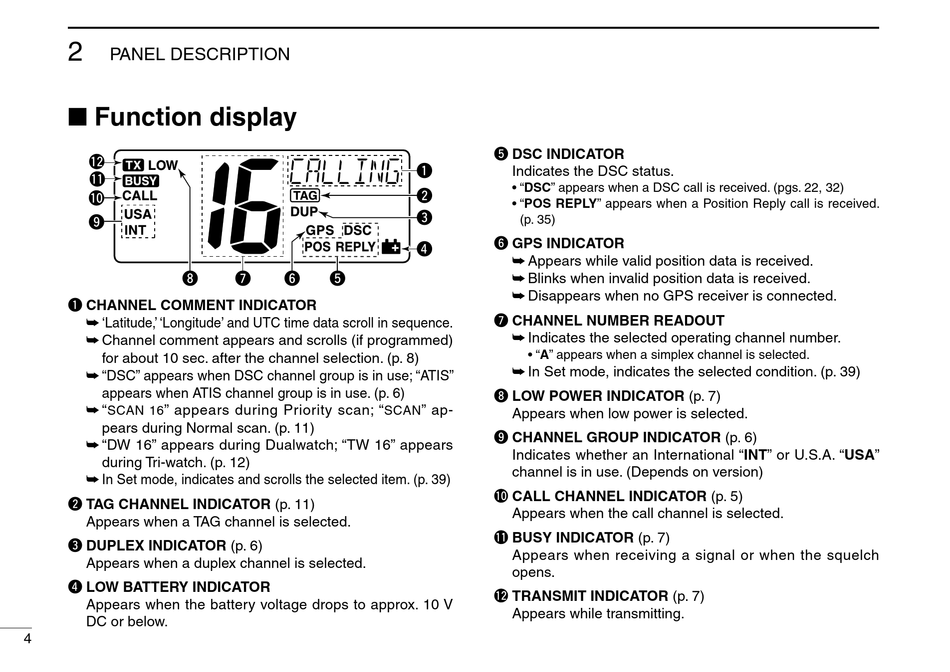

n Function display
!2
!1
!0
o
i
q CHANNEL COMMENT INDICATOR
➥ 'Lattude,' 'Longtude' and UTC tme data scroll n sequence.
➥ Channel comment appears and scrolls (f programmed)
for about 10 sec. after the channel selecton. (p. 8)
➥ "DSC" appears when DSC channel group s n use; "ATIS"
appears when ATIS channel group s n use. (p. 6)
➥ " " appears durng Prorty scan; "
SCAN 16
pears durng Normal scan. (p. 11)
➥ "DW 16" appears durng Dualwatch; "TW 16" appears
durng Tr-watch. (p. 12)
➥ In Set mode, ndcates and scrolls the selected tem. (p. 39)
w TAG CHANNEL INDICATOR (p. 11)
Appears when a TAG channel s selected.
e DUPLEX INDICATOR (p. 6)
Appears when a duplex channel s selected.
r LOW BATTERY INDICATOR
Appears when the battery voltage drops to approx. 10 V
DC or below.
4
u y t
SCAN
t DSC INDICATOR
q Indcates the DSC status.
• "DSC" appears when a DSC call s receved. (pgs. 22, 32)
w
• "POS REPLY" appears when a Poston Reply call s receved.
e
(p. 35)
y GPS INDICATOR
r
➥ Appears whle vald poston data s receved.
➥ Blnks when nvald poston data s receved.
➥ Dsappears when no GPS recever s connected.
u CHANNEL NUMBER READOUT
➥ Indcates the selected operatng channel number.
• "A" appears when a smplex channel s selected.
➥ In Set mode, ndcates the selected condton. (p. 39)
i LOW POWER INDICATOR (p. 7)
" ap-
Appears when low power s selected.
o CHANNEL GROUP INDICATOR (p. 6)
Indcates whether an Internatonal "INT" or U.S.A. "USA"
channel s n use. (Depends on verson)
!0 CALL CHANNEL INDICATOR (p. 5)
Appears when the call channel s selected.
!1 BUSY INDICATOR (p. 7)
Appears when recevng a sgnal or when the squelch
opens.
!2 TRANSMIT INDICATOR (p. 7)
Appears whle transmttng.
