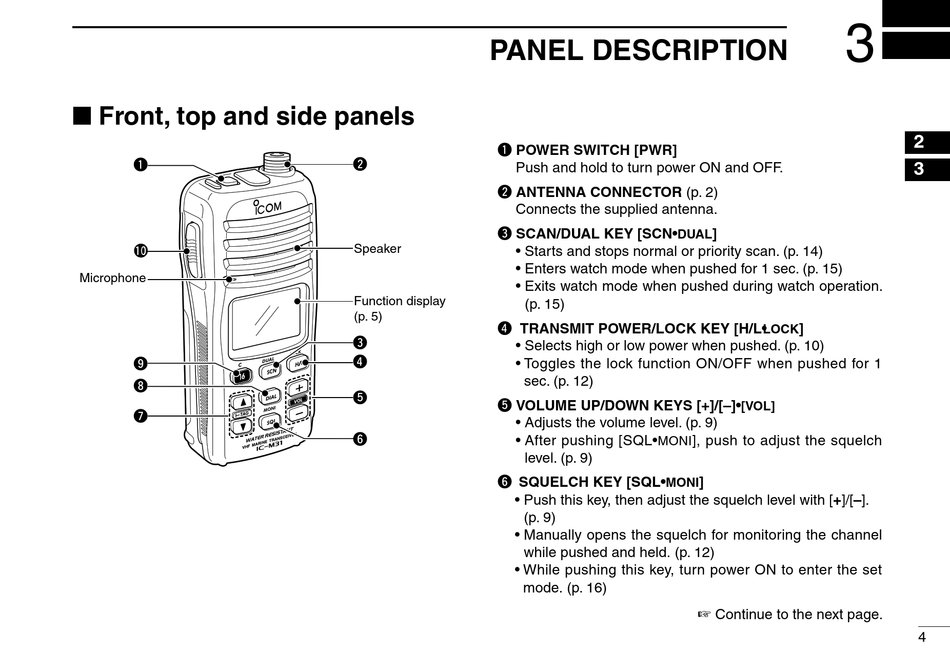

■ Front, top and side panels
q
!0
Mcrophone
o
i
u

PANEL DESCRIPTION

q POWER SWITCH [PWR]
w
Push and hold to turn power ON and OFF.
w ANTENNA CONNECTOR (p. 2)
Connects the suppled antenna.
e SCAN/DUAL KEY [SCN•
Speaker
• Starts and stops normal or prorty scan. (p. 14)
• Enters watch mode when pushed for 1 sec. (p. 15)
• Exts watch mode when pushed durng watch operaton.

Functon dsplay

(p. 15)
(p. 5)
r TRANSMIT POWER/LOCK KEY [H/L•
e
• Selects hgh or low power when pushed. (p. 10)
r • Toggles the lock functon ON/OFF when pushed for 1
sec. (p. 12)
t
t VOLUME UP/DOWN KEYS [+]/[–]•
• Adjusts the volume level. (p. 9)
• After pushng [SQL•
y
level. (p. 9)
y SQUELCH KEY [SQL•
• Push ths key, then adjust the squelch level wth [+]/[–].
(p. 9)
• Manually opens the squelch for montorng the channel
whle pushed and held. (p. 12)
• Whle pushng ths key, turn power ON to enter the set
mode. (p. 16)
]
DUAL
]
L OCK
[VOL]
], push to adjust the squelch
MONI
]
MONI
☞ Contnue to the next page.
