FunctOn DSplay - Icom IC-F5061/D Instruction Manual

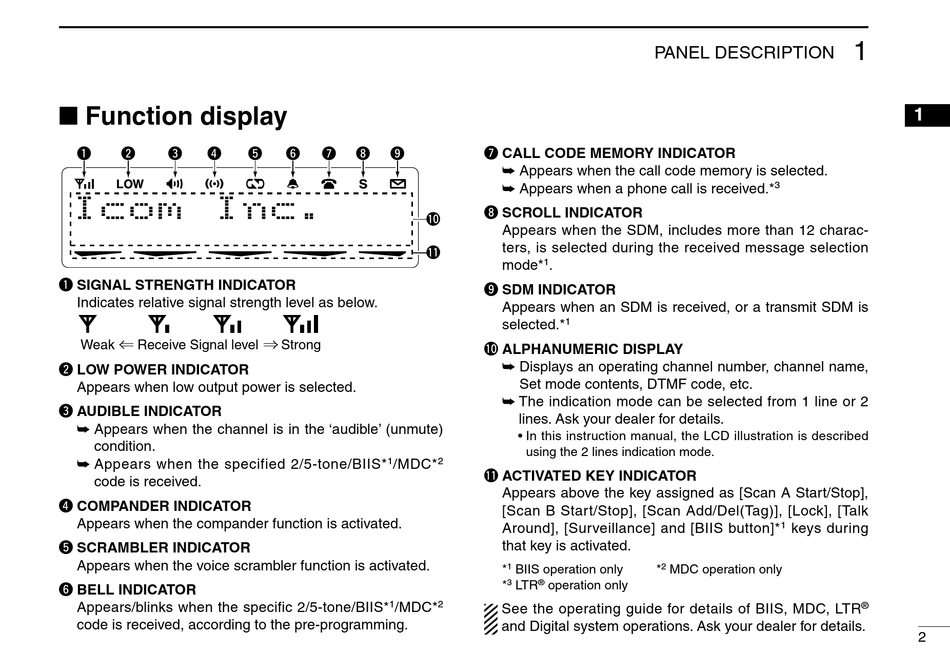

■ Function display
q w e r
I c o m I n c .
q SIGNAL STRENGTH INDICATOR
Indcates relatve sgnal strength level as below.
Weak Receive Signal level
w LOW POWER INDICATOR
Appears when low output power s selected.
e AUDIBLE INDICATOR
➥ Appears when the channel s n the 'audble' (unmute)
condton.
➥ Appears when the specfed 2/5-tone/BIIS*
code s receved.
r COMPANDER INDICATOR
Appears when the compander functon s actvated.
t SCRAMBLER INDICATOR
Appears when the voce scrambler functon s actvated.
y BELL INDICATOR
Appears/blnks when the specfc 2/5-tone/BIIS*
code s receved, accordng to the pre-programmng.
t y u i o
!0
!1
Strong
1 /MDC*
1 /MDC*
u CALL CODE MEMORY INDICATOR
➥ Appears when the call code memory s selected.
➥ Appears when a phone call s receved.*
i SCROLL INDICATOR
Appears when the SDM, ncludes more than 12 charac-
ters, s selected durng the receved message selecton
mode* 1 .
o SDM INDICATOR
Appears when an SDM s receved, or a transmt SDM s
1
selected.*
!0 ALPHANUMERIC DISPLAY
➥ Dsplays an operatng channel number, channel name,
Set mode contents, DTMF code, etc.
➥ The ndcaton mode can be selected from 1 lne or 2
lnes. Ask your dealer for detals.
• In ths nstructon manual, the LCD llustraton s descrbed
usng the 2 lnes ndcaton mode.
2
!1 ACTIVATED KEY INDICATOR
Appears above the key assgned as [Scan A Start/Stop],
[Scan B Start/Stop], [Scan Add/Del(Tag)], [Lock], [Talk
Around], [Survellance] and [BIIS button]*
that key s actvated.
* 1 BIIS operaton only
* 3 LTR ® operaton only
2
See the operatng gude for detals of BIIS, MDC, LTR
and Dgtal system operatons. Ask your dealer for detals.
