FunctOn DSplay; Panel Description - Icom IC-M90E Instruction Manual

3

PANEL DESCRIPTION

u TRANSMIT POWER/LOCK KEY [Hi/Lo•
• Selects hgh, mddle or low power when pushed. (p. 9)
• Toggles the lock functon ON/OFF when pushed for
1 sec. (p. 10)
i CHANNEL 16 KEY [16•
• Selects Channel 16 when pushed. (p. 7)
• Selects call channel when pushed for 1 sec. (p. 7)
• Enters call channel wrte mode when the call channel s
selected and ths key s pushed for 3 sec. (p. 10)
o CHANNEL UP/DOWN SWITCHES [Y]/[Z]
• Selects an operatng channel. (pgs. 7–9)
• Selects the SET mode condton of the tem. (p. 16)
• S e l e c t s t h e S E T m o d e  t e m w h e n p u s h e d w  t h
[SQL ]. (p. 16)
•MONI
• Checks tag channels or changes scannng drecton dur-
ng scan. (p. 13)
!0 SQUELCH SWITCH [SQL•
• Push ths swtch, then adjust the squelch level wth
[Y]/[Z]. (p. 11)
• Manually opens the squelch for montorng the channel
whle pushed and held. (p. 10)
• Whle pushng ths swtch, turn power ON to enter the
SET mode. (p. 16)
• Selects the SET mode tem. (p. 16)
!1 PTT SWITCH [PTT]
Push and hold to transmt; release to receve.
5
]
]
C
]
MONI

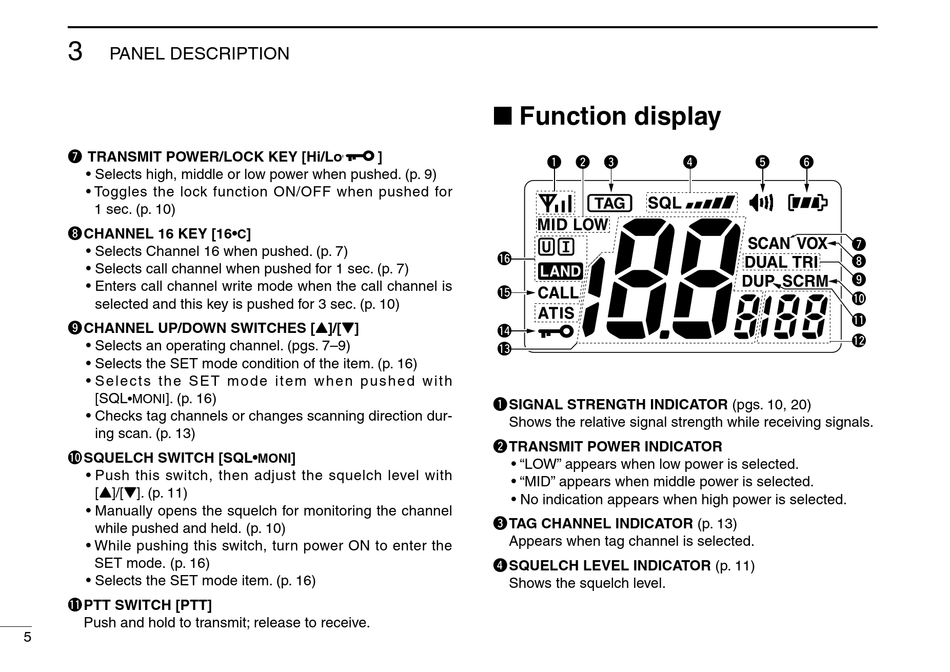

■ Function display
q w e
!6
!5
!4
!3
q SIGNAL STRENGTH INDICATOR (pgs. 10, 20)
Shows the relatve sgnal strength whle recevng sgnals.
w TRANSMIT POWER INDICATOR
• "LOW" appears when low power s selected.
• "MID" appears when mddle power s selected.
• No ndcaton appears when hgh power s selected.
e TAG CHANNEL INDICATOR (p. 13)
Appears when tag channel s selected.
r SQUELCH LEVEL INDICATOR (p. 11)
Shows the squelch level.
r t y
u
i
o
!0
!1
!2
