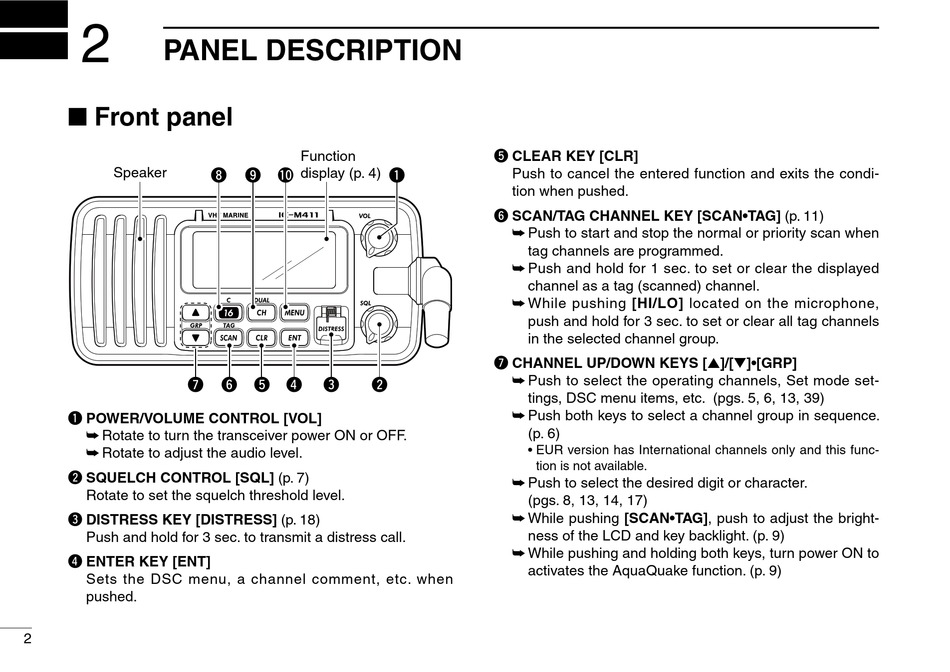

PANEL DESCRIPTION

n Front panel
Speaker
u
q POWER/VOLUME CONTROL [VOL]
➥ Rotate to turn the transcever power ON or OFF.
➥ Rotate to adjust the audo level.
w SQUELCH CONTROL [SQL] (p. 7)
Rotate to set the squelch threshold level.
e DISTRESS KEY [DISTRESS] (p. 18)
Push and hold for 3 sec. to transmt a dstress call.
r ENTER KEY [ENT]
Sets the DSC menu, a channel comment, etc. when
pushed.
2
Function
display (p. 4)
i o !0 q
y t r e w
t CLEAR KEY [CLR]
Push to cancel the entered functon and exts the cond-
ton when pushed.
y SCAN/TAG CHANNEL KEY [SCAN•TAG] (p. 11)
➥ Push to start and stop the normal or prorty scan when
tag channels are programmed.
➥ Push and hold for 1 sec. to set or clear the dsplayed
channel as a tag (scanned) channel.
➥ Whle pushng [HI/LO] located on the mcrophone,
push and hold for 3 sec. to set or clear all tag channels
n the selected channel group.
u CHANNEL UP/DOWN KEYS [s]/[t]•[GRP]
➥ Push to select the operatng channels, Set mode set-
tngs, DSC menu tems, etc. (pgs. 5, 6, 13, 39)
➥ Push both keys to select a channel group n sequence.
(p. 6)
• EUR verson has Internatonal channels only and ths func-
ton s not avalable.
➥ Push to select the desred dgt or character.
(pgs. 8, 13, 14, 17)
➥ Whle pushng [SCAN•TAG], push to adjust the brght-
ness of the LCD and key backlght. (p. 9)
➥ Whle pushng and holdng both keys, turn power ON to
actvates the AquaQuake functon. (p. 9)
