i CHANNEL 16/CALL CHANNEL KEY [16•C]
➥ Push to select Channel 16. (p. 5)
➥ Push and hold for 1 sec. to select call channel. (p. 5)
• "CALL" appears when call channel s selected.
➥ Push and hold for 3 sec. to enter the call channel pro-
grammng condton when the call channel s selected.
(p. 8)
➥ Whle pushng [CH•DUAL], push to enter the channel
comment programmng condton. (p. 8)
➥ Whle turnng power ON, push to enter set mode. (p. 39)
o CHANNEL/DUALWATCH/TRI-WATCH KEY [CH•DUAL]
➥ Push to select the regular channel. (pgs. 5, 6)
➥ Push and hold for 1 sec. to start dualwatch or tr-watch.
(p. 12)
➥ Push to stop dualwatch or tr-watch when ether s act-
vated. (p. 12)
!0 DSC MENU KEY [MENU] (p. 13)
Push to toggle the DSC menu ON or OFF.
PANEL DESCRIPTION

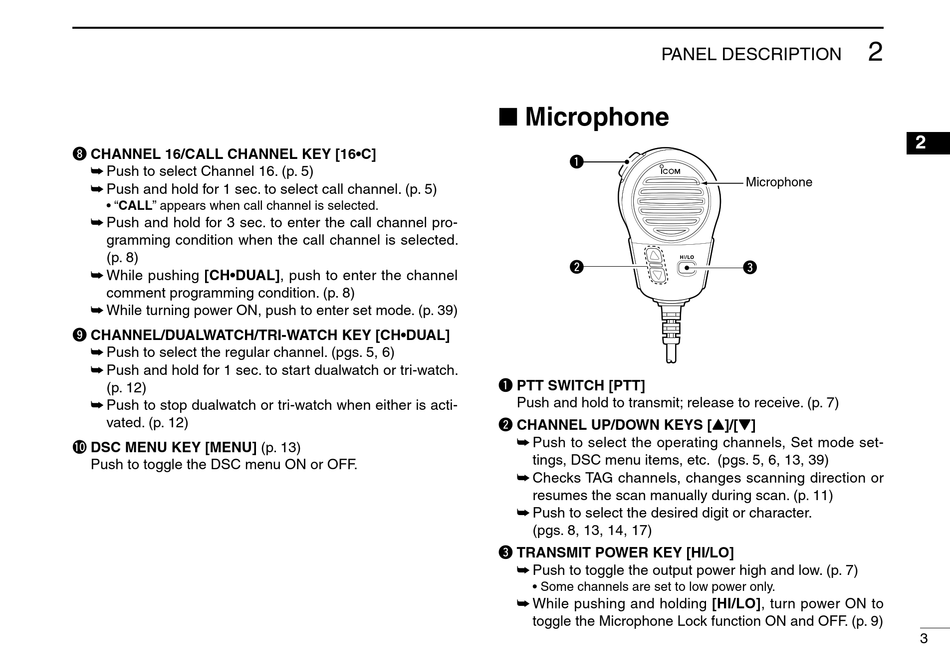

n Microphone
q
w
q PTT SWITCH [PTT]
Push and hold to transmt; release to receve. (p. 7)
w CHANNEL UP/DOWN KEYS [Y]/[Z]
➥ Push to select the operatng channels, Set mode set-
tngs, DSC menu tems, etc. (pgs. 5, 6, 13, 39)
➥ Checks TAG channels, changes scannng drecton or
resumes the scan manually durng scan. (p. 11)
➥ Push to select the desred dgt or character.
(pgs. 8, 13, 14, 17)
e TRANSMIT POWER KEY [HI/LO]
➥ Push to toggle the output power hgh and low. (p. 7)
• Some channels are set to low power only.
➥ Whle pushng and holdng [HI/LO], turn power ON to
toggle the Mcrophone Lock functon ON and OFF. (p. 9)
