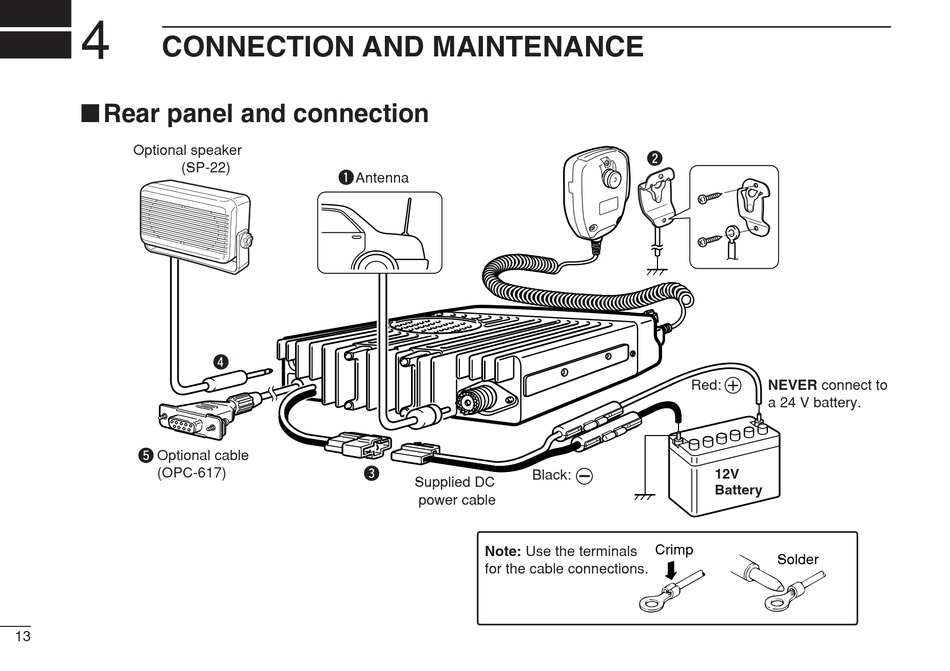

CONNECTION AND MAINTENANCE

I Rear panel and connection

Optional speaker
(SP-22)
t
Optional cable
(OPC-617)
13
q
Antenna
r
e
Black:
Supplied DC
power cable
Note: Use the terminals
for the cable connections.
w
+
Red:
NEVER connect to
a 24 V battery.
12V
Battery
Crimp
Solder
