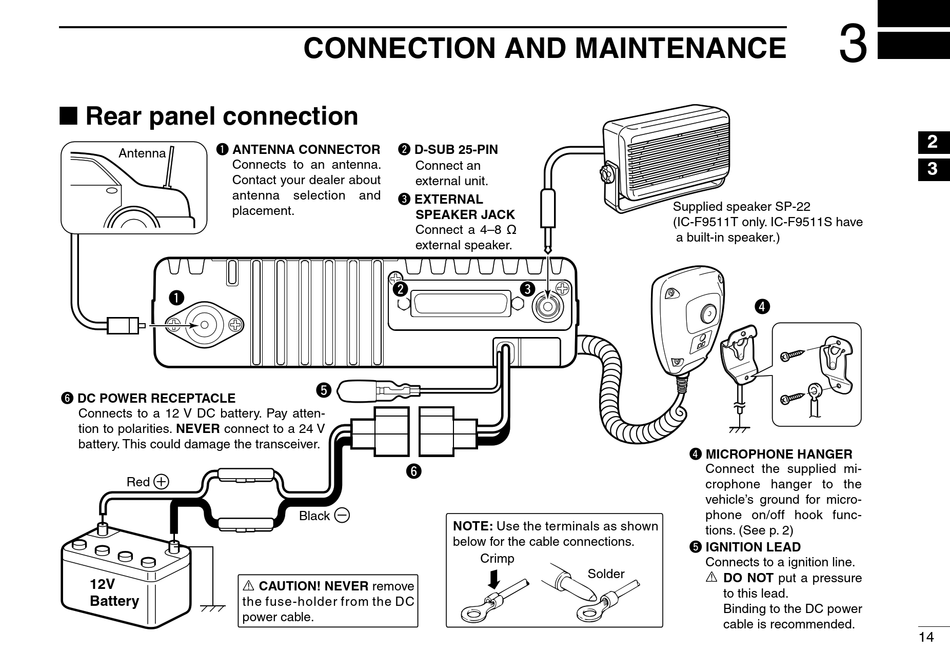

n Rear panel connection
q ANTENNA CONNECTOR
Antenna
Connects to an antenna.
Contact your dealer about
antenna
placement.
q
y DC POWER RECEPTACLE
Connects to a 12 V DC battery. Pay atten-
tion to polarities. NEVER connect to a 24 V
battery. This could damage the transceiver.
Red
12V
Battery

CONNECTION AND MAINTENANCE

w D-SUB 25-PIN
Connect an
external unit.
selection and
e EXTERNAL
SPEAKER JACK
Connect a 4–8 ø
external speaker.
w
t
y
Black
R CAUTION! NEVER remove
the fuse-holder from the DC
power cable.
e
NOTE: Use the terminals as shown
below for the cable connections.
Crimp
Solder
3
Supplied speaker SP-22
(IC-F9511T only. IC-F9511S have
a built-in speaker.)
r
r MICROPHONE HANGER
Connect the supplied mi-
crophone hanger to the
vehicle's ground for micro-
phone on/off hook func-
tions. (See p. 2)
t IGNITION LEAD
Connects to a ignition line.
R DO NOT put a pressure
to this lead.
Binding to the DC power
cable is recommended.
