IPC912 Series User's Manual
Step 4

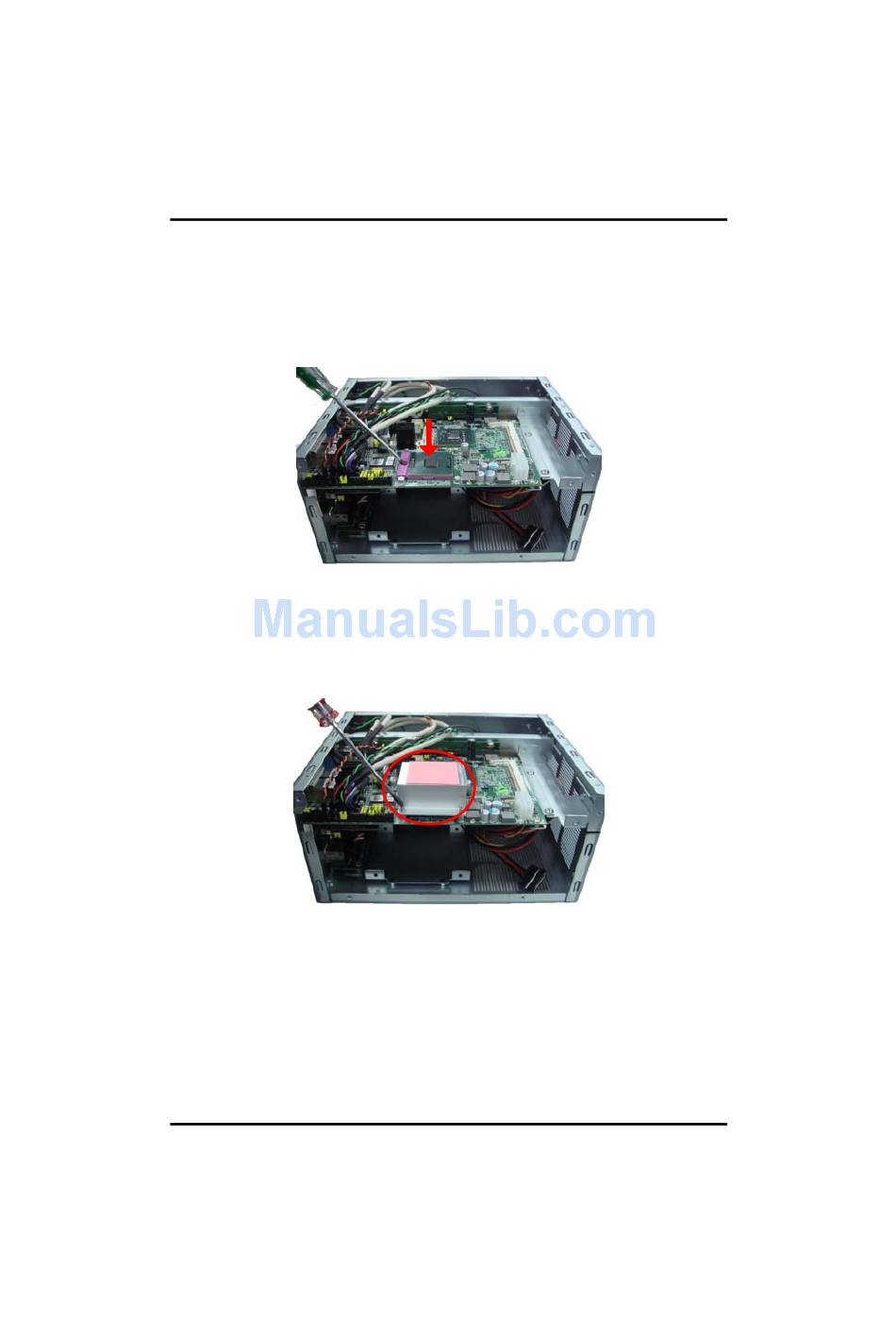

After opening the top and side covers, you can locate the
CPU socket and heatsink as marked. Align pins of the CPU
with pin holes of the socket. Be careful of the CPU's
orientation that you need to align the arrow mark on the CPU
with the arrow key on the socket. Place the CPU into the
socket, and use a screwdriver to lock it onto the socket.
Step 5
Place the CPU Heatsink on the CPU, and lock it by
screwdriver.
Hardware Installation
15
