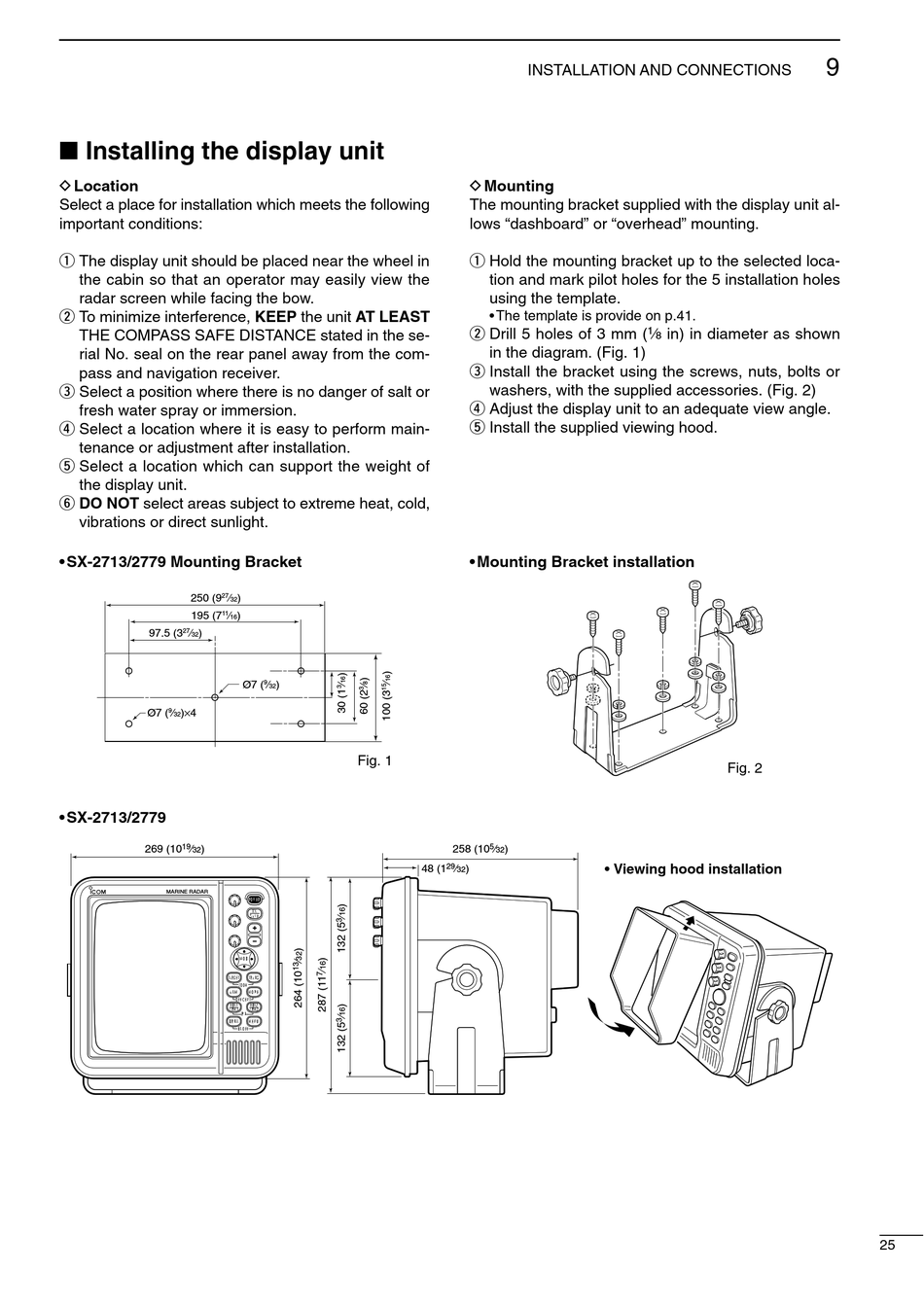

I Installing the display unit
D Location
Select a place for installation which meets the following
important conditions:
q The display unit should be placed near the wheel in
the cabin so that an operator may easily view the
radar screen while facing the bow.
w To minimize interference, KEEP the unit AT LEAST
THE COMPASS SAFE DISTANCE stated in the se-
rial No. seal on the rear panel away from the com-
pass and navigation receiver.
e Select a position where there is no danger of salt or
fresh water spray or immersion.
r Select a location where it is easy to perform main-
tenance or adjustment after installation.
t Select a location which can support the weight of
the display unit.
y DO NOT select areas subject to extreme heat, cold,
vibrations or direct sunlight.
• SX-2713/2779 Mounting Bracket
250 (9
27
⁄
32
195 (7
11
⁄
16
97.5 (3
27
⁄
)
32
Ø7 (
9
⁄
)×4
32
• SX-2713/2779
19
269 (10
⁄
)
32
MARINE RADAR
)
)
9
Ø7 (
⁄
)
32
Fig. 1
INSTALLATION AND CONNECTIONS
D Mounting
The mounting bracket supplied with the display unit al-
lows "dashboard" or "overhead" mounting.
q Hold the mounting bracket up to the selected loca-
tion and mark pilot holes for the 5 installation holes
using the template.
• The template is provide on p.41.
w Drill 5 holes of 3 mm (
in the diagram. (Fig. 1)
e Install the bracket using the screws, nuts, bolts or
washers, with the supplied accessories. (Fig. 2)
r Adjust the display unit to an adequate view angle.
t Install the supplied viewing hood.
• Mounting Bracket installation
5
258 (10
⁄
)
32
29
48 (1
⁄
)
32
1
⁄
in) in diameter as shown
8
Fig. 2
• Viewing hood installation
9
25
