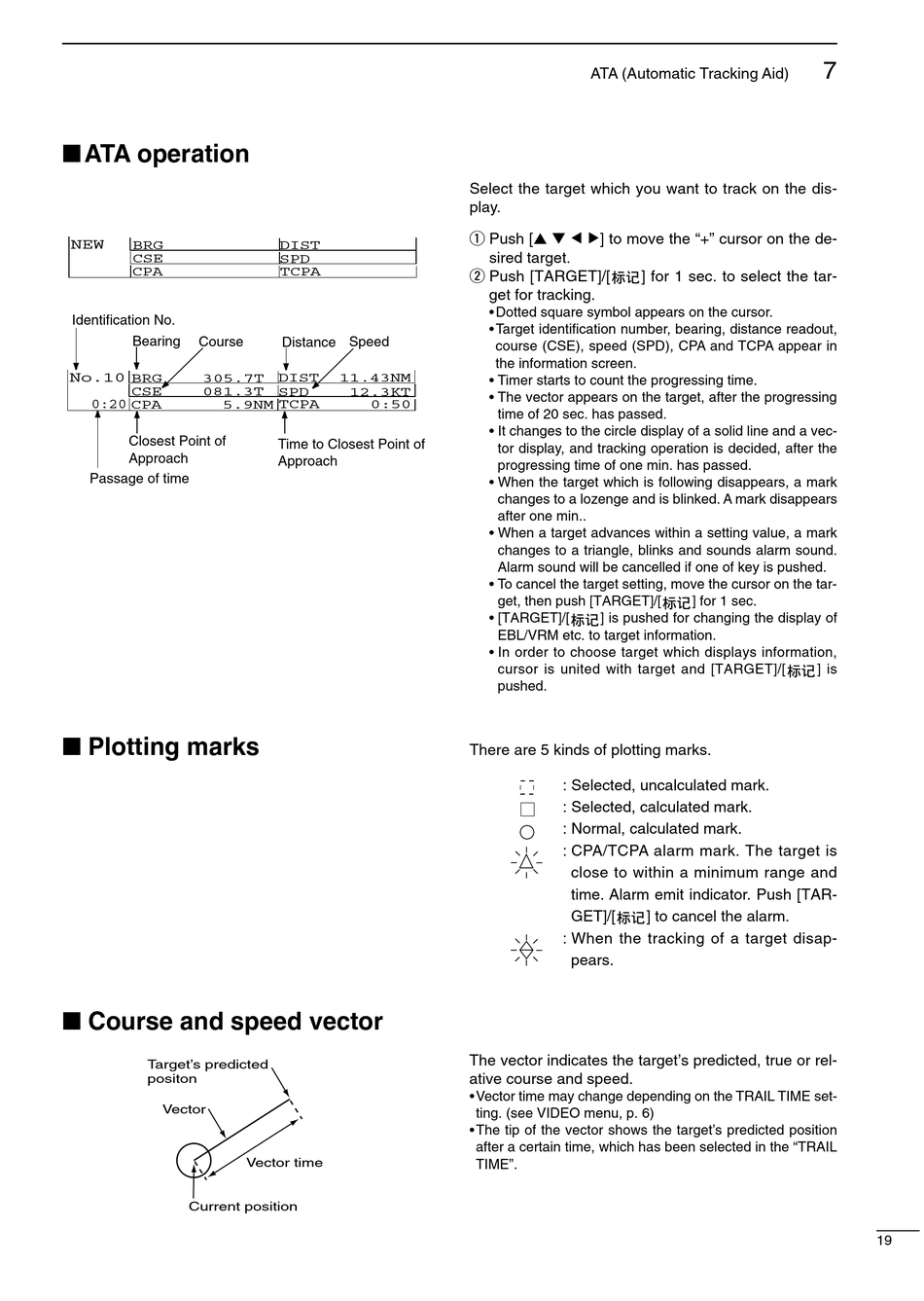

I ATA operation

NEW
BRG
CSE
CPA
Identification No.
Bearing Course
No.10
BRG 305.7T
CSE 081.3T
0:20
CPA 5.9NM
Closest Point of
Approach
Passage of time

I Plotting marks

I Course and speed vector

Target's predicted
positon
Vector
Current position
DIST
SPD
TCPA
Distance Speed
DIST 11.43NM
SPD 12.3KT
TCPA 0:50
Time to Closest Point of
Approach
Vector time
ATA (Automatic Tracking Aid)
Select the target which you want to track on the dis-
play.
q Push [
to move the "+" cursor on the de-
sired target.
w Push [
[ ] for 1 sec. to select the tar-
get for tracking.
• Dotted square symbol appears on the cursor.
• Target identification number, bearing, distance readout,
course (CSE), speed (SPD), CPA and TCPA appear in
the information screen.
• Timer starts to count the progressing time.
• The vector appears on the target, after the progressing
time of 20 sec. has passed.
• It changes to the circle display of a solid line and a vec-
tor display, and tracking operation is decided, after the
progressing time of one min. has passed.
• When the target which is following disappears, a mark
changes to a lozenge and is blinked. A mark disappears
after one min..
• When a target advances within a setting value, a mark
changes to a triangle, blinks and sounds alarm sound.
Alarm sound will be cancelled if one of key is pushed.
• To cancel the target setting, move the cursor on the tar-
get, then push [
• [ [ ] is pushed for changing the display of
EBL/VRM etc. to target information.
• In order to choose target which displays information,
cursor is united with target and [
pushed.
There are 5 kinds of plotting marks.
: Selected, uncalculated mark.
: Selected, calculated mark.
: Normal, calculated mark.
: CPA/TCPA alarm mark. The target is
close to within a minimum range and
time. Alarm emit indicator. Push [
[
: When the tracking of a target disap-
pears.
The vector indicates the target's predicted, true or rel-
ative course and speed.
• Vector time may change depending on the TRAIL TIME set-
ting. (see VIDEO menu, p. 6)
• The tip of the vector shows the target's predicted position
after a certain time, which has been selected in the "TRAIL
TIME".
[ ] for 1 sec.
[ ] is
] to cancel the alarm.
7
19
