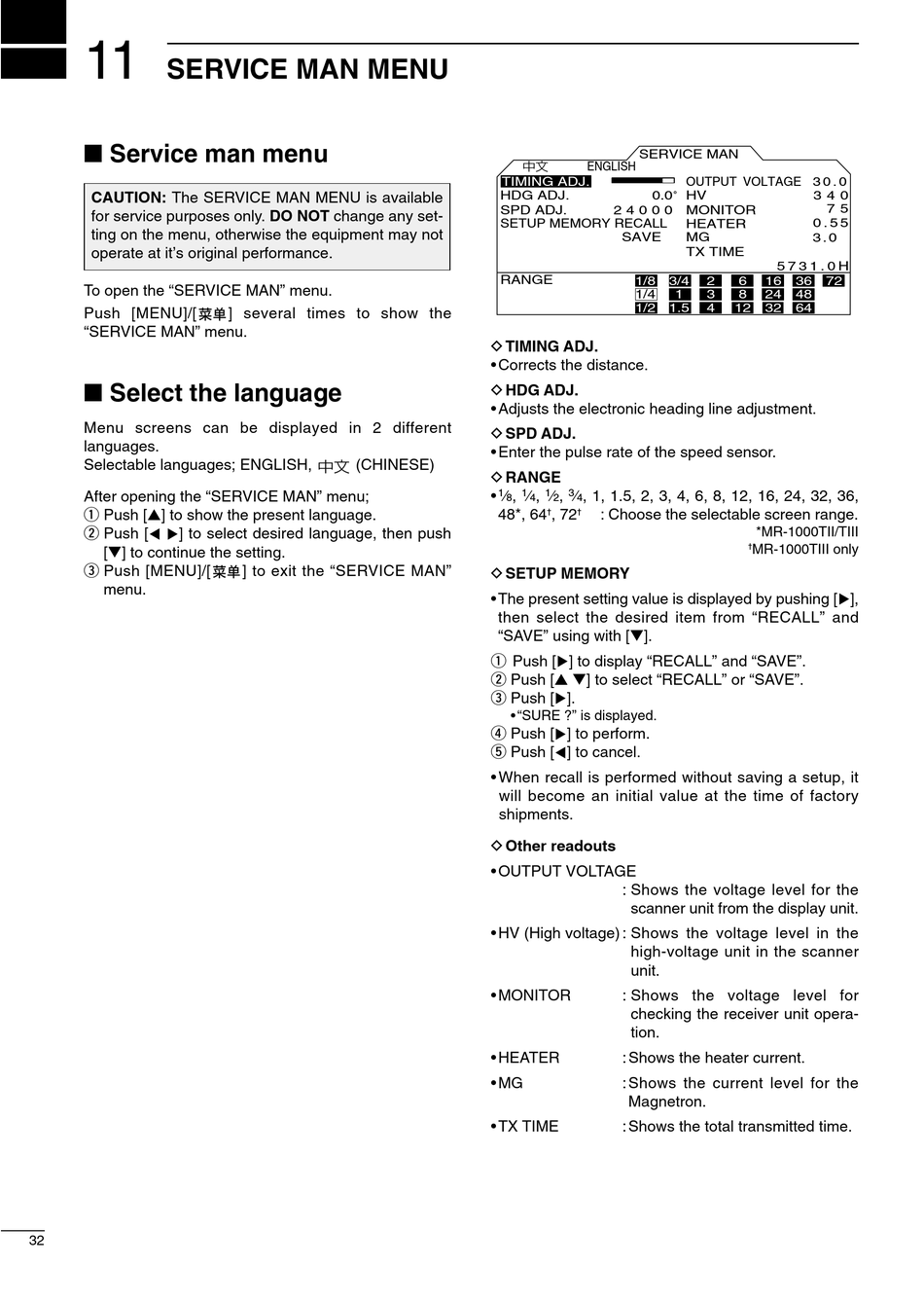

SERVICE MAN MENU
I Service man menu
CAUTION: The SERVICE MAN MENU is available
for service purposes only. DO NOT change any set-
ting on the menu, otherwise the equipment may not
operate at it's original performance.
To open the "SERVICE MAN" menu.
Push [MENU]/[
"SERVICE MAN" menu.
I Select the language
Menu screens can be displayed in 2 different
languages.
Selectable languages; ENGLISH,
After opening the "SERVICE MAN" menu;
q Push [ ] to show the present language.
w Push [
[
e
[MENU]/[
menu.
32
] several times to show the
(CHINESE)
]
"SERVICE MAN"
SERVICE MAN
ENGLISH
TIMING ADJ.
HDG ADJ.
0.0
SPD ADJ.
2 4 0 0 0
SETUP MEMORY RECALL
SAVE
RANGE
1/8
1/4
1/2
D TIMING ADJ.
• Corrects the distance.
D HDG ADJ.
• Adjusts the electronic heading line adjustment.
D SPD ADJ.
• Enter the pulse rate of the speed sensor.
D RANGE
1
1
1
3
•
⁄
,
⁄
,
⁄
,
⁄
, 1, 1.5, 2, 3, 4, 6, 8, 12, 16, 24, 32, 36,
8
4
2
4
48*, 64
†
, 72
†
: Choose the selectable screen range.
D SETUP MEMORY
• The present setting value is displayed by pushing [ ],
then select the desired item from "RECALL" and
"SAVE" using with [ ].
q Push [ ] to display "RECALL" and "SAVE".
w Push [
] to select "RECALL" or "SAVE".
e Push [ ].
• "SURE ?" is displayed.
r Push [
to perform
t Push
to cancel.
• When recall is performed without saving a setup, it
will become an initial value at the time of factory
shipments.
D Other readouts
• OUTPUT VOLTAGE
: Shows the voltage level for the
scanner unit from the display unit.
• HV (High voltage) : Shows the voltage level in the
high-voltage unit in the scanner
unit.
• MONITOR
: Shows the voltage level for
checking the receiver unit opera-
tion.
• HEATER
: Shows the heater current.
• MG
: Shows the current level for the
Magnetron.
• TX TIME
: Shows the total transmitted time.
OUTPUT
VOLTAGE
3 0 . 0
HV
3 4 0
˚
7 5
MONITOR
0 . 5 5
HEATER
MG
3 . 0
TX TIME
5 7 3 1 . 0 H
3/4
2
6
16
36
72
1
3
8
24
48
1.5
4
12
32
64
*MR-1000TII/TIII
†
MR-1000TIII only
