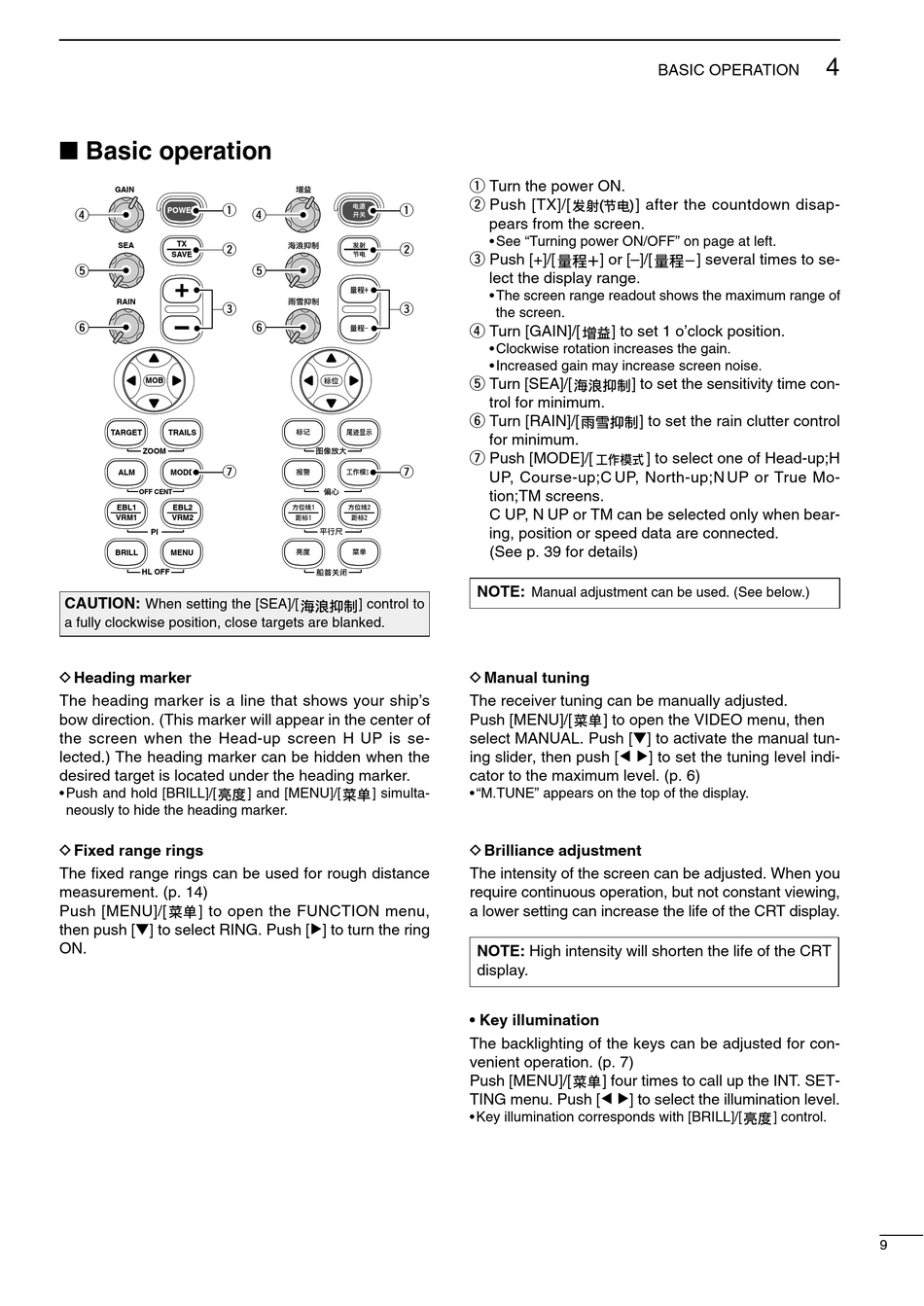

I Basic operation
GAIN
q
r
POWER
TX
SEA
w
SAVE
t
+
RAIN
e
-
y
MOB
TARGET
TRAILS
ZOOM
u
ALM
MODE
OFF CENT
EBL1
EBL2
VRM1
VRM2
PI
BRILL
MENU
HL OFF
CAUTION:
When setting the [SEA]/[
a fully clockwise position, close targets are blanked.
D Heading marker
The heading marker is a line that shows your ship's
bow direction. (This marker will appear in the center of
the screen when the Head-up screen H UP is se-
lected.) The heading marker can be hidden when the
desired target is located under the heading marker.
• Push and hold [BRILL]/[
neously to hide the heading marker.
D Fixed range rings
The fixed range rings can be used for rough distance
measurement. (p. 14)
Push [MENU]/[
] to open the FUNCTION menu,
then push [
to select RING. Push [
ON.
q
r
w
t
e
y
u
] control to
] and [MENU]/[
] simulta-
to turn the ring
q Turn the power ON.
w Push [TX]/[
] after the countdown disap-
pears from the screen.
• See "Turning power ON/OFF" on page at left.
e Push [+]/[
] or [–]/[
lect the display range.
• The screen range readout shows the maximum range of
the screen.
r Turn [GAIN]/[
] to set 1 o'clock position.
• Clockwise rotation increases the gain.
• Increased gain may increase screen noise.
t Turn [SEA]/[
] to set the sensitivity time con-
trol for minimum.
y Turn [RAIN]/[
] to set the rain clutter control
for minimum.
u Push [MODE]/[
UP, Course-up;C UP, North-up;N UP or True Mo-
tion;TM screens.
C UP, N UP or TM can be selected only when bear-
ing, position or speed data are connected.
(See p. 39 for details)
NOTE:
Manual adjustment can be used. (See below.)
D Manual tuning
The receiver tuning can be manually adjusted.
Push [MENU]/[
] to open the VIDEO menu, then
select MANUAL. Push [
[
cator to the maximum level. (p. 6)
• "M.TUNE" appears on the top of the display.
D Brilliance adjustment
The intensity of the screen can be adjusted. When you
require continuous operation, but not constant viewing,
a lower setting can increase the life of the CRT display.
NOTE: High intensity will shorten the life of the CRT
display.
• Key illumination
The backlighting of the keys can be adjusted for con-
venient operation. (p. 7)
Push [MENU]/[
] four times to call up the INT. SET-
TING menu. Push [
to select the illumination level.
• Key illumination corresponds with [BRILL]/[
BASIC OPERATION
] several times to se-
] to select one of Head-up;H
to set the tuning level indi-
] control.
4
9
