9
INSTALLATION AND CONNECTIONS

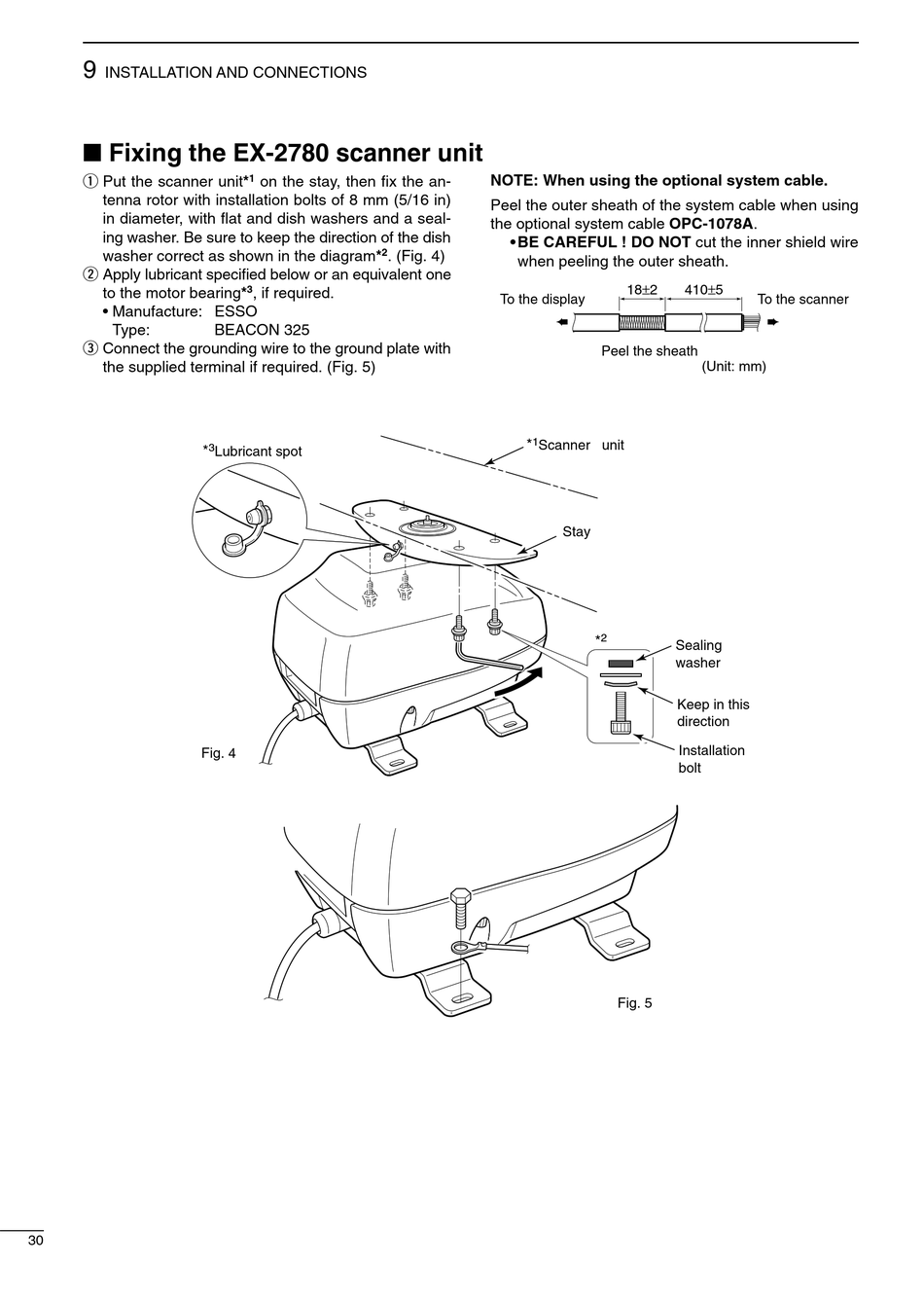

I Fixing the EX-2780 scanner unit

q Put the scanner unit*
tenna rotor with installation bolts of 8 mm (5/16 in)
in diameter, with flat and dish washers and a seal-
ing washer. Be sure to keep the direction of the dish
washer correct as shown in the diagram*
w Apply lubricant specified below or an equivalent one
to the motor bearing*
• Manufacture: ESSO
Type:
e Connect the grounding wire to the ground plate with
the supplied terminal if required. (Fig. 5)
Fig. 4
30
1
on the stay, then fix the an-
3
, if required.
BEACON 325
3
*
Lubricant spot
NOTE: When using the optional system cable.
Peel the outer sheath of the system cable when using
the optional system cable OPC-1078A.
• BE CAREFUL ! DO NOT cut the inner shield wire
2
. (Fig. 4)
when peeling the outer sheath.
To the display
➨
1
*
Scanner unit
18±2 410±5
Peel the sheath
(Unit: mm)
Stay
2
*
Sealing
washer
Keep in this
direction
Installation
bolt
Fig. 5
To the scanner
➨
