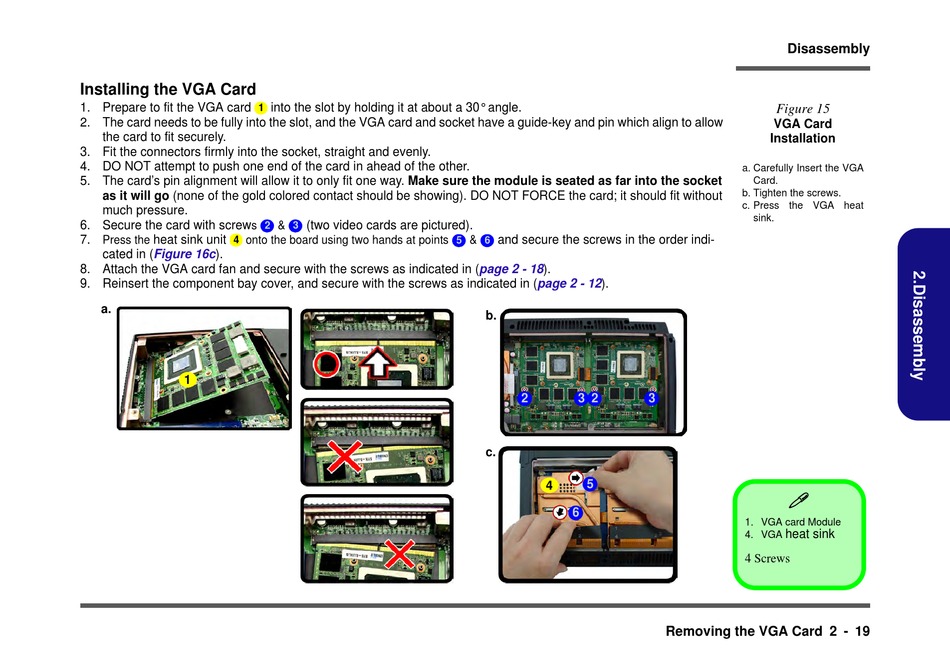

Installing the VGA Card

1. Prepare to fit the VGA card
1
2. The card needs to be fully into the slot, and the VGA card and socket have a guide-key and pin which align to allow
the card to fit securely.
3. Fit the connectors firmly into the socket, straight and evenly.
4. DO NOT attempt to push one end of the card in ahead of the other.
5. The card's pin alignment will allow it to only fit one way. Make sure the module is seated as far into the socket
as it will go (none of the gold colored contact should be showing). DO NOT FORCE the card; it should fit without
much pressure.
6. Secure the card with screw s
7. heat sink unit
Press the 4 onto the board using two hands at points
cated in (Figure 16c).
8. Attach the VGA card fan and secure with the screws as indicated in
9. Reinsert the component bay cover, and secure with the screws as indicated in
a.
1
into the slot by holding it at about a 30° angle.
& (two video cards are pictured).
2 3
and secure the screws in the order indi-
&
5 6
(page 2 - 18).
(page 2 - 12).
b.
2 3 2
c.
5
4
6
Disassembly
Figure 15
VGA Card
Installation
a. Carefully Insert the VGA
Card.
b. Tighten the screws.
c. Press the VGA heat
sink.
3

1. VGA card Module
heat sink
4. VGA
4 Screws
Removing the VGA Card 2 - 19
